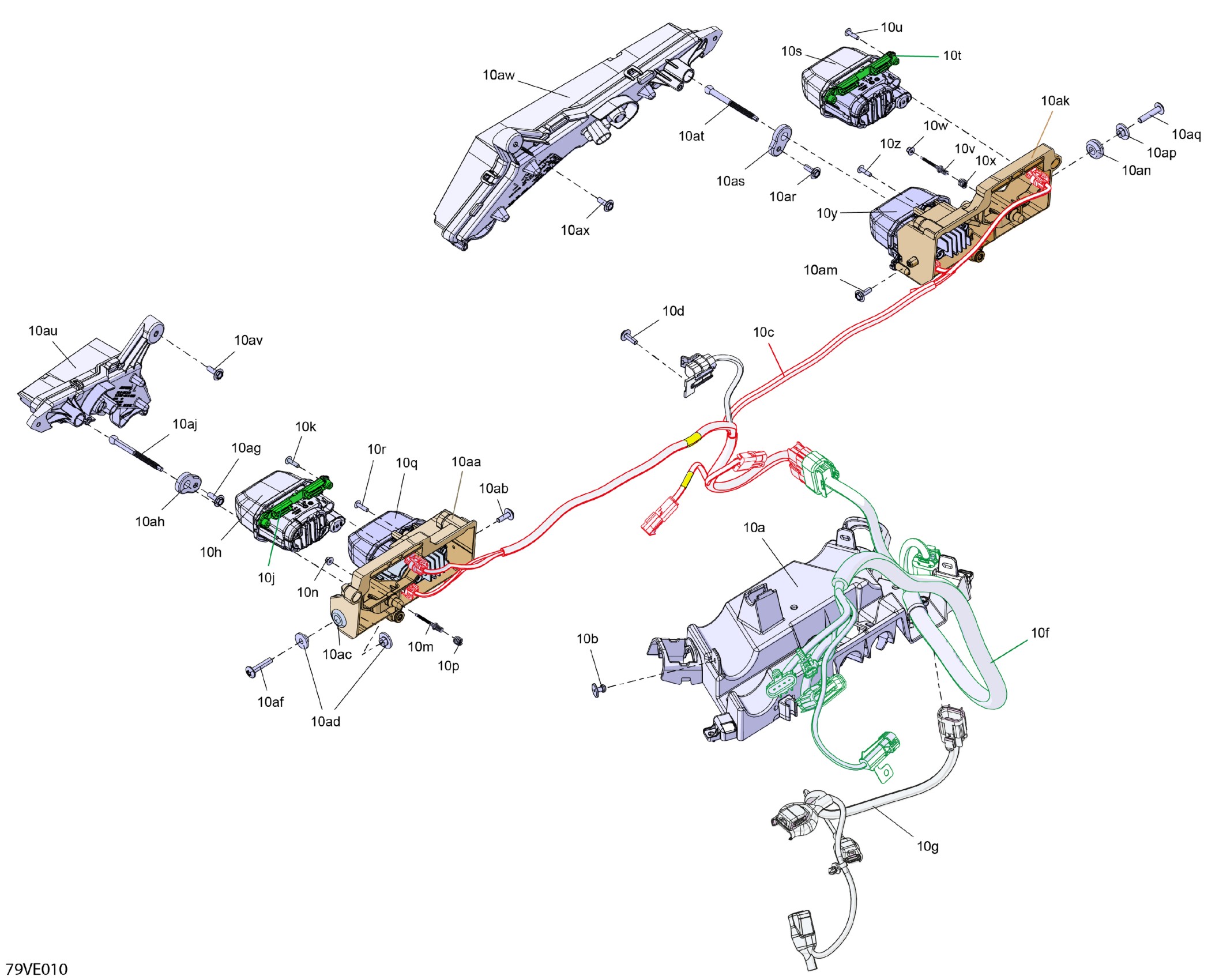

Can-Am North America - Maverick R MAX - 996NT2 - X - 8HSC - Timeless Black Metallic - 77" Width CALI, 2025 08- Electric - Front Section Diagram

Description

Price

10a

Multi Porpuse Support

710007813

$19.99

10b

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

10c

Headlight Wiring Harness

710008962

$119.99

10d

Screw PT Type K-50 X 16

250000959

$2.11

10f

Junction Wiring Harness

710009626

$119.99

10g

Differential Wiring Harness

710007357

$48.99

10h

Low Beam Light

710008089

$129.99

10j

Support Pivot | Not Shown

517309049

$2.79

10k

Torx-Truss Pt K40 X 16

250000759

$2.11

10m

Threaded Rod | Not Shown

517309133

$7.55

10n

Specialized Nut | Not Shown

517309134

$1.01

10p

Compression Spring | Not Shown

517309058

$7.41

10q

High Beam Light

710006911

$129.99

10r

Torx-Truss Pt K40 X 16

250000759

$2.11

10s

Low Beam Light

710008089

$129.99

10t

Support Pivot | Not Shown

517309049

$2.79

10u

Torx-Truss Pt K40 X 16

250000759

$2.11

10v

Threaded Rod | Not Shown

517309133

$7.55

10w

Specialized Nut | Not Shown

517309134

$1.01

10x

Compression Spring | Not Shown

517309058

$7.41

10y

High Beam Light

710006911

$129.99

10z

Torx-Truss Pt K40 X 16

250000759

$2.11

10aa

LH Front Headlight Support

708500087

$47.99

10ab

Screw PT Type K-50 X 16

250000959

$2.11

10ac

Overmolded Grommet

293720130

$4.69

10ad

Shoulder Bushing

710004749

$2.69

10af

Stainless, Torx Screw M6 X 30

250000842

$2.11

10ag

Screw PT Type K-50 X 16

250000959

$2.11

10ah

Ball Socket

293900157

$9.59

10aj

Ajustment Screw

710005837

$6.35

10ak

RH Front Headlight Support

708500088

$47.99

10am

Screw PT Type K-50 X 16

250000959

$2.11

10an

Overmolded Grommet

293720130

$4.69

10ap

Shoulder Bushing

710004749

$2.69

10aq

Stainless, Torx Screw M6 X 30

250000842

$2.11

10ar

Screw PT Type K-50 X 16

250000959

$2.11

10as

Ball Socket

293900157

$9.59

10at

Ajustment Screw

710005837

$6.35

10au

LH Auxiliary LED Light

710007638

$459.99

10av

Screw PT Type K-50 X 16

250000959

$2.11

10aw

RH Auxiliary LED Light

710007644

$459.99

10ax

Screw PT Type K-50 X 16

250000959

$2.11
