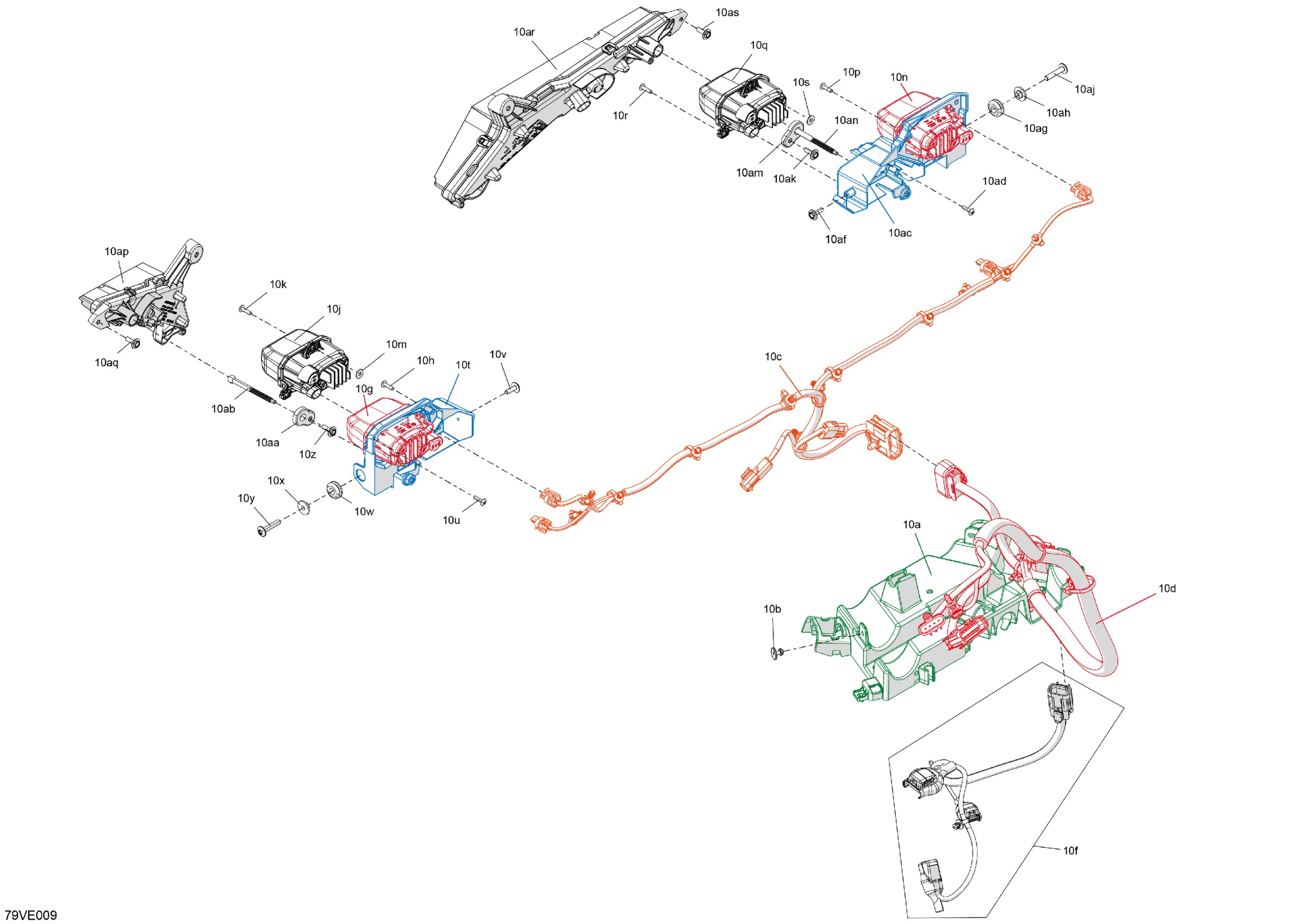

Can-Am North America - Maverick R - 996NT - X - 8GSK - Legion Red - 77" Width, 2025 08- Electric - Front Section Diagram

Description

Price

10a

Multi Porpuse Support

710007813

$19.99

10b

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

10c

Headlight Wiring Harness

710007725

$97.99

10d

Junction Wiring Harness

710008192

$119.99

10f

Differential Wiring Harness

710007357

$48.99

10g

Low Beam Light

710008089

$129.99

10h

Torx-Truss Pt K40 X 16

250000759

$2.11

10j

High Beam Light

710006911

$129.99

10k

Torx-Truss Pt K40 X 16

250000759

$2.11

10m

Washer Cal

517309027

$6.09

10n

Low Beam Light

710008089

$129.99

10p

Torx-Truss Pt K40 X 16

250000759

$2.11

10q

High Beam Light

710006911

$129.99

10r

Torx-Truss Pt K40 X 16

250000759

$2.11

10s

Washer Cal

517309027

$6.09

10t

LH Front Headlight Support

708500013

$47.99

10u

Torx-Truss Pt K40 X 16

250000759

$2.11

10v

Screw PT Type K-50 X 16

250000959

$2.11

10w

Overmolded Grommet

293720130

$4.69

10x

Shoulder Bushing

710004749

$2.69

10y

Stainless, Torx Screw M6 X 30

250000842

$2.11

10z

Screw PT Type K-50 X 16

250000959

$2.11

10aa

Ball Socket

293900157

$9.59

10ab

Ajustment Screw

710005837

$6.35

10ac

RH Front Headlight Support

708500014

$47.99

10ad

Torx-Truss Pt K40 X 16

250000759

$2.11

10af

Screw PT Type K-50 X 16

250000959

$2.11

10ag

Overmolded Grommet

293720130

$4.69

10ah

Shoulder Bushing

710004749

$2.69

10aj

Stainless, Torx Screw M6 X 30

250000842

$2.11

10ak

Screw PT Type K-50 X 16

250000959

$2.11

10am

Ball Socket

293900157

$9.59

10an

Ajustment Screw

710005837

$6.35

10ap

LH Auxiliary LED Light

710007638

$459.99

10aq

Screw PT Type K-50 X 16

250000959

$2.11

10ar

RH Auxiliary LED Light

710007644

$459.99

10as

Screw PT Type K-50 X 16

250000959

$2.11
