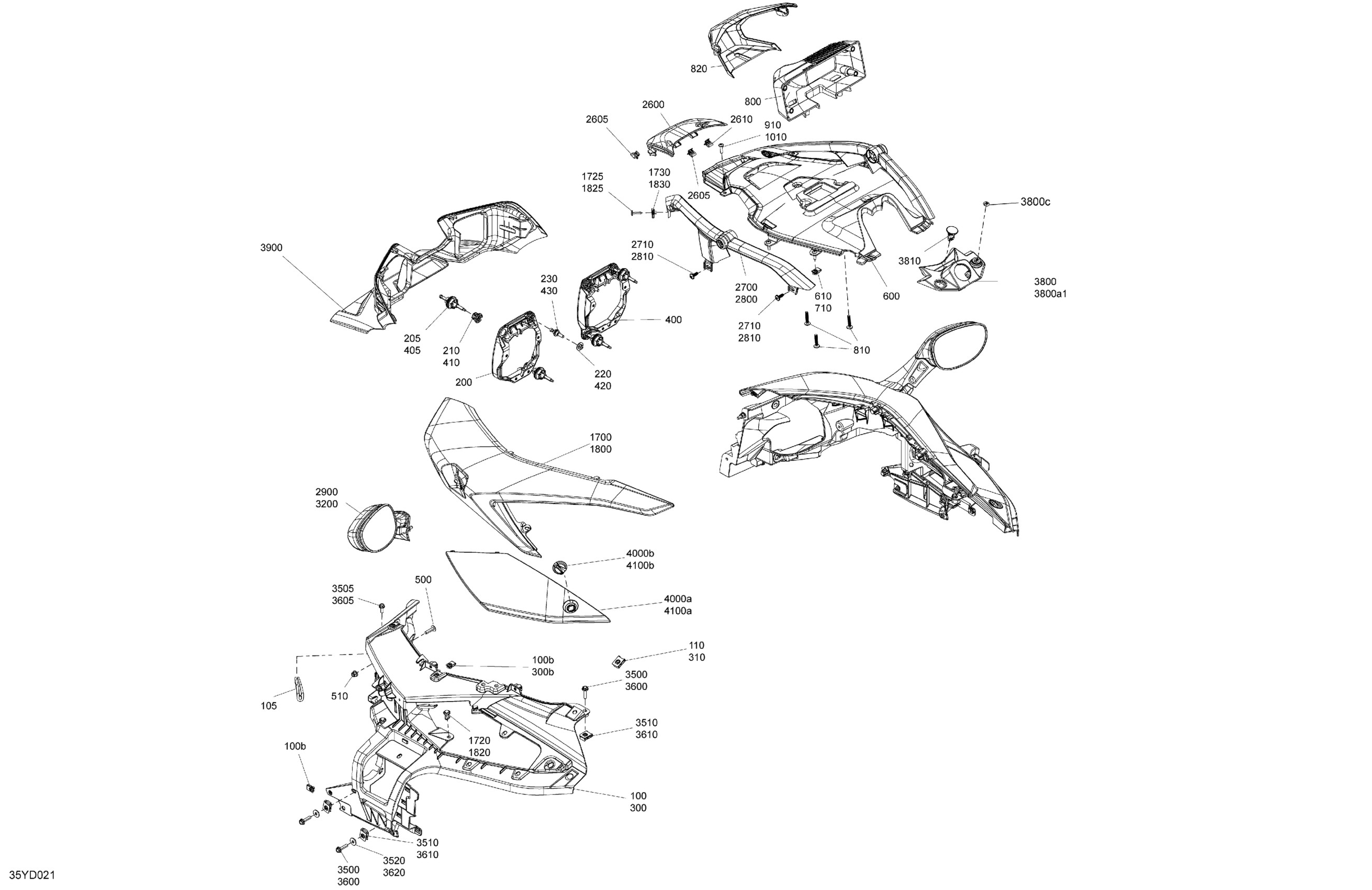

Can-Am China - F3 SPORT - E6RE- SPORT - Monolith Black, 2024 07- Body - Console Diagram

#

Description
Price

100

LH Console Support Ass'y | Includes 100 to 100b

708400730

$99.99

100b

Panel Nut M5 X 0.8

250000958

$4.23

105

Trim 1000Mm Long

219704354

$15.99

110

Panel Nut M6 X 1.0

250100208

$1.46

200

LH Front Headlight Support

708400748

$5.99

205

Adjuster

708400814

$10.99

210

Retaining Ring

708400823

Unavailable

220

Large Shoulder Nut M6

705014119

$6.14

230

Ball Stud

705018616

$19.49

300

RH Console Support Ass'y | Includes 300 to 300b

708400731

$109.99

300b

Panel Nut M5 X 0.8

250000958

$4.23

310

Panel Nut M6 X 1.0

250100208

$1.46

400

RH Front Headlight Support

708400749

$5.99

405

Adjuster

708400814

$10.99

410

Retaining Ring

708400823

Unavailable

420

Large Shoulder Nut M6

705014119

$6.14

430

Ball Stud

705018616

$19.49

500

Torx Screw M6 X 25

250000758

$2.11

510

Hex. Flange Elastic Nut M6

233261494

$1.58

600

Upper Fairing

708400743

$33.99

610

Panel Nut M5 X 0.8

250000958

$4.23

710

Panel Nut M5 X 0.8

250000958

$4.23

800

Gauge Support

708400755

$20.99

810

Screw PT K60 X 30

250000949

$2.11

820

Support Trim

708400758

$43.99

910

Torx Screw M5 X 20

250000724

$1.69

1010

Torx Screw M5 X 20

250000724

$1.69

1700

Deep Black, LH Console Fairing

708400958

$224.99

1720

Tuflok Plastic Rivet

293150230

$1.47

1725

Torx Screw M5 X 20

250000724

$1.69

1730

Panel Nut M5 X 0.8

250000958

$4.23

1800

Deep Black, RH Console Fairing

708400959

$224.99

1820

Tuflok Plastic Rivet

293150230

$1.47

1825

Torx Screw M5 X 20

250000724

$1.69

1830

Panel Nut M5 X 0.8

250000958

$4.23

2600

Deep Black, Front Fairing

708400826

$229.99

2605

Edge Clip

517302785

$0.88

2610

Edge Clip

517302785

$0.88

2700

LH Cross Member

708400741

$28.99

2710

Oval Head Torx Screw K60 X 16

250000546

$2.11

2800

RH Cross Member

708400742

$28.99

2810

Oval Head Torx Screw K60 X 16

250000546

$2.11

2900

LH Housing Rear View Mirror Ass'y

705015049

$274.99

3200

RH Housing Rear View Mirror Ass'y

705015050

$274.99

3500

Hex. Flange Screw M6 X 25

250000793

$2.11

3505

Hex. Flange Screw M6 X 16

210261650

$1.67

3510

Panel Nut M6 X 1.0

250100208

$1.46

3520

Flat washer M6

250200164

$1.01

3600

Hex. Flange Screw M6 X 25

250000793

$2.11

3605

Hex. Flange Screw M6 X 16

210261650

$1.67

3610

Panel Nut M6 X 1.0

250100208

$1.46

3620

Flat washer M6

250200164

$1.01

3800

Switch Trim Ass'y | Includes 3800 to 3800c

708400863

$104.99

3800a1

Switch Bezel

708400205

$14.67

3800c

Rear Fog Light Decal

704908774

$47.99

3810

Switch Plug

708400866

$3.69

3900

Front Access Cover

705017970

$33.99

4000a

Black Polycarbonate, LH Acces Panel

708400238

$22.99

4000b

Cover Latch Quarter Turn

708400065

$2.79

4100a

Black Polycarbonate, RH Acces Panel

708400239

$22.99

4100b

Cover Latch Quarter Turn

708400065

$2.79
