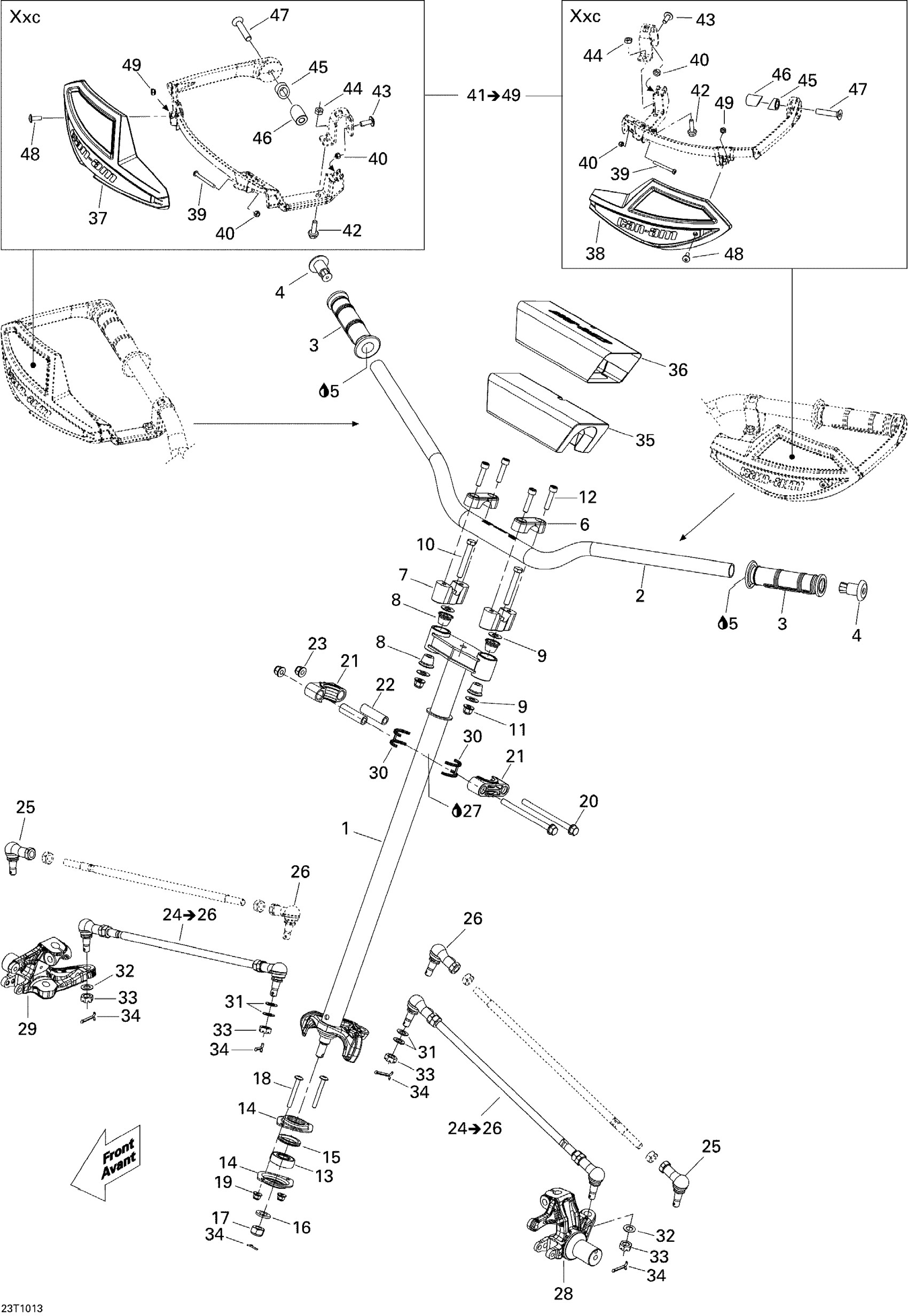

Can-Am DS 450 Xxc, Xmx EFI, 2010 07- Steering Diagram

#

Description
Price

1

PAINT COLUMN - Call your local BRP dealership

709401645

Unavailable

2

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

3

Handle Grip

709400493

$14.83

4

END PIECE - Call your local BRP dealership

709400627

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Support

709400496

$22.49

7

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

Unavailable

8

DAMPER BUSHING - Call your local BRP dealership

293830131

Unavailable

9

Washer

506152194

$4.55

10

Screw Hex. M10 X 70

250001024

$2.11

11

Elastic Flange Nut M10

232501416

$1.48

12

Socket Head Screw

205083534

$2.11

13

Ball Bearing

709400439

$19.49

14

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

15

Seal

293250177

$7.29

16

Flat Washer

234021430

$2.11

17

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

18

Torx Screw M6 X 50

250000317

$2.11

19

Flange Elastic Nut M6

233261434

$4.44

20

Hex. Flange Screw M8 X 110

230681034

$4.44

21

Half Bushing

709400471

$14.30

22

BUSHING - Call your local BRP dealership

709400072

Unavailable

23

Hex. Flange Elastic Nut M8

233281434

$2.11

24

TIE ROD ASS'Y - Call your local BRP dealership | Includes 25 to 27, Xmx

709400673

Unavailable

24

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

25

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

27

Synthetic Grease, 400 G

293550010

Unavailable

28

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

29

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

30

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

31

Flat Washer

250200084

$3.38

32

Flat Washer

250200084

$3.38

33

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

34

Cotter Pin

250400034

$2.11

35

Foam

709400422

$17.49

36

Cover

709400423

$33.99

37

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

38

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

39

Socket Head Screw M4 X 40 | X

205444086

$1.69

40

Elastic Stop Nut M4

232541414

$0.58

41

Air Deflector Support Kit | X

715001378

$138.49

42

Hex. Flange Screw M6 X 20

207662044

$2.00

43

Torx Screw M6 X 16

250000223

$2.11

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Small Bracket | DS 650 X

709400161

$21.99

46

Large Bracket | DS 650 X

709400162

$20.99

47

Socket Head Screw | X

205384034

$6.49

48

Torx Screw M5 X 14

250000742

$1.47

49

Hex. Elastic Nut M5 | X

232551600

$1.15
