Description

Price

1

Torx Flange Screw M6 X 25

420641238

$3.27

2

Seal Washer

420230415

$1.79

3

Water Pump Cover

420611670

$86.99

4

Gasket

420431030

$7.90

5

Spring Pin

420229280

$5.29

6

Water Pump Impeller

420222272

$15.49

7

Oil Seal

420230197

$18.54

8

Oil Seal

420230195

$15.36

9

Ball Bearing

420232100

$20.99

10

Distance Sleeve

420229880

$13.24

11

Waterpump Shaft

420220171

$32.99

12

Thrust Washer

420227680

$12.18

13

INTERMEDIATE GEAR - Call your local BRP dealership

420434705

Unavailable

14

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

420434721

Unavailable

15

NEEDLE BEARING - Call your local BRP dealership

420832990

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420627292

Unavailable

17

BEARING PIN - Call your local BRP dealership

420229135

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

K

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

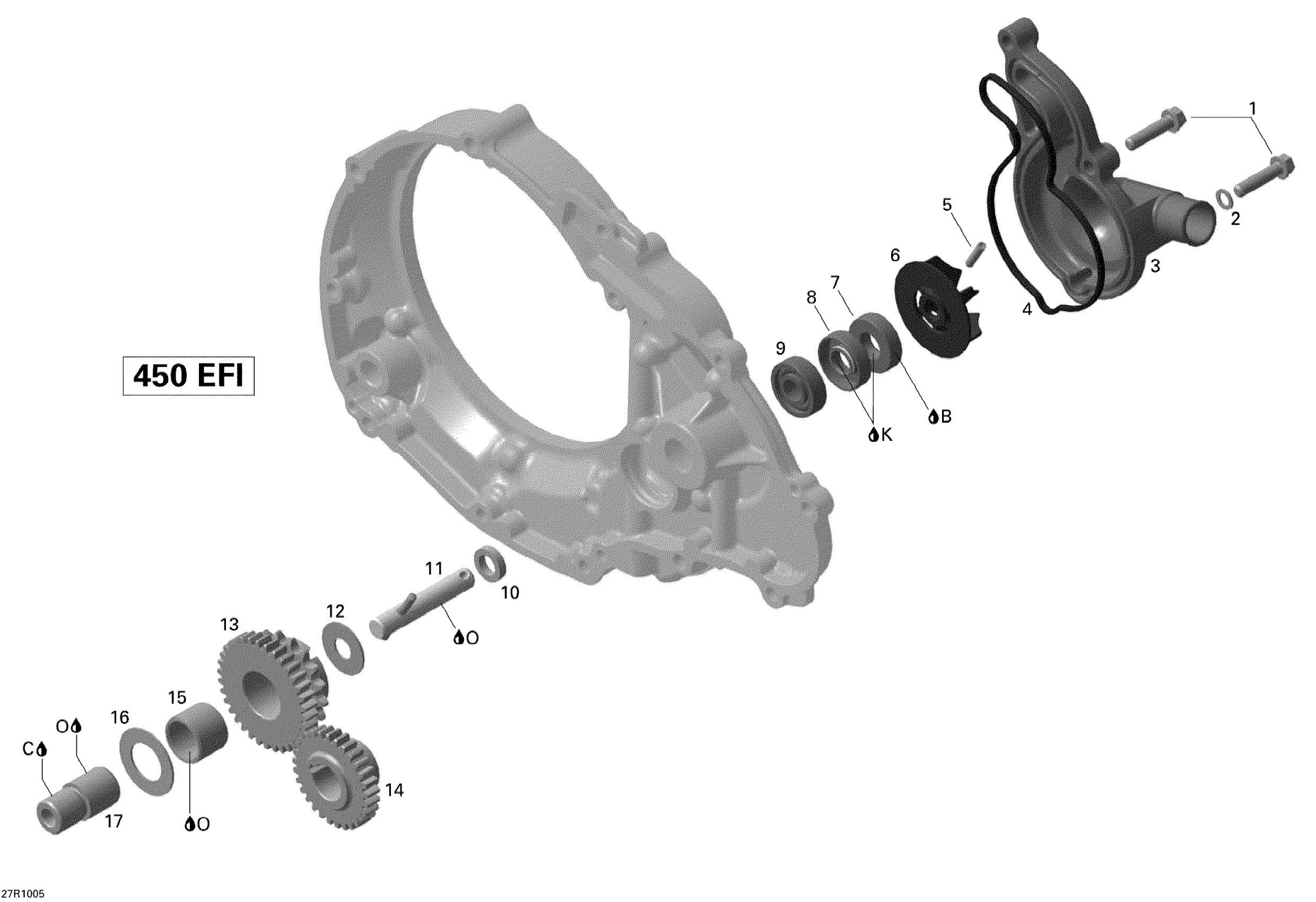

Can-Am DS 450 Xxc, Xmx EFI, 2010 01- Engine Cooling Diagram

Torx Flange Screw M6 X 25

Seal Washer

Water Pump Cover

Gasket

Spring Pin

Water Pump Impeller

Oil Seal

Oil Seal

Ball Bearing

Distance Sleeve

Waterpump Shaft

Thrust Washer

INTERMEDIATE GEAR - Call your local BRP dealership

CONTROL GEAR, 29 TEETH - Call your local BRP dealership

NEEDLE BEARING - Call your local BRP dealership

THRUST WASHER - Call your local BRP dealership

BEARING PIN - Call your local BRP dealership

Loctite 243, 10 ml

Sealant Loctite 648

Dow Corning 111, 150 g

Not Available As Spare Part - Friction Washer
