Description

Price

2500

Hydrib White Pearl, LH Front Door Panel

705018254

$214.99

2510

Deep Black, LH Front Door

705018468

$159.99

2520

Door Support

705011187

$12.99

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2552

Bushing | DS 650 X

293900104

$5.50

2570

LH Latch Cover

705013535

$39.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Truss Screw M6 X 16

250000721

$1.69

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2630

Flat Washer

224061121

$0.53

2640

Door Belt

293850129

$16.49

2650

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2800

Hydrib White Pearl, RH Front Door Panel

705018255

$214.99

2810

Deep Black, RH Front Door

705018470

$159.99

2820

Door Support

705011187

$12.99

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2852

Bushing | DS 650 X

293900104

$5.50

2870

RH Latch Cover

705013536

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Truss Screw M6 X 16

250000721

$1.69

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2930

Flat Washer

224061121

$0.53

2940

Door Belt

293850129

$16.49

2950

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4100

Deep Black, LH Interior Body Panel

705017548

$73.99

4105

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4200

Deep Black, RH Lower Body Panel

705017549

$73.99

4205

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4300

Legion Red, LH Rear Panel

705018237

$114.99

4305

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4400

Legion Red, RH Rear Panel

705018238

$119.99

4405

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

4410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

7300a1

LH Door Panels

705010271

$110.99

7300a2

Door Seal

705012018

$19.99

7300b1

RH Door Panels

705010272

$110.99

7300b2

Door Seal

705012018

$19.99

7300c

Deep Black, LH Door

705018161

$129.99

7300d

Deep Black, RH Door

705018162

$129.99

7300f1

Torx-Truss M/S M6 X 80

250000902

$2.79

7300f2

Hex. Flange Elastic Nut M6

233261494

$1.58

7300f3

Offset Washer

705202223

$4.14

7300f4

Torx Truss Screw M6 X 50

250000749

$3.17

7300f5

Stainless Steel Flat Washer

234062670

$2.11

8000

Black, LH Lateral Panel

705013015

$110.99

8010

Flat washer M6

250200164

$1.01

8020

Torx Truss Screw M6 X 25

250000807

$2.11

8030

Pop Rivet 3/16”

293150108

$1.19

8100

Black, RH Lateral Panel

705013016

$110.99

8110

Flat washer M6

250200164

$1.01

8120

Torx Truss Screw M6 X 25

250000807

$2.11

8130

Pop Rivet 3/16”

293150108

$1.19

8200

LH Frame

705018480

$229.99

8210

Panel Nut M6 X 1.0

250100198

$2.11

8220

Hex. Flange Screw M8 X 70

207687044

$7.41

8230

Saddle Washer

705205462

$5.40

8240

Elastic Flange Nut M8

233281464

$1.01

8300

RH Frame

705018478

$229.99

8310

Panel Nut M6 X 1.0

250100198

$2.11

8320

Hex. Flange Screw M8 X 70

207687044

$7.41

8330

Saddle Washer

705205462

$5.40

8340

Elastic Flange Nut M8

233281464

$1.01

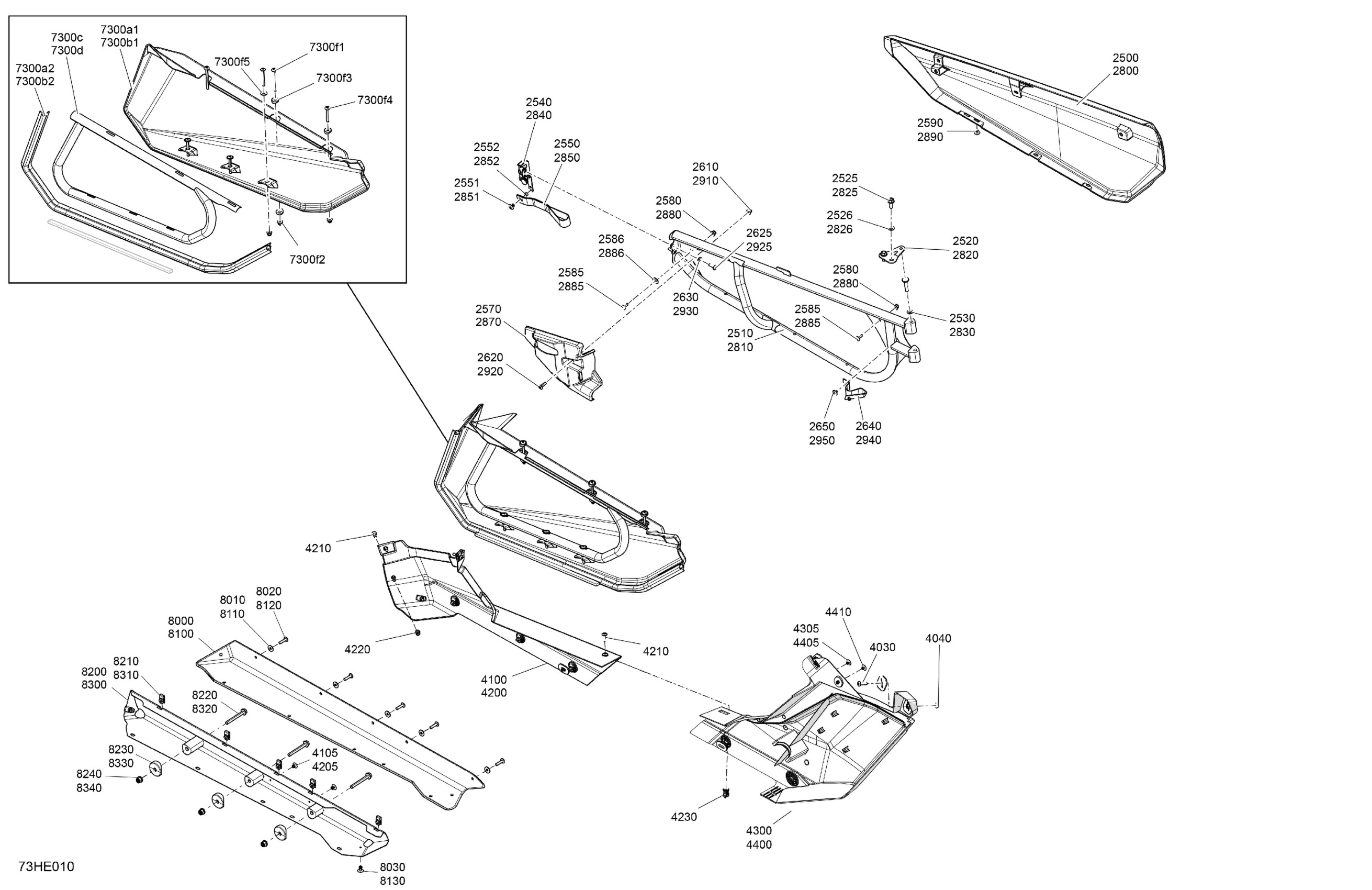

Can-Am North America - Maverick - TURBO RR - XRC - 9MSJ - Hybrid White Pearl - 72" Width CALI, 2025 07- Body - Doors Diagram

Hydrib White Pearl, LH Front Door Panel

Deep Black, LH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Black, Pop Rivet 3/16 X ,425

Bushing | DS 650 X

LH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Black, Pop Rivet 3/16 X ,425

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Torx Screw M6 X 20, Scotch Grip

Flat Washer

Door Belt

Black, Pop Rivet 3/16 X ,425

Hydrib White Pearl, RH Front Door Panel

Deep Black, RH Front Door

Door Support

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Black, Pop Rivet 3/16 X ,425

Bushing | DS 650 X

RH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Black, Pop Rivet 3/16 X ,425

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Torx Screw M6 X 20, Scotch Grip

Flat Washer

Door Belt

Black, Pop Rivet 3/16 X ,425

Torx Truss Screw M6 X 25

Panel Nut M6 X 1.0

Deep Black, LH Interior Body Panel

Black, Pop Rivet 3/16 X ,425

Deep Black, RH Lower Body Panel

Black, Pop Rivet 3/16 X ,425

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Insert

Legion Red, LH Rear Panel

Black, Pop Rivet 3/16 X ,425

Legion Red, RH Rear Panel

Black, Pop Rivet 3/16 X ,425

Black, Pop Rivet 3/16 X ,550

LH Door Panels

Door Seal

RH Door Panels

Door Seal

Deep Black, LH Door

Deep Black, RH Door

Torx-Truss M/S M6 X 80

Hex. Flange Elastic Nut M6

Offset Washer

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Black, LH Lateral Panel

Flat washer M6

Torx Truss Screw M6 X 25

Pop Rivet 3/16”

Black, RH Lateral Panel

Flat washer M6

Torx Truss Screw M6 X 25

Pop Rivet 3/16”

LH Frame

Panel Nut M6 X 1.0

Hex. Flange Screw M8 X 70

Saddle Washer
