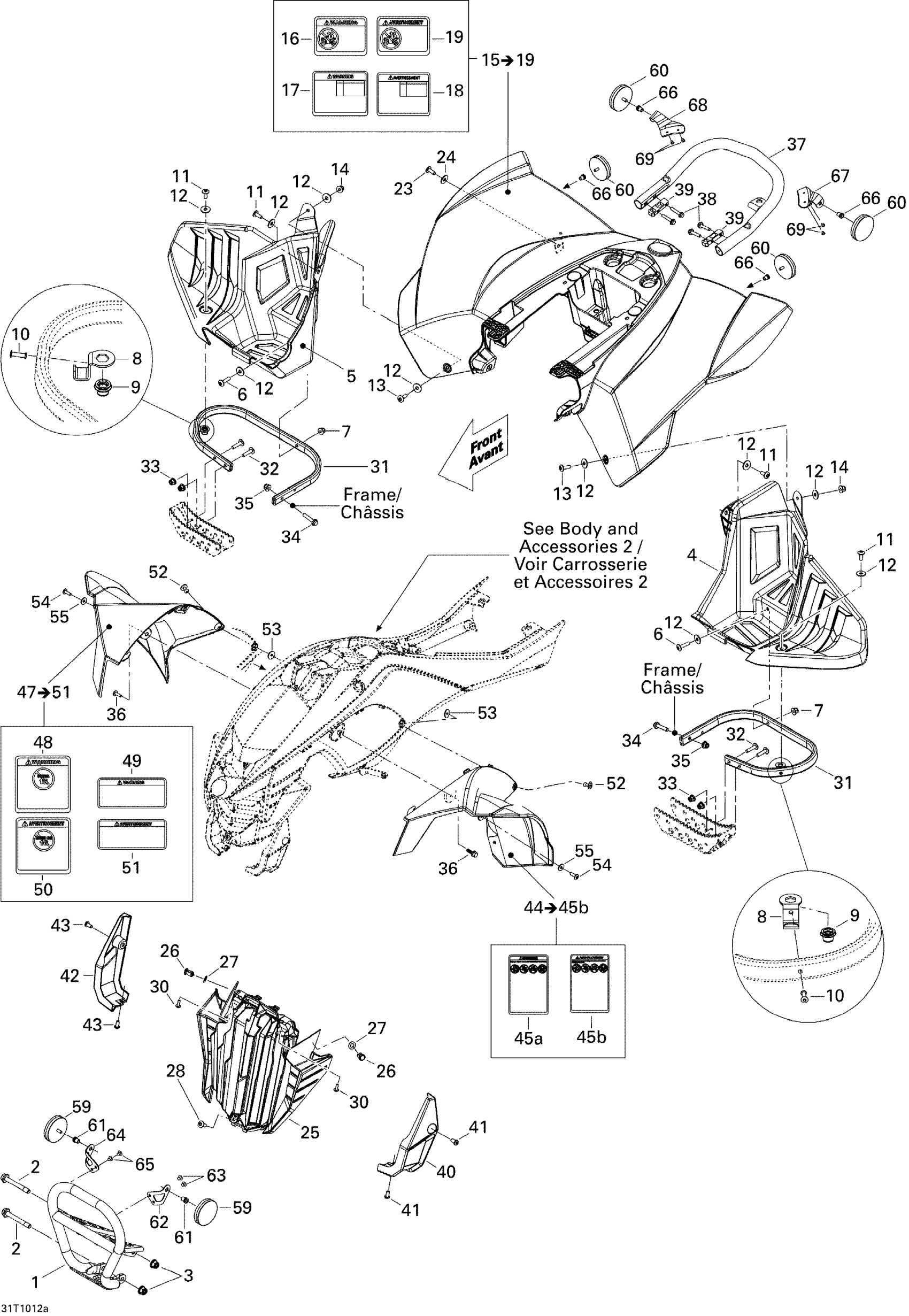

Can-Am DS 450 EFI, 2010 09- Body And Accessories 1 Diagram

#

Description
Price

1

FRONT BUMPER - Call your local BRP dealership

705002768

Unavailable

2

Hex Flange Screw M8 X 65, SCOTCH GRIP - Call your local BRP dealership

250000302

Unavailable

3

Hex. Flange Nut M8

233181434

$2.11

4

LH FOOT PROTECTOR - Call your local BRP dealership

705001745

Unavailable

5

RH FOOT PROTECTOR - Call your local BRP dealership

705001746

Unavailable

6

Torx Screw M6 x 25

250000284

$2.11

7

Elastic Stop Nut M6

232561434

$1.99

8

FOOT PROTECTOR BRACKET - Call your local BRP dealership

705002373

Unavailable

9

Threaded Insert M6 X 1.0

250100242

Unavailable

10

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

11

Torx Truss Screw M6 X 16

250000721

$1.69

12

Stainless Steel Flat Washer

234062670

$2.11

13

Torx Truss Screw M6 X 16

250000721

$1.69

14

Elastic Stop Nut M6

232561434

$1.99

15

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 15 to 19

715000570

Unavailable

15

Rear Fender Kit, Yellow | Includes 15 to 19

715001339

$204.99

16

WARNING DECAL, PASSENGER - Call your local BRP dealership

704900005

Unavailable

17

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704901365

Unavailable

18

Warning Decal Tire Pressure, French

704901395

Unavailable

19

Warning Decal, Passenger, French | French Version

704900006

Unavailable

23

Torx Screw M6 X 16

250000223

$2.11

24

Stainless Steel Flat Washer

234062670

$2.11

25

Radiator Protector Ass'y

705004009

$38.99

26

Tuflok Plastic Rivet

293150230

$1.47

27

Washer

506151252

$3.17

28

Torx Truss Screw M6 X 16

250000721

$1.69

30

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

31

FOOT PROTECTOR SUPPORT - Call your local BRP dealership

705002091

Unavailable

32

Hex. Socket Screw M6 X 20

250000770

$2.09

33

Elastic Stop Nut M6

232561434

$1.99

34

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

35

Flange Elastic Nut M6

233261434

$4.44

36

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

37

REAR BUMPER - Call your local BRP dealership

705002769

Unavailable

38

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

39

CLAMP - Call your local BRP dealership

705002913

Unavailable

40

LH RADIATOR MOULDING - Call your local BRP dealership

705002514

$19.49

41

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

42

RH RADIATOR MOULDING - Call your local BRP dealership

705002515

Unavailable

43

SOCKET SCREW M6 X 12 - Call your local BRP dealership

250000339

Unavailable

44

KIT FR. FENDER - Call your local BRP dealership | Includes 44 to 46, Yellow Model

715002375

Unavailable

45a

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership

704901878

Unavailable

45b

Warning Decal, Death And Injuries

704900002

Unavailable

47

RH FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 47 to 51, Yellow Model

715000567

Unavailable

48

Warning Decal, Under 16 Years Old

704900011

Unavailable

49

WARNING DECAL, PERFORMANCE - Call your local BRP dealership

704901133

Unavailable

50

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

51

Warning Decal, Performance, French

704901135

Unavailable

52

Pop Rivet 3/16"

293150123

$4.29

53

Washer

503191273

$1.35

54

Torx Screw M6 X 20

250000722

$1.68

55

Stainless Steel Flat Washer

234062670

$2.11

59

Amber Reflector | Except Europe Model

705011222

$14.49

60

Red Reflector

705011221

$14.49

61

Insert M5 X 0.8

293450268

$2.09

62

LH Reflector Support

705002859

Unavailable

63

Stavex Rivet

293150144

$0.82

64

RH Reflector Support

705002860

Unavailable

65

Stavex Rivet

293150144

$0.82

66

Insert M5 X 0.8

293450268

$2.09

67

LH SUPPORT - Call your local BRP dealership

705002911

Unavailable

68

RH SUPPORT - Call your local BRP dealership

705002912

Unavailable

69

Stavex Rivet

293150144

$0.82
