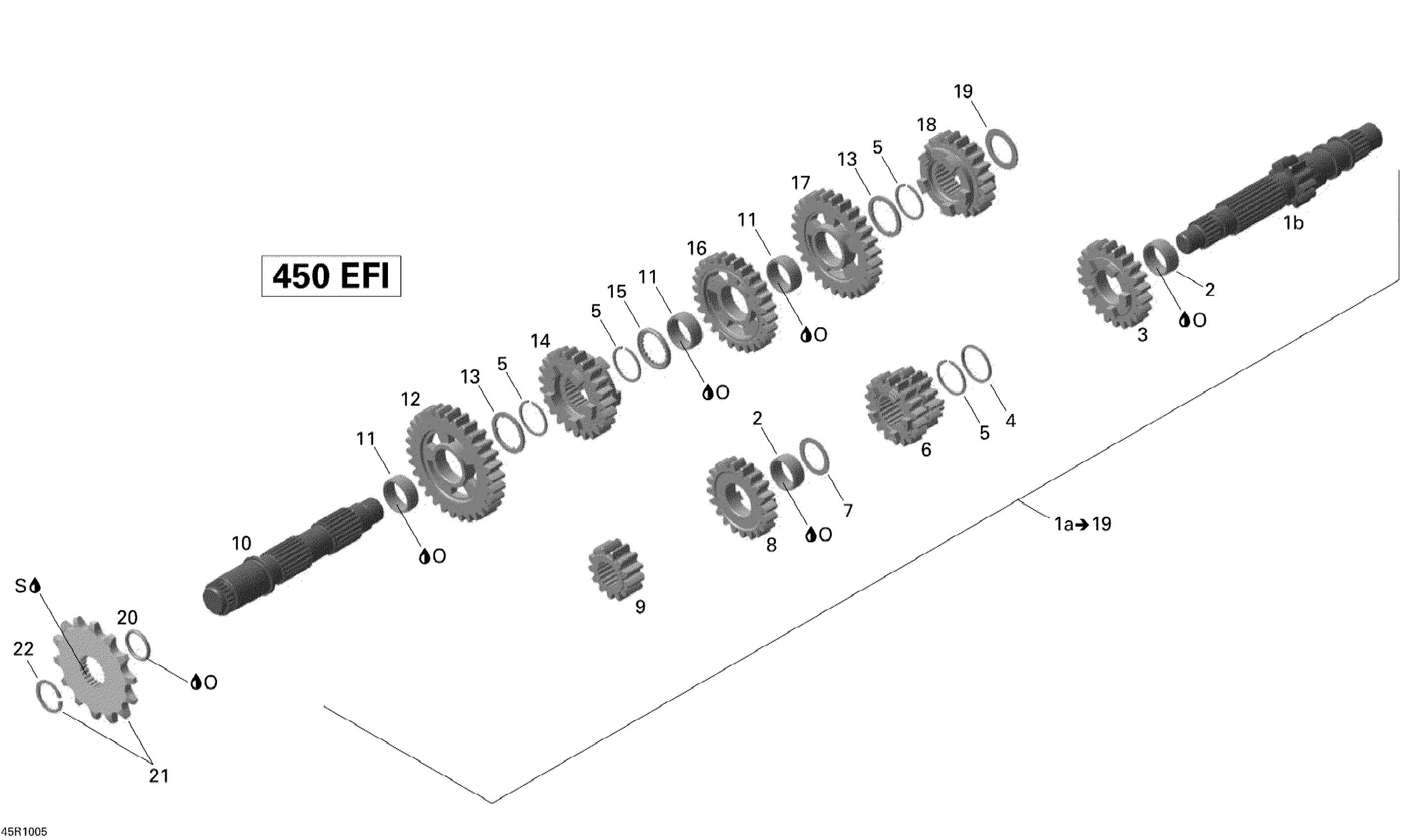

Can-Am DS 450 EFI, 2010 05- Gear Box Diagram

#

Description
Price

1a

GEAR BOX ASS'Y - Call your local BRP dealership | Includes 1a to 19

420281498

$2,557.91

1b

Clutch Shaft

420620950

$269.99

2

Needle Bearing

420232662

$21.99

3

FREE PINION, 22 TEETH - Call your local BRP dealership

420234883

Unavailable

4

THRUST WASHER - Call your local BRP dealership

420227470

Unavailable

5

SNAP RING 24 - Call your local BRP dealership

420245340

Unavailable

6

PINION GEAR, 15/18 TEETH - Call your local BRP dealership

420435062

$229.99

7

THRUST WASHER - Call your local BRP dealership

420227440

Unavailable

8

FREE PINION, 20 TEETH - Call your local BRP dealership

420435092

Unavailable

9

FIXED GEAR, 13 TEETH - Call your local BRP dealership

420435040

Unavailable

10

MAIN SHAFT - Call your local BRP dealership

420620960

Unavailable

11

Needle Bearing

420232742

$19.99

12

FREE PINION, 30 TEETH - Call your local BRP dealership

420435050

Unavailable

13

THRUST WASHER - Call your local BRP dealership

420227460

Unavailable

14

PINION GEAR, 23 TEETH - Call your local BRP dealership

420435102

Unavailable

15

ANGULAR RING - Call your local BRP dealership

420227491

Unavailable

16

FREE PINION, 26 TEETH - Call your local BRP dealership

420435082

Unavailable

17

FREE PINION, 28 TEETH - Call your local BRP dealership

420435070

Unavailable

18

PINION GEAR, 21 TEETH - Call your local BRP dealership

420234992

Unavailable

19

THRUST WASHER - Call your local BRP dealership

420227430

Unavailable

20

O-Ring

420250050

$10.43

21

Sprocket Kit, 14 Teeth

715000591

$41.49

22

RETAINING RING - Call your local BRP dealership

420245650

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
