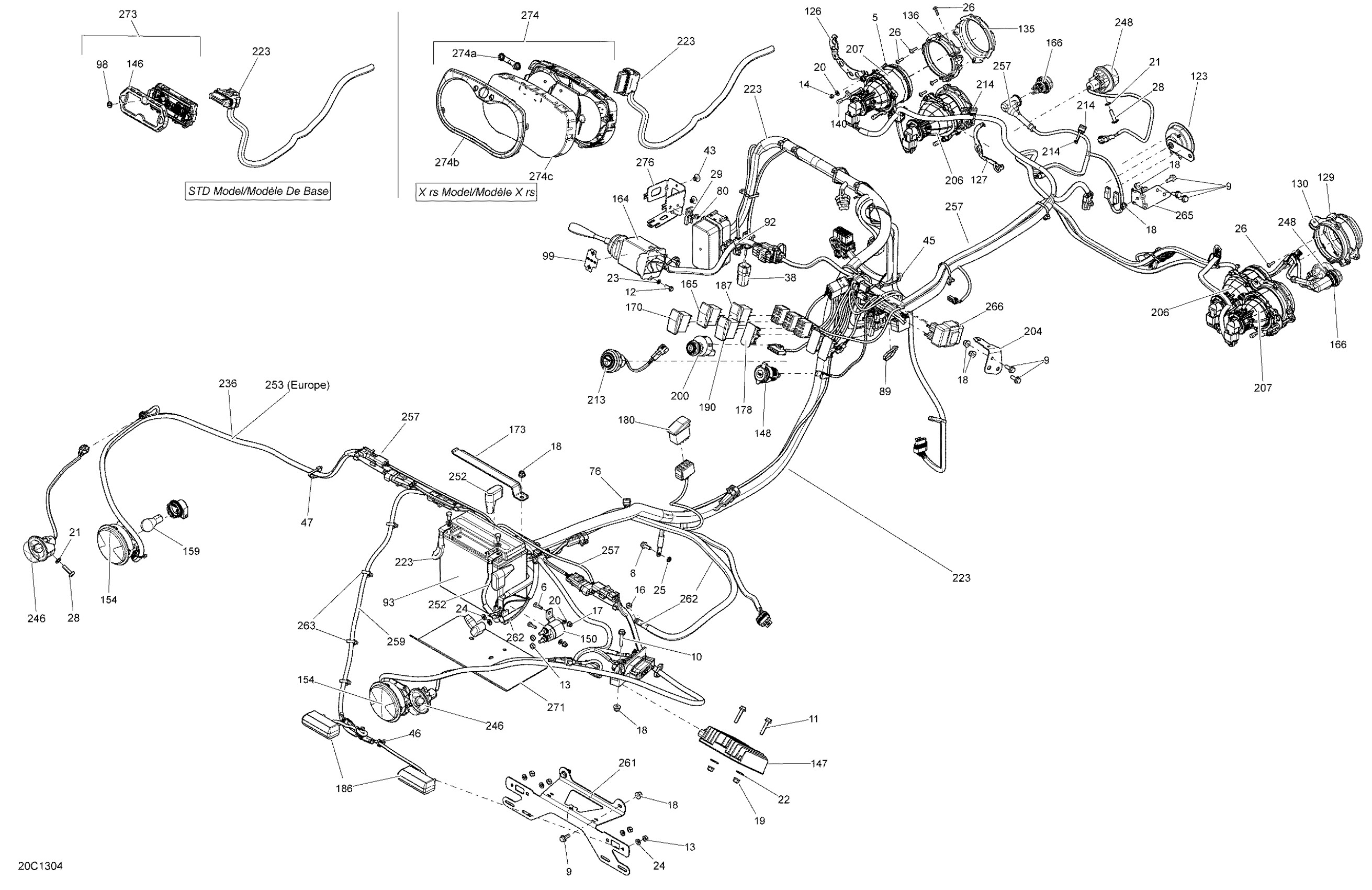

Can-Am Maverick 1000, STD, XRS, 2013 10- Electrical System Diagram

Hex. Screw M4 X 25

207142544

$2.00

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

Hex. Forming Screw M5 X 16

210251650

$1.15

Hex. Nut M6

232061600

$1.15

Elastic Stop Nut M4

232541414

$0.58

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M6

233261494

$1.58

Flat Washer M5

234051410

$0.53

Flat Washer 6 mm

234061410

$1.36

Stainless Steel Flat Washer

234062670

$2.11

Lock Washer 5 mm | Europe

234151401

$0.55

Lock Washer Helical M6

234161601

$1.15

External Serrated Lock Washer 6 mm

234461608

$1.15

Phillips Screw K40 X 16

250000723

$0.98

Torx Screw M6 x 25

250000284

$2.11

Clip

270000141

$11.49

Diagnostic Connector

278002704

$19.49

Pop Rivet 3/16"

293150103

$0.55

Mount Dart

293730040

$1.04

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Clip Tie-Rap

293750063

$8.75

Pop Rivet 3/16"

390402400

$0.35

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

BRP Logo13 mm

704904615

$13.49

Flasher Decal | Europe

704902614

$19.99

Horn

710004791

$38.99

LH High Light Support

710001036

$5.29

RH High Light Support

710001115

$5.29

LH Low Light Support

710001037

$9.09

RH Low Light Support

710001094

$9.09

RH Low Front Housing

710001081

$19.99

LH Low Front Housing

710001083

$19.99

RH Low Rear Housing

710001082

$12.99

LH Low Rear Housing

710001084

$12.99

RH High Front Housing

710001085

$19.99

LH High Front Housing

710001087

$19.99

RH High Rear Housing

710001086

$12.99

LH High Rear Housing

710001088

$12.99

Setting Screw

710001147

$12.71

Trim Ring Ass'y

710001183

$19.99

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

DC Outlet

710001248

$37.99

Starter Relay

710007777

$48.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Turn Signal | Europe

710001721

$209.99

Hi/Low Switch | Except Europe

710001725

$21.49

Day Light | Europe

710001726

$35.99

4X4 Switch

710001737

$31.99

Battery Holder

710001916

$21.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch, Over ride

710002053

$19.49

License Light

710002055

$58.49

Switch Hazard | Europe

710002076

$19.49

PPS Sport Switch

710002199

$19.49

Ignition Switch

710008400

$78.49

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Engine Start Button

710002594

$60.49

Tie-Rap Clip

710002896

$4.39

WIRING HARNESS ASSY - Call your local BRP dealership

710002924

Unavailable

Rear Harness

710003680

$28.99

Flasher | Europe

710002964

$35.99

CABLE-POSITIVE - Call your local BRP dealership

710004388

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership | Europe

710003681

Unavailable

Harness Ass'y | Europe

710004346

$429.99

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

LIGHT SUPPORT - Call your local BRP dealership | Europe

710003150

Unavailable

Cable Positif *Cable-Positive

710004389

$36.99

Dart Tie Rap 200MM

710003168

$7.09

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

Flasher Unit

710003239

$78.49

Heat Deflector

710003265

$16.49

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

CALIBRATED SPEEDOMETER - Call your local BRP dealership | X

710003292

Unavailable

Fuse Holder

710003335

$10.11

Speedometer Button | XTP

415129355

$15.80

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49
