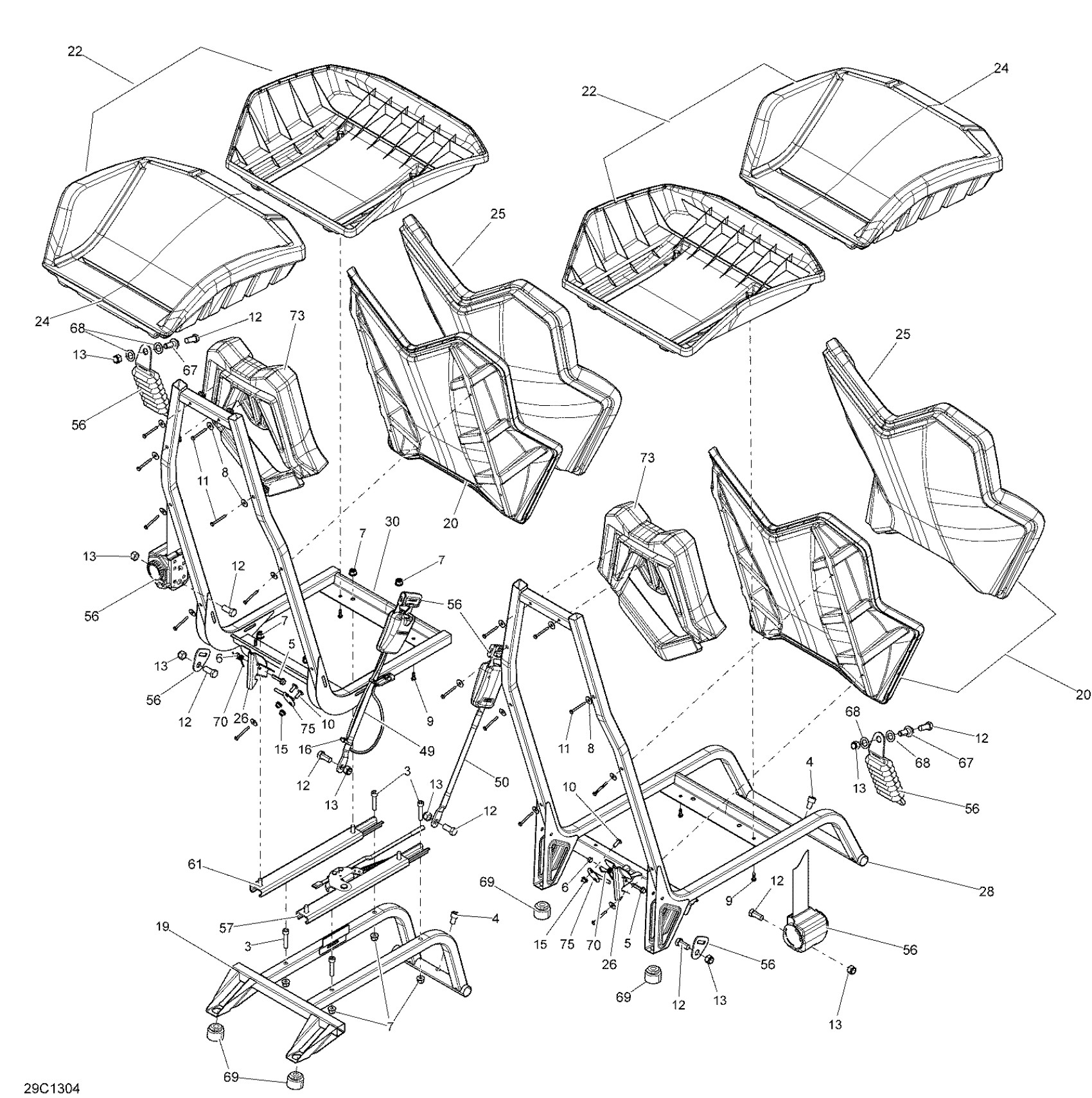

Can-Am Maverick 1000, STD, XRS, 2013 09- Seat Diagram

#

Description
Price

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

4

Socket Screw M10 X 16

205501644

$4.29

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Stainless Steel Flat Washer

234062670

$2.11

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Torx Screw M6 X 16

250000223

$2.11

11

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

12

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

13

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

15

Threaded Insert M6 X 1.0

250100242

Unavailable

16

Tie Wrap 368 mm

293750008

$1.04

19

Seat Member

708000667

$56.99

20

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20

KIT BACKREST ASS'Y, X MODEL - Call your local BRP dealership | Black/Yellow

703500946

Unavailable

22

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

22

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

24

Seat Cover

708001103

$117.99

24

SEAT COVER - Call your local BRP dealership | Black/Yellow

708001084

Unavailable

25

Backrest Cover

708000675

$97.99

25

BACKREST COVER - Call your local BRP dealership | Black/Yellow

708001080

Unavailable

26

Seat Latch

708001355

$2.59

28

Passenger Seat Frame

708000690

Unavailable

30

Driver Seat Frame

708000739

Unavailable

49

Driver Buckle Side | Europe

708000856

$123.49

49

Driver Buckle Side

708002061

$70.99

50

Passenger Buckle Side

708000844

$53.99

50

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

56

SAFETY BELT - Call your local BRP dealership

708001108

$209.99

56

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

57

RH RAIL - Call your local BRP dealership

708000846

Unavailable

61

LH Rail

708000848

$53.99

67

Safety Belt Screw

708000890

$3.79

68

Position Washer

708000891

$1.29

69

Rubber Bumper

708001671

$2.89

70

Spring

708000921

$1.29

73

Head Rest

708001074

$104.99

75

RETAINING ROD - Call your local BRP dealership

708001238

$11.99
