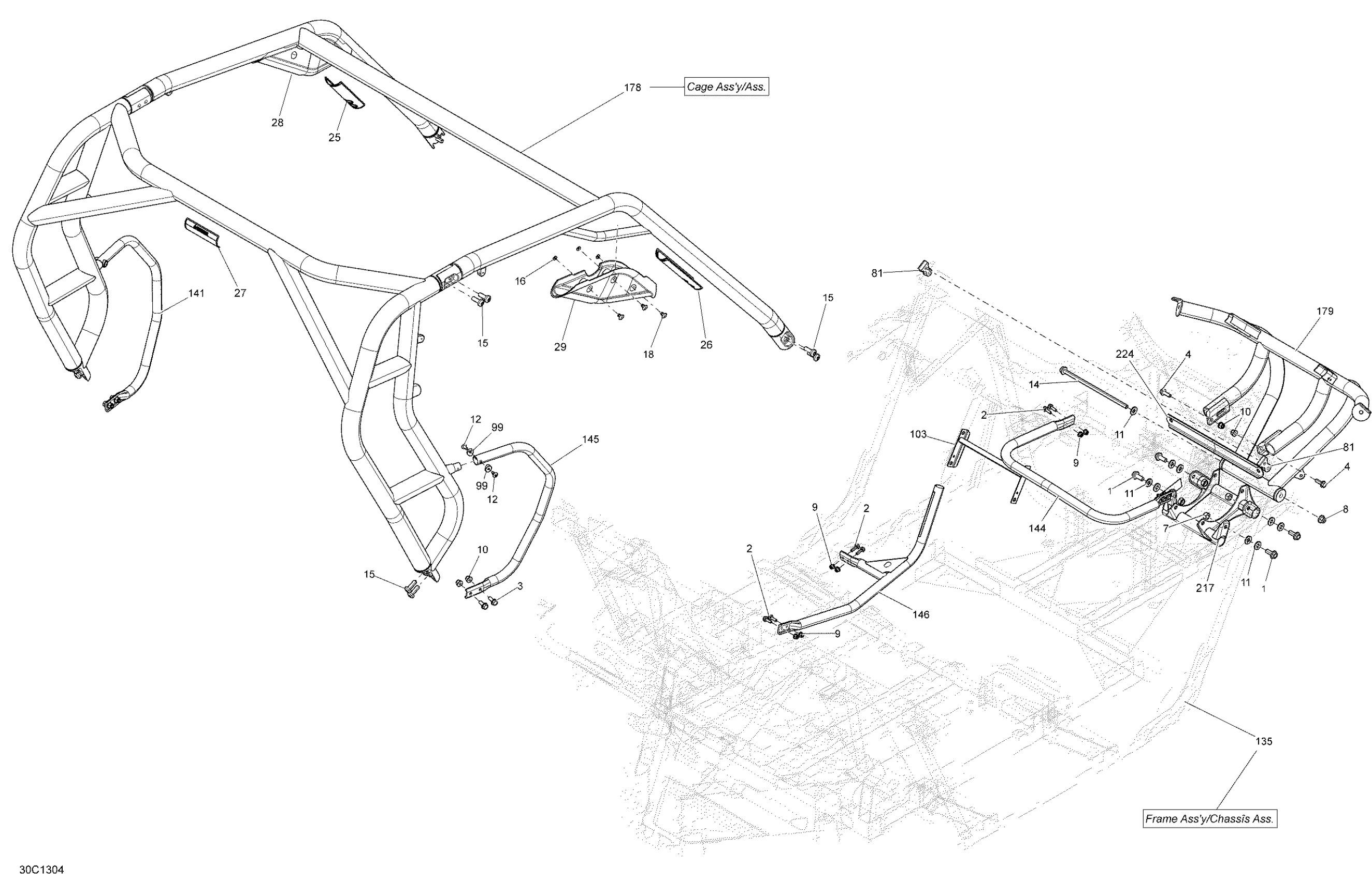

Can-Am Maverick 1000, STD, XRS, 2013 09- Frame Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 25

207602546

$2.11

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M8 X 20

207682044

$1.15

4

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Elastic Stop Nut M10

232500416

$1.90

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Conical Spring Washer 10 mm

234201474

$1.69

12

Torx Truss M6X14

250000789

$5.39

14

Hex. Flange Screw

250000597

$12.70

15

Screw Pan M10 X 30

250000848

$1.90

16

Flat Washer

250200121

$1.58

18

Pop Rivet 3/16”

293150108

$1.19

25

WARNING LABEL - Call your local BRP dealership

704902413

Unavailable

26

WARNING LABEL - Call your local BRP dealership

704902415

Unavailable

27

Warning Label

704903492

Unavailable

28

LH CAGE CAP MOULDING - Call your local BRP dealership

705004985

Unavailable

29

RH CAGE CAP MOULDING - Call your local BRP dealership

705004986

Unavailable

81

Binding Block

705203415

$18.49

99

Offset Washer

705202223

$4.14

103

Reinforcement Panel

705203330

$154.99

135

Frame Ass'y, Black

715001976

Unavailable

141

LH SIDE PROTECTOR TUBE - Call your local BRP dealership

705203323

Unavailable

144

Black Handle

705203332

$132.49

145

RH SIDE PROTECTOR TUBE - Call your local BRP dealership

705203321

Unavailable

146

HANDLE - Call your local BRP dealership

705203828

Unavailable

178

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

179

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

217

DIFFERENTIAL SUPPORT - Call your local BRP dealership

705203296

Unavailable

224

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49
