Description

Price

10

LH REAR PAINTED UPPER ARM - Call your local BRP dealership | STD

706001352

Unavailable

10

LH REAR YELLOW UPPER ARM - Call your local BRP dealership | X

706001380

Unavailable

10

RH REAR PAINTED UPPER ARM - Call your local BRP dealership | STD

706001353

Unavailable

10

RH REAR YELLOW UPPER ARM - Call your local BRP dealership | X

706001381

Unavailable

20

Black LH Rear Lower Arm

706001354

$201.49

20

Black RH Rear Lower Arm

706001355

$201.49

26

Grease Fitting

408200700

$3.49

27

Grease Fitting 90°

293550056

$1.15

30

Sway Bar

706001356

$185.49

31

Retaining Ring

706000251

$6.35

35

Sway Bar Lever

706001371

$169.99

36

Sway Bar Housing

706001402

$15.49

40

Radial Joint

706001373

$52.99

45

Retaining Ring

293370093

$7.59

50

Grease Fitting

408200700

$3.49

55

O-Ring

293300100

$5.72

60

Rear Coupling Bar

706001357

$48.99

70

LH Hex. Lock Nut M14

232175411

$6.67

75

LH Ball Joint

706001438

$54.99

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

95

Hex Flange Screw M10 X 80

207608046

$6.69

96

Hex. Flange Elastic Nut M10

233201436

$2.11

100

Wear Plate

706201660

$0.95

110

Elastic Stop Nut M18

232591414

$4.39

115

Washer

250200045

$7.73

130

Not Available As Spare Part - Friction Washer

Unavailable

130a

REAR SHOCK - Call your local BRP dealership | STD

706001240

$619.99

130b

YELLOW REAR SPRING - Call your local BRP dealership | STD

706001241

Unavailable

130c

O-Ring Bushing

715900209

$14.75

130d

Interior Bushing | XTP

715900210

$15.82

130e

Spherical Bearing

715900251

$82.99

130f

Retaining Ring

715900252

$12.49

131

Not Available As Spare Part - Friction Washer

Unavailable

131a

REAR SHOCK - Call your local BRP dealership | X

706001312

Unavailable

131b

YELLOW REAR SPRING - Call your local BRP dealership | X

706001313

Unavailable

131c

O-Ring Bushing

715900209

$14.75

131d

Interior Bushing | XTP

715900210

$15.82

160

LH Double Ball Joint

706001741

$102.99

160

RH Double Ball Joint

706001742

$102.99

180

Hex. Flange Screw M12 X 85

207628546

$6.77

181

Hardened Washer

706200281

$2.85

185

Elastic Flange Nut M12

233221416

$2.85

190

Hex. Flange Elastic Nut M12

250000047

$1.90

195

Hardened Washer

706200281

$2.85

200

Hex. Flange Screw M10 X 70

207607046

$2.96

205

Hex. Flange Elastic Nut M10

233201436

$2.11

210

Elastic Locking Nut M10 X 1.5

233601416

$1.69

215

Socket Screw M10 X 60

250001083

$3.91

220

Washer

503183800

$3.28

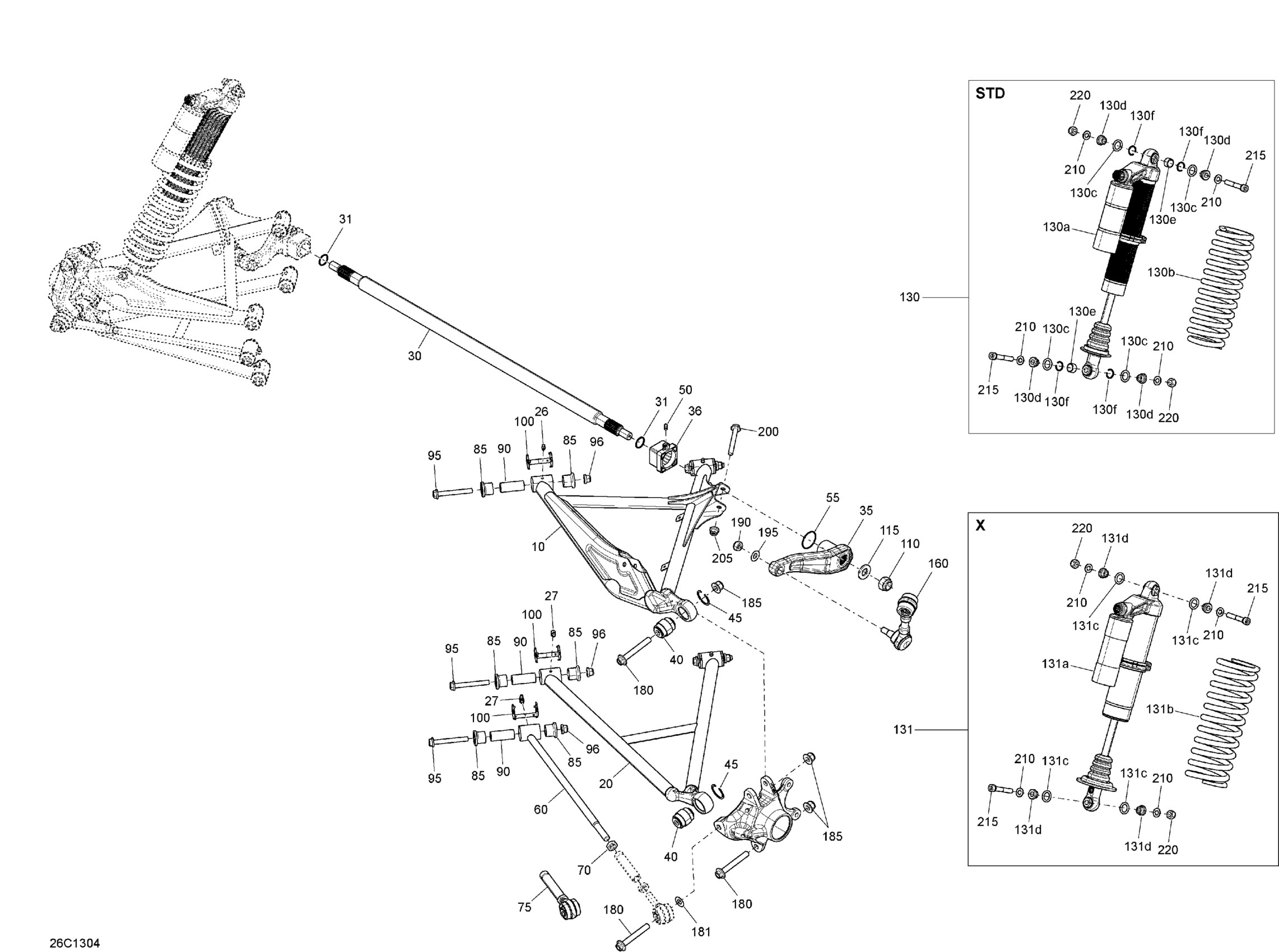

Can-Am Maverick 1000, STD, XRS, 2013 08- Rear Suspension Diagram

LH REAR PAINTED UPPER ARM - Call your local BRP dealership | STD

LH REAR YELLOW UPPER ARM - Call your local BRP dealership | X

RH REAR PAINTED UPPER ARM - Call your local BRP dealership | STD

RH REAR YELLOW UPPER ARM - Call your local BRP dealership | X

Black LH Rear Lower Arm

Black RH Rear Lower Arm

Grease Fitting

Grease Fitting 90°

Sway Bar

Retaining Ring

Sway Bar Lever

Sway Bar Housing

Radial Joint

Retaining Ring

Grease Fitting

O-Ring

Rear Coupling Bar

LH Hex. Lock Nut M14

LH Ball Joint

Suspension Arm Bushing

Sleeve

Hex Flange Screw M10 X 80

Hex. Flange Elastic Nut M10

Wear Plate

Elastic Stop Nut M18

Washer

Not Available As Spare Part - Friction Washer

REAR SHOCK - Call your local BRP dealership | STD

YELLOW REAR SPRING - Call your local BRP dealership | STD

O-Ring Bushing

Interior Bushing | XTP

Spherical Bearing

Retaining Ring

Not Available As Spare Part - Friction Washer

REAR SHOCK - Call your local BRP dealership | X

YELLOW REAR SPRING - Call your local BRP dealership | X

O-Ring Bushing

Interior Bushing | XTP

LH Double Ball Joint

RH Double Ball Joint

Hex. Flange Screw M12 X 85

Hardened Washer

Elastic Flange Nut M12

Hex. Flange Elastic Nut M12

Hardened Washer

Hex. Flange Screw M10 X 70

Hex. Flange Elastic Nut M10

Elastic Locking Nut M10 X 1.5

Socket Screw M10 X 60

Washer
