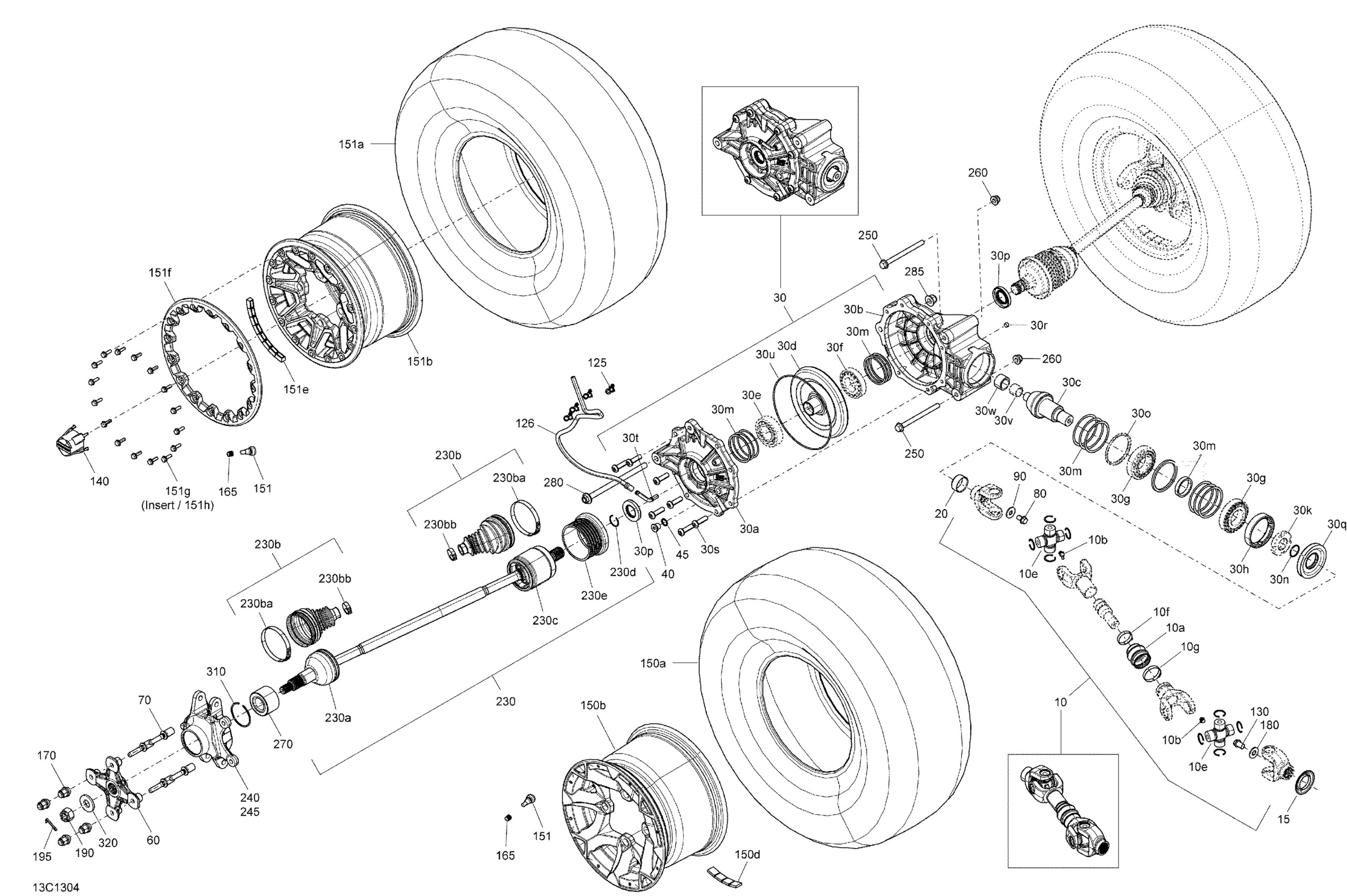

Can-Am Maverick 1000, STD, XRS, 2013 08- Drive System, Rear Diagram

#

Description
Price

10

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$307.49

10a

Rubber Boot

715900118

$14.30

10b

GREASE FITTING - Call your local BRP dealership

715900239

Unavailable

10e

Universal Joint

715900326

$68.99

10f

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

15

Protector

705501123

$7.55

20

Wear Ring | 4X4

705400036

$26.49

30

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

30a

REAR COVER - Call your local BRP dealership

705501735

Unavailable

30b

PINION COVER - Call your local BRP dealership

705501736

Unavailable

30c

Pinion Kit

703500867

$429.99

30d

GEAR 36 TEETH KIT - Call your local BRP dealership

703500837

Unavailable

30e

Not Available As Spare Part - Friction Washer

Unavailable

30f

Not Available As Spare Part - Friction Washer

Unavailable

30g

Not Available As Spare Part - Friction Washer

Unavailable

30h

NUT - Call your local BRP dealership

705501740

Unavailable

30k

Not Available As Spare Part - Friction Washer

Unavailable

30m

Differential Shim Kit

703500839

$51.99

30n

O-Ring

705501554

$5.03

30o

Not Available As Spare Part - Friction Washer

Unavailable

30p

Oil Seal

705501556

$17.99

30q

Oil Seal

705502276

$15.34

30r

Plug Drain

705501724

$5.95

30s

Bolt

705501562

$5.00

30t

Breather Tube

705501584

$14.99

30u

Oil Seal

705501749

$9.27

30v

Not Available As Spare Part - Friction Washer

Unavailable

30w

Needle Bearing

703500840

$62.49

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

60

Wheel Hub

705501900

$132.49

70

Wheel Stud

250300060

$11.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

125

Dart Tie Rap 200MM

710003168

$7.09

126

Polyurethane Hose 10000Mm Long

219704410

$56.99

130

Hex Flange Screw M12 X 16

250001039

$2.11

140

Wheel Cap

705400928

$10.49

150a

Rear Tire 27X11X12 | X

705502938

$254.49

150b

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

150c

Rim Valve With Cap

705400193

$8.69

150d

1/2 Oz Weight

219704465

$3.89

151a

Rear Tire 27X11X12 | X

705502938

$254.49

151b

Black, Rim | XXC

705502244

$265.99

151d

Rim Valve With Cap

705400193

$8.69

151e

1/2 Oz Weight

219704465

$3.89

151f

Yellow Reinforcement Disc

705401329

$85.99

151g

Hex. Flange Screw M6 X 25

250000787

$2.22

151h

Insert | XXC

293450317

$7.29

151a

Rear Tire | X Model Europe

705501818

$254.49

151

Rim Valve With Cap

705400193

$8.69

165

Valve Cap

293000110

$1.59

170

Black, Wheel Nut M10 X 1.25

250100184

$4.51

180

Flat Washer M12

250200102

$2.11

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400036

$2.11

230

Half Shaft | Includes 230 to 230e

705502356

$243.99

230a

CV_JOINT EXT - Call your local BRP dealership

705501863

Unavailable

230b

Boot Kit

705501864

$42.49

230ba

Oetiker Clamp, 82.1 mm

715900241

$10.33

230bb

Oetiker Clamp, 27.3 mm

715900242

$10.33

230c

Plunging Joint

705501865

$259.49

230d

Circlip

705501781

$6.50

230e

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

240

LH Rear Knuckle

705501730

$185.49

245

RH Rear Knuckle

705501731

$195.99

250

Hex. Flange Screw M10 X 125

230602546

$7.41

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

280

Hex. Flange Screw M12 X 190

230629087

$19.99

285

Elastic Flange Nut M12

233221416

$2.85

310

Circlip

293370019

$4.68

320

Conical Spring Washer M20

250200170

$14.74
