Description

Price

10

Steering Shaft Ass'y

709401388

$199.99

20

Steering Wheel | STD

709400650

$137.49

20a

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

30

Steering Shaft

709401167

$48.99

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

40

Painted Steering Wheel Support

709401391

$85.99

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.55

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

70

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

100

Hex. Elastic Flange Nut M8

233281416

$1.48

110

Hex. Flange Elastic Nut M12

233221414

$7.69

120

Adjustment Cylinder

709402506

$72.99

130

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

140

Elastic Stop Nut M6

232561414

$0.55

150

Steering Center | STD

709400780

$13.49

155

Phillips Screw K40 X 16

250000723

$0.98

210

Hardened Washer

706200281

$2.85

215

Hexagonal Screw M12 X 88

250000657

$6.77

220

Elastic Stop Nut M12

232521416

$1.69

230

Cotter Pin

211400017

$0.33

260

Rack And Pinion Steering Ass'y

709401351

Unavailable

260a

Boot Kit, Pinion Side

715900235

$54.99

260b

Boot Kit, Tube Side

715900236

$54.99

260c

Steering Rod Nut

715900238

$2.30

260d

Ball Joint

709401125

$52.99

260e

Rack And Pinion Steering Ass'y

709401235

Unavailable

260f

Tie Rod

709401427

$32.99

275

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

285

Hex. Flange Elastic Nut M8

233281414

$1.47

290

Hex. Flange Screw M8 X 25

207682544

$1.35

295

Conical Spring Washer M8

234281474

$1.48

315

Cluster Support | STD

709400760

$21.99

320

Speedometer Cover

709400514

$16.99

330

Latch Indicator Cover

709400573

$11.99

340

Truss Head Torx Screw K50 X 20

250000297

$2.11

345

Torx Truss Screw M6 X 20

250000350

$5.29

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Upper Cluster Cover | X, XT

707900124

$16.49

360

Cluster Support | X, XT

707900013

$16.49

365

Panel Nut M6 X 1.0

250100198

$2.11

370

Torx Truss Screw M6 X 16

250000721

$1.69

390

Flasher Arm Support | Europe

709400810

$29.49

400

Threaded Insert M6 X 1.0

250100242

Unavailable

410

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

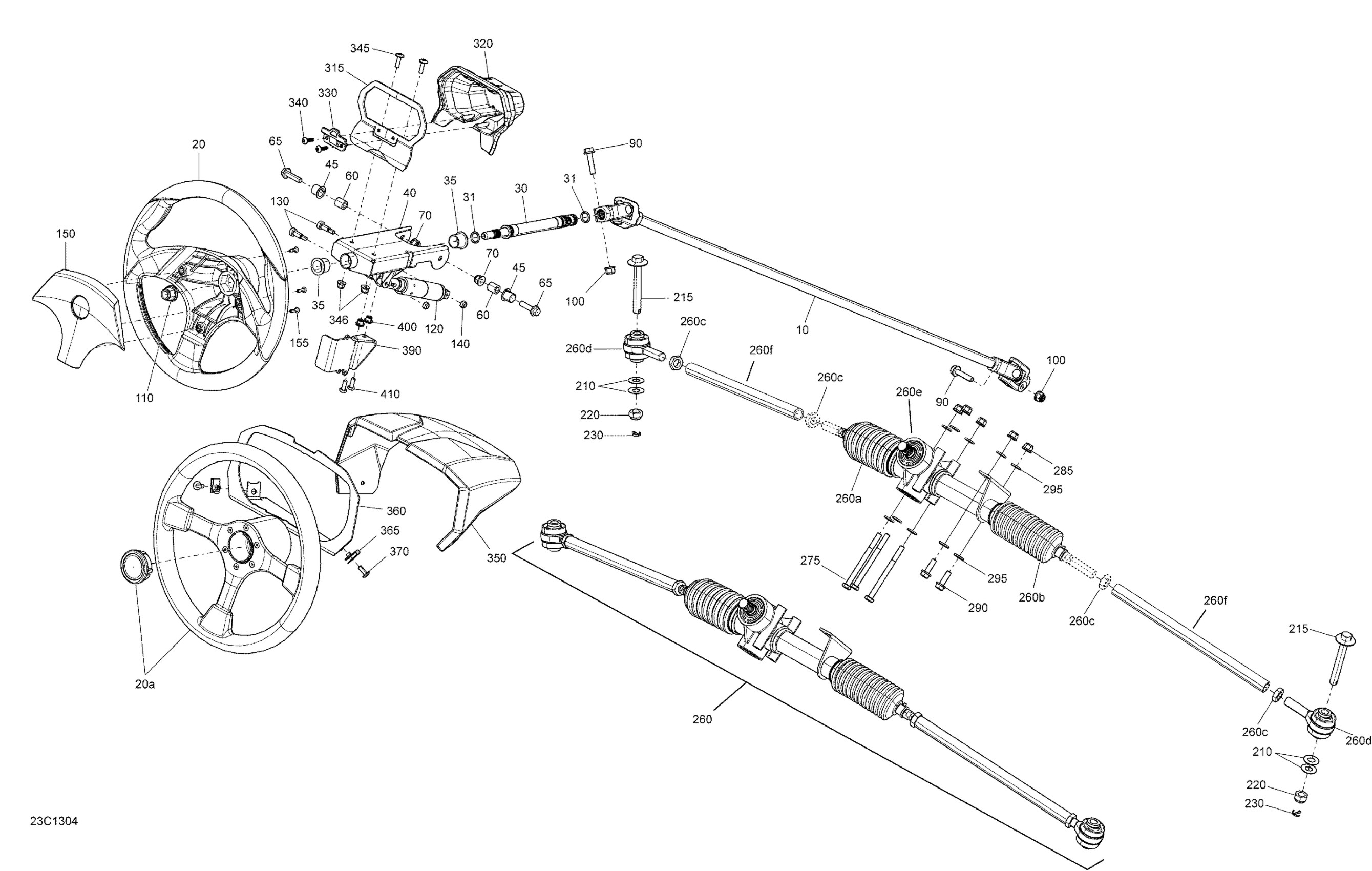

Can-Am Maverick 1000, STD, XRS, 2013 07- Steering Diagram

Steering Shaft Ass'y

Steering Wheel | STD

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

Steering Shaft

O-Ring

Steering Bushing

Painted Steering Wheel Support

Bushing

Bushing

Hex. Flange Screw M8 X 30 | DS 650 X

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

Hex. Elastic Flange Nut M8

Hex. Flange Elastic Nut M12

Adjustment Cylinder

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

Elastic Stop Nut M6

Steering Center | STD

Phillips Screw K40 X 16

Hardened Washer

Hexagonal Screw M12 X 88

Elastic Stop Nut M12

Cotter Pin

Rack And Pinion Steering Ass'y

Boot Kit, Pinion Side

Boot Kit, Tube Side

Steering Rod Nut

Ball Joint

Rack And Pinion Steering Ass'y

Tie Rod

SCREW-HEX. M8 X 100 - Call your local BRP dealership

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 25

Conical Spring Washer M8

Cluster Support | STD

Speedometer Cover

Latch Indicator Cover

Truss Head Torx Screw K50 X 20

Torx Truss Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Upper Cluster Cover | X, XT

Cluster Support | X, XT

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Flasher Arm Support | Europe

Threaded Insert M6 X 1.0

Hex. Screw M6 X 16, Scotch Grip | Europe
