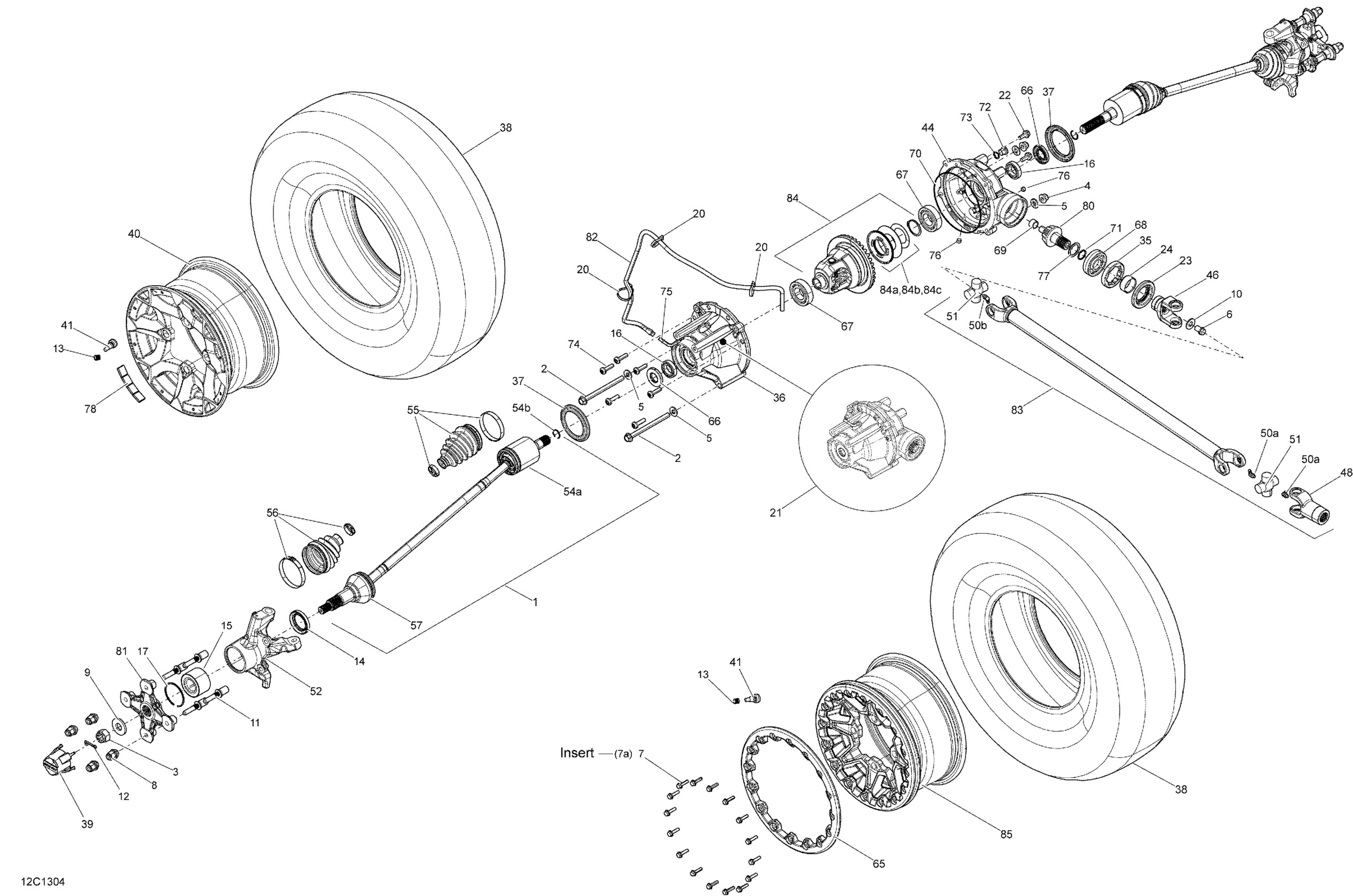

Can-Am Maverick 1000, STD, XRS, 2013 07- Drive System, Front Diagram

#

Description
Price

1

RH CV Joint

705401874

$243.99

1

LH CV Joint

705401873

$243.99

2

Hex. Flange Screw, M10 X 130

230603046

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Conical Spring Washer 10 mm

234201474

$1.69

6

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

7

Hex. Flange Screw M6 X 25

250000787

$2.22

7a

Insert | XXC

293450317

$7.29

8

Black, Wheel Nut M10 X 1.25

250100184

$4.51

9

Conical Spring Washer M18

250200171

$7.65

10

Flat Washer M12

250200102

$2.11

11

Wheel Stud

250300060

$11.49

12

Cotter Pin

250400036

$2.11

13

Valve Cap

293000110

$1.59

14

O-Ring

293250246

$7.51

15

Ball Bearing

293350150

$52.99

16

Ball Bearing | 4X4

293350044

$31.99

17

Circlip

293370019

$4.68

20

Tie-Rap 180 mm

414115200

$0.11

21

Front Differential | Includes 8 to 31

703500907

$1,579.99

22

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

23

Oil Seal | 4X4

705401481

$19.49

24

Wear Ring | 4X4

705400036

$26.49

35

Nut | 4X4

705401603

$35.99

36

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

37

Wear Sleeve

705400780

$7.90

38

Front Tire 27X9X12 | X

705402560

$238.49

38

Front Tire | X Model, Europe

705401386

$238.49

39

Wheel Cap

705400928

$10.49

40

Deep Black, 12" X 6 Rim | STD

705401417

$190.49

41

Rim Valve With Cap

705400193

$8.69

44

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

46

Fixed Yoke Joint

715900116

$59.49

48

Yoke Joint | Cover 715900483

715900231

$26.49

50a

GREASE FITTING - Call your local BRP dealership

703500813

Unavailable

50b

Grease Fitting

703500815

$5.24

51

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

52

LH Front Knuckle

705401548

$132.49

52

RH Front Knuckle

705401549

$104.99

54a

LH Plunging Joint

705401350

$259.49

54a

RH Plunging Joint

705401348

$259.49

54b

Circlip Joint | Not shown

705401349

$6.50

55

Boot Kit, Differential Side

705401346

$42.49

56

Boot Kit, Wheel Side

705401345

$42.49

57

CV Joint

705401344

$259.49

65

Yellow Reinforcement Disc

705401329

$85.99

66

Gasket | 4X4

705401618

$18.49

67

Ball Bearing | 4X4

705401606

$51.99

68

Ball Bearing | 4X4

705500260

$31.99

69

Needle Bearing | 4X4

705500261

$19.99

70

Seal | 4X4

705500265

$18.76

71

O-Ring | 4X4

705500267

$7.65

72

Fill Level Plug | 4X4

705500504

$10.01

73

Copper Washer | 4X4

705500506

$0.45

74

Screw | 4X4

705401601

$10.49

75

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

76

Drain Plug | 4X4

705500894

$11.49

77

Pinion Gear Shim

705501162

$16.49

78

1/2 Oz Weight

219704465

$3.89

80

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

81

Wheel Hub

705501900

$132.49

82

Polyurethane Hose 10000Mm Long

219704410

$56.99

83

Drive Shaft Assembly

705402068

$238.49

84

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

84a

Pinion Gear Shim 1.67 mm

705502061

$18.99

84b

Shim | 4X4

705401604

$57.99

84c

Shim | 4X4

705401604

$57.99

85

Black, Rim | XXC

705401678

$260.99
