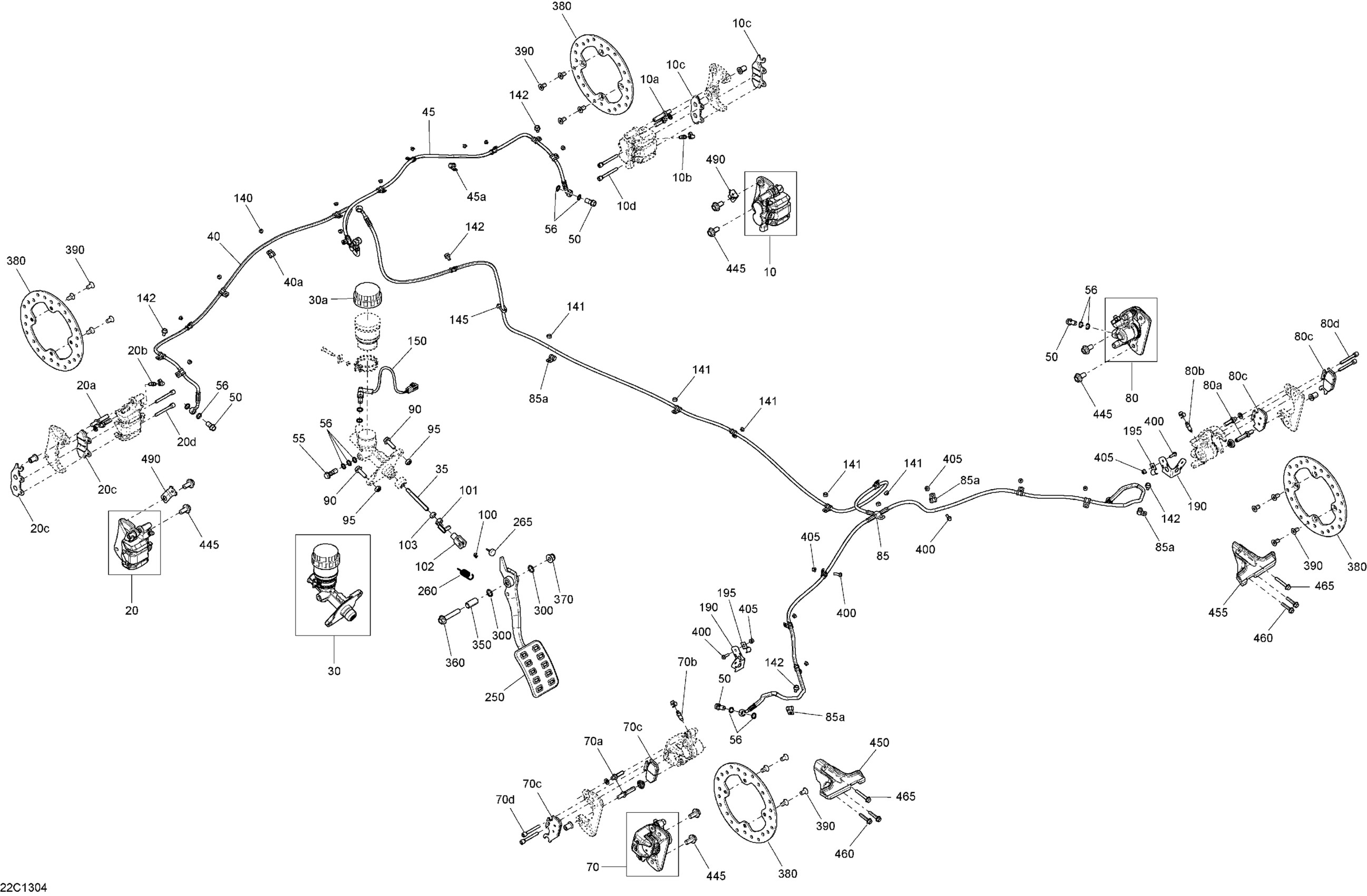

Can-Am Maverick 1000, STD, XRS, 2013 06- Brakes Diagram

#

Description
Price

10

RH Caliper | Includes 1 to 5

705600678

$317.99

10a

Spring Boot Bolt Kit

715500383

$17.59

10b

Bleeding Screw

705600080

$16.87

10c

RH Brake Pad Kit

715500336

$51.99

10d

Sliding Pin Kit

715500337

$20.49

20

LH Caliper | Includes 6 to 10

705600679

$317.99

20a

Spring Boot Bolt Kit

715500383

$17.59

20b

Bleeding Screw

705600080

$16.87

20c

LH Brake Pad Kit

715500335

$51.99

20d

Sliding Pin Kit

715500337

$20.49

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

30a

Diaphragm Cap Kit

715500332

$29.49

35

Master Cylinder Rod

705600833

$20.49

40

LH Front Flexible Hose | Includes 40 to 40a

705601079

$79.49

40a

Clamp

293650256

$5.49

45

RH Front Flexible Hose | Includes 45 to 45a

705601080

$79.49

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Banjo Bolt

705600958

$6.35

56

Copper Washer

705601628

$4.44

70

LH Caliper Ass'y | Includes 70 to 70d

705601089

$328.49

70a

Spring, Protector And Bolt Kit

715500384

$24.99

70b

Bleeding Screw

705600080

$16.87

70c

LH Brake Pad Kit

705600398

$51.99

70d

Pin Set (2)

705600081

$20.49

80

RH Caliper Ass'y | Includes 80 to 80d

705601090

$328.49

80a

Spring, Protector And Bolt Kit

715500384

$24.99

80b

Bleeding Screw

705600080

$16.87

80c

RH Brake Pad Kit

705601147

$51.99

80d

Pin Set (2)

705600081

$20.49

85

FLEXIBLE HOSE - Call your local BRP dealership | Includes 85 to 85a

705601081

Unavailable

85a

Clamp

293650256

$5.49

90

Hex. Flange Screw M8 X 25

207682544

$1.35

95

Hex. Elastic Stop Nut M8

232581414

$0.56

100

Cotter Pin

371800700

$1.01

101

Pin

250400062

$4.54

102

Yoke

705600100

Unavailable

103

Hex. Nut M8

232081414

$0.72

140

Pop Rivet 3/16"

390402200

$0.35

141

Elastic Stop Nut M6

232561414

$0.55

142

Hex. Flange Screw M6 X 10

210261040

$1.48

145

Tie-Rap 180 mm

414115200

$0.11

150

Brake Switch

705600798

$51.99

190

Hose Support

705601160

Unavailable

195

Half Clip

705601161

Unavailable

250

Brake Pedal

705600724

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

300

O-Ring

293300144

$3.82

350

Inner Spacer

705600815

$11.60

360

Hex. Flange Screw M10 X 55

207605544

$3.38

370

Hex. Flange Elastic Nut M10

233201414

$1.58

380

Disc Brake

705600999

$67.99

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Hex. Forming Screw M5 X 16

210251650

$1.15

405

Hex. Flange Elastic Nut M5

233251414

$1.04

445

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

450

LH DEFLECTTOR - Call your local BRP dealership

705601197

Unavailable

455

RH DEFLECTOR - Call your local BRP dealership

705601404

Unavailable

460

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

465

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

490

Bracket

705601337

$2.69
