Description

Price

10

Fuel Tank

709000753

$749.99

20

Rollover Valve

709000413

$55.99

30

Ring

709000274

$15.99

40

O-Ring

709000275

$18.10

50A

Fuel Pump | Includes 5 to 6

709000759

$372.49

50B

Fuel Pre-Filter Kit

709000389

$79.49

60

Neoprene Pad

709000288

$13.99

70

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

80

Fuel Cap | Except Europe

709000529

$28.49

80

FUEL CAP KIT - Call your local BRP dealership | Europe

715001124

Unavailable

100

Was 709000163 Fuel Line

219704440

$28.99

110

Was 709000163 Fuel Line

219704440

$28.99

120

Was 709000163 Fuel Line

219704440

$28.99

291

Oetiker Clamp

293650046

$2.89

360

Tie-Rap 180 mm

414115200

$0.11

370

Threaded Insert M6 X 1.0

250100242

Unavailable

380

Hex. Flange Screw M6 X 25

207662544

$0.64

390

Flat Washer

224060201

$1.26

400

Rubber Washer

293830037

$2.68

560

Quick Attach 90°

275500700

$16.49

580

Y-Fitting, 5/16''

293710136

$6.49

620

Polyurethane Hose 10000Mm Long

219704410

$56.99

630

Filter

709000330

$7.79

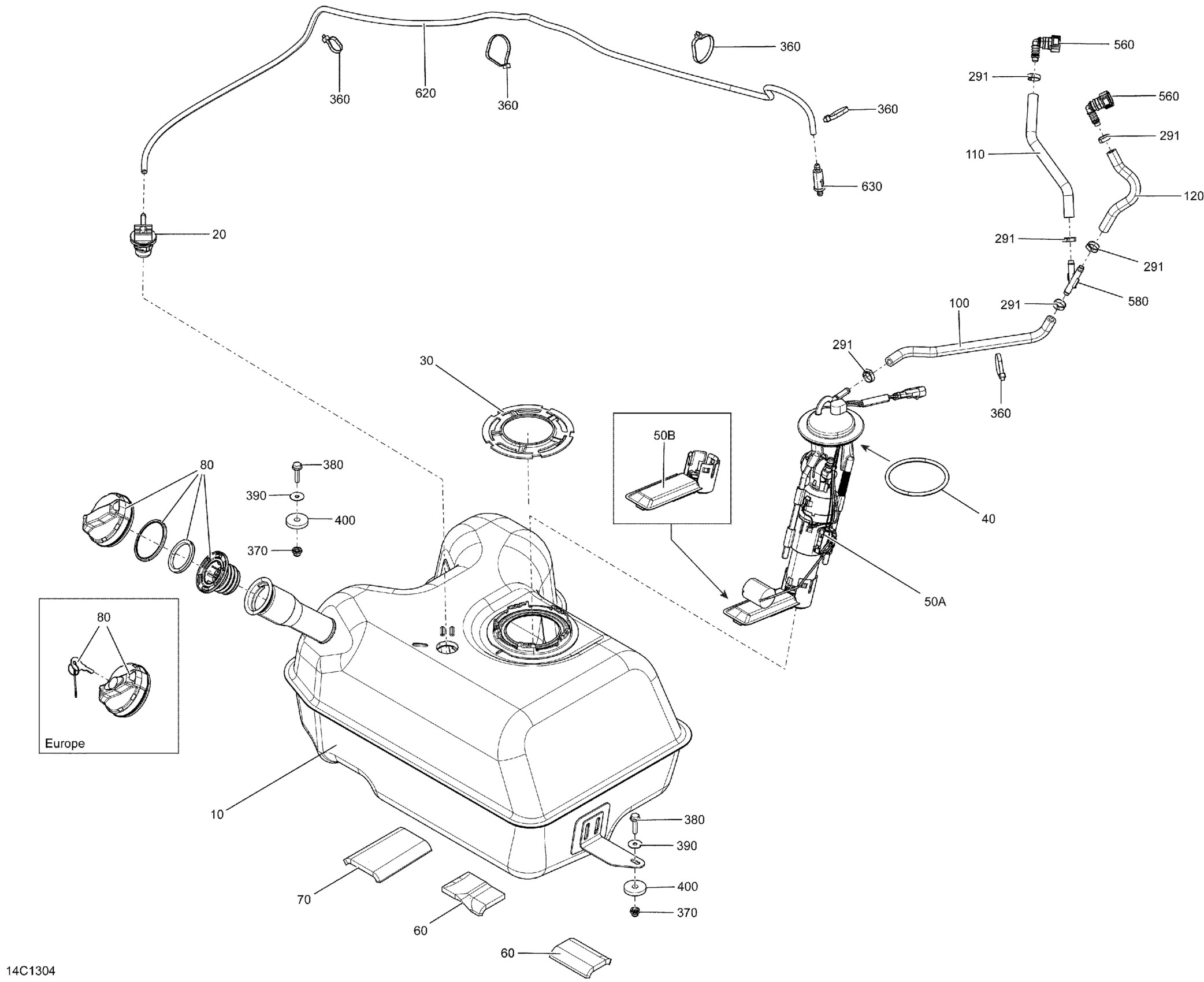

Can-Am Maverick 1000, STD, XRS, 2013 02- Fuel System Diagram

Fuel Tank

Rollover Valve

Ring

O-Ring

Fuel Pump | Includes 5 to 6

Fuel Pre-Filter Kit

Neoprene Pad

NEOPRENE PAD - Call your local BRP dealership

Fuel Cap | Except Europe

FUEL CAP KIT - Call your local BRP dealership | Europe

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Oetiker Clamp

Tie-Rap 180 mm

Threaded Insert M6 X 1.0

Hex. Flange Screw M6 X 25

Flat Washer

Rubber Washer

Quick Attach 90°

Y-Fitting, 5/16''

Polyurethane Hose 10000Mm Long

Filter
