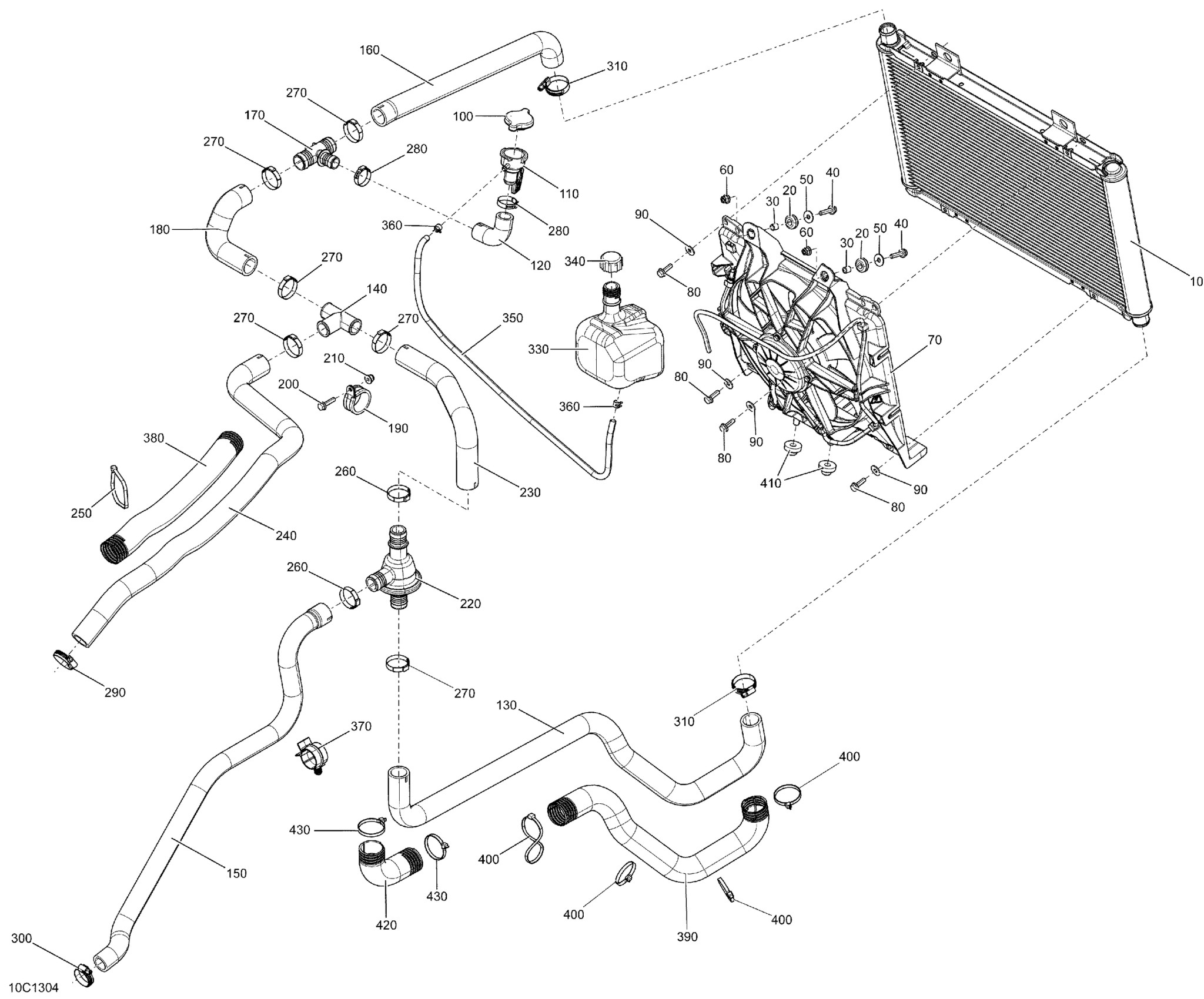

Can-Am Maverick 1000, STD, XRS, 2013 01- Cooling System Diagram

#

Description
Price

10

Radiator

709200395

$370.99

20

Grommet

709000582

$4.69

30

Bushing

293900105

$7.65

40

Hex. Flange Screw M6 X 25

207662534

$2.11

50

Flat Washer

250200082

$0.42

60

Flange Elastic Nut M6

233261434

$4.44

70

Fan Ass'y

709200564

$244.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

110

Filler Neck

709200179

$18.49

120

Filler Neck Hose

709200439

$10.99

130

Radiator Inlet Hose

709200444

$65.49

140

T-Fitting

509000219

$15.89

150

Pump Hose

709200441

$39.99

160

Outlet Hose

709200445

$24.99

170

T-Fitting

509000372

$10.33

180

Hose

709200443

$14.99

190

Hose Retainer

293650218

$9.39

200

Hex. Flange Screw M6 X 25

207662534

$2.11

210

Flange Elastic Nut M6

233261434

$4.44

220

Thermostat

709200406

$98.99

230

Hose

709200447

$22.49

240

Intermediate Hose

709200382

$28.49

250

Tie Wrap 368 mm

293750008

$1.04

260

Gear Clamp

509000162

$7.29

270

Gear Clamp

509000162

$7.29

280

Crimp Clamp

293650099

$4.29

290

Norma Gear Clamp

293650098

$4.44

300

Norma Gear Clamp

293650098

$4.44

310

Norma Gear Clamp

293650098

$4.44

330

Coolant Tank Ass'y

709200624

$27.99

340

Tank Cap

709200587

$5.40

350

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

360

Spring Clamp

414554800

$0.88

370

Retainer

275500590

$9.69

380

Tubing 35 MM 1000MM Long

219704428

$10.99

390

Tubing 35 MM 1000MM Long

219704428

$10.99

400

Tie Wrap 368 mm

293750008

$1.04

410

Grommet

709200285

$9.69

420

Tubing 35 MM 1000MM Long

219704428

$10.99

430

Tie Wrap 368 mm

293750008

$1.04
