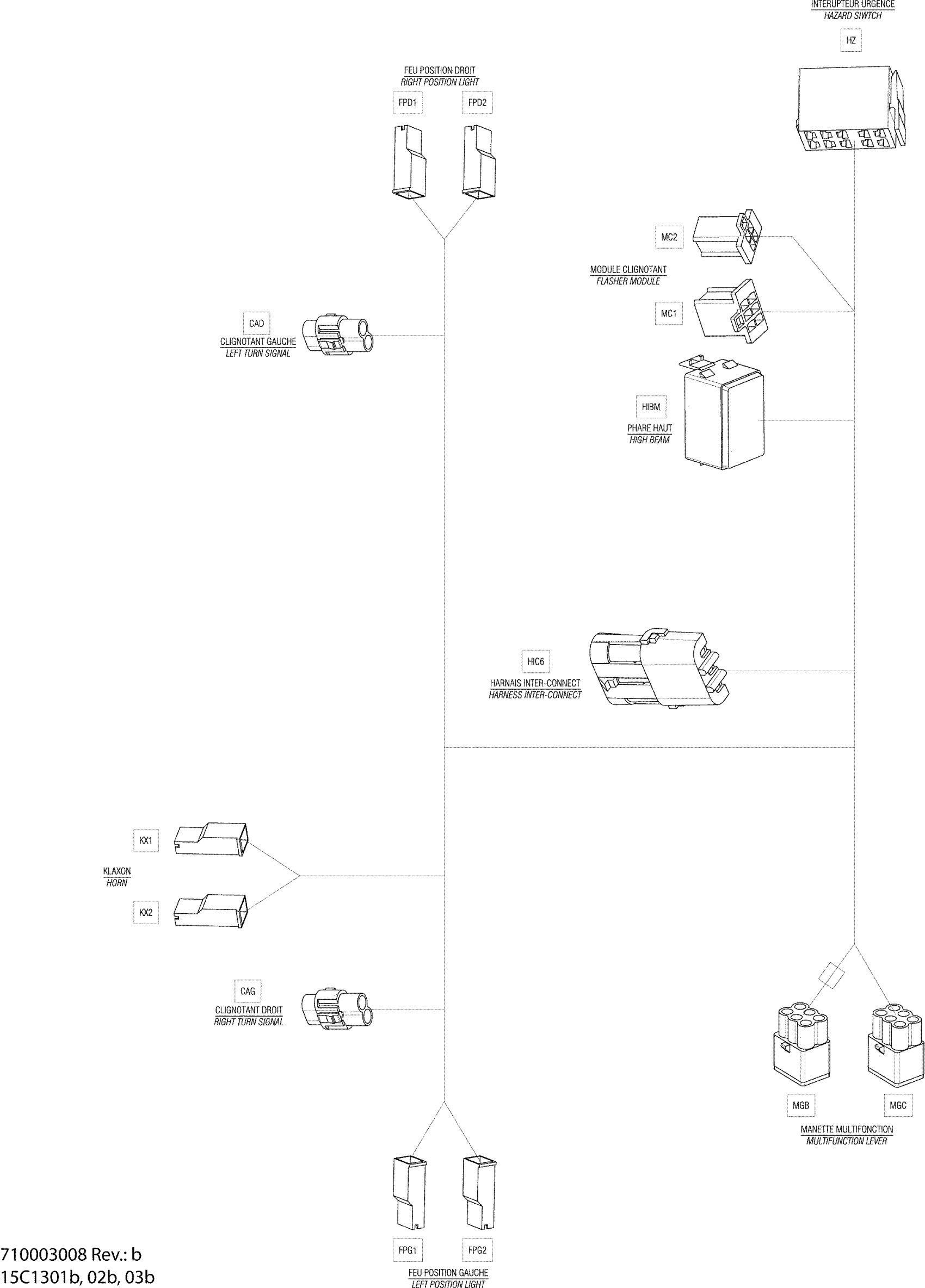

Can-Am Commander STD, DPS, XT, X 1000 EFI, 2013 10- Electrical Harness Europe Diagram

#

Description
Price

1

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable

CAD

Female Terminal

409012100

$4.55

CAD

Seal

409012300

$4.54

CAD

Not Available As Spare Part - Friction Washer

Unavailable

CAG

Female Terminal

409012100

$4.55

CAG

Seal

409012300

$4.54

CAG

Female Terminal Housing, 2 Circuits

409209200

Unavailable

D3

Diode

409012700

$11.12

D4

Diode

409012700

$11.12

FPD1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPD1

Female Terminal

409010100

$5.61

FPD1

Female Terminal Housing, 1 Circuit

409010400

$7.62

FPD1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

FPD2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPD2

Female Terminal

409010100

$5.61

FPD2

Female Terminal Housing, 1 Circuit

409010400

$7.62

FPD2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

FPG1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPG1

Female Terminal

409010100

$5.61

FPG1

Female Terminal Housing, 1 Circuit

409010400

$7.62

FPG1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

FPG2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPG2

Female Terminal

409010100

$5.61

FPG2

Female Terminal Housing, 1 Circuit

409010400

$7.62

FPG2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

HIBM

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

HIBM

Housing

710002407

Unavailable

HIBM

Terminal

710002863

Unavailable

HIC6

Male Terminal | XT Models

278000222

$3.19

HIC6

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

HIC6

Wire Seal

278001065

$7.69

HIC6

Clip

710000992

$4.29

HZ

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

HZ

Terminal

710001931

$2.09

HZ

Housing

710002000

$7.90

KX1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

KX1

Female Terminal

409010100

$5.61

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

KX2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

KX2

Female Terminal

409010100

$5.61

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

MC1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MC1

Housing

710002314

$17.04

MC1

Terminal

710002315

$4.55

MC2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MC2

Housing

710002313

$19.49

MC2

Terminal

710002315

$4.55

MGB

Female Terminal

409012100

$4.55

MGB

Seal

409012300

$4.54

MGB

Cap

710000080

$8.29

MGB

Female Housing, 6 Circuits

710000081

$8.79

MGC

Female Terminal

409012100

$4.55

MGC

Seal

409012300

$4.54

MGC

Cap

710000080

$8.29

MGC

Female Housing, 6 Circuits

710000081

$8.79
