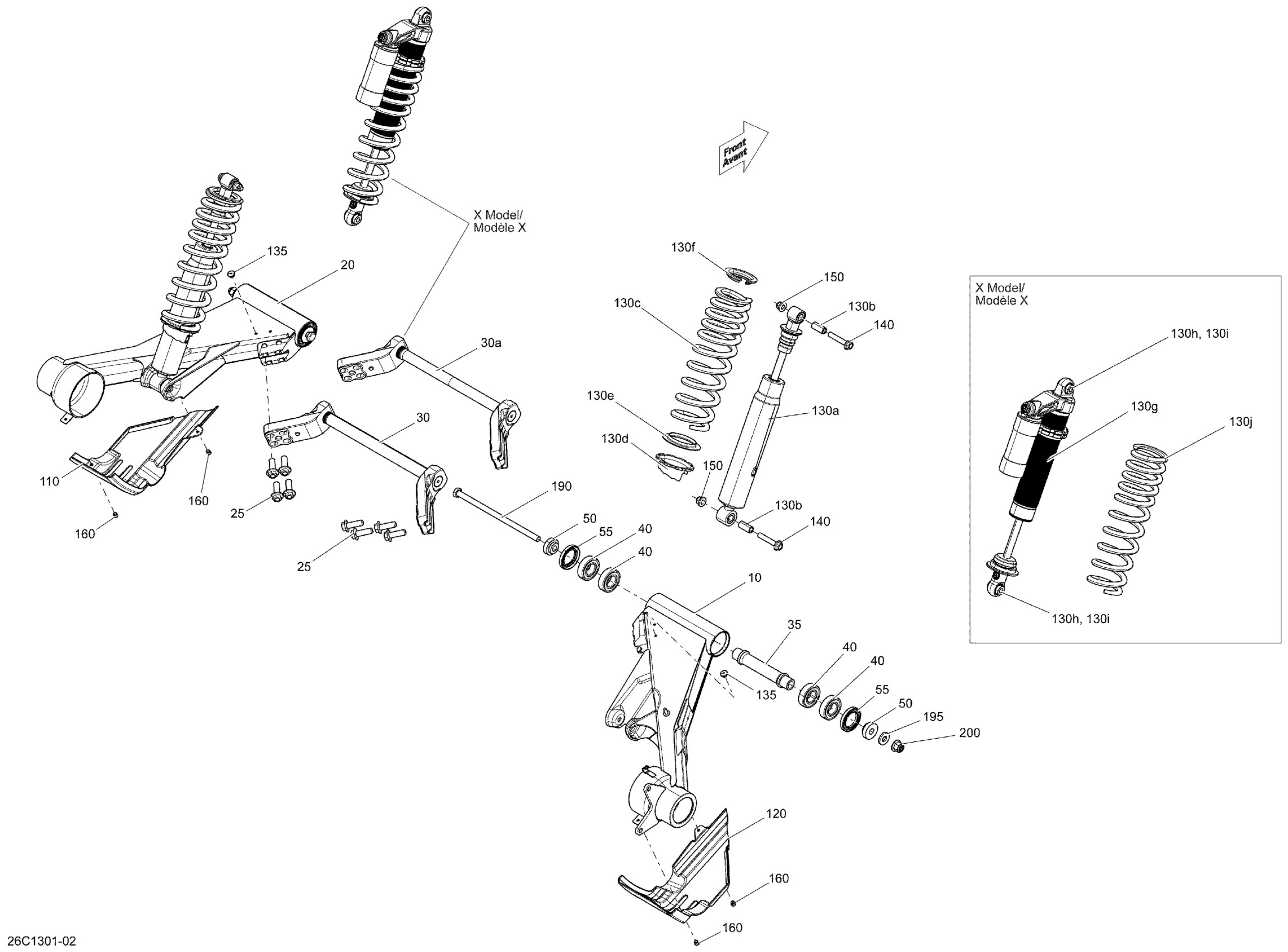

Can-Am Commander STD, DPS, XT, X 1000 EFI, 2013 08- Rear Suspension Diagram

#

Description
Price

10

RH Swing Arm

703500965

$190.99

20

LH Swing Arm

703500964

$190.99

25

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

30

Sway Bar Ass'y | STD, XT

706001500

$185.49

30a

SWAY BAR ASS'Y - Call your local BRP dealership | X Model

706001503

Unavailable

35

Bushing

706001529

$34.99

40

Ball Bearing

293350115

$12.11

50

Spacer

706001350

$10.49

55

Seal

293200094

$10.33

110

LH Joint Protector

706000630

$8.85

120

RH Joint Protector

706000814

$8.85

130a

Rear Shock | STD, XT

706000615

$195.99

130b

Bushing

715900122

$11.06

130c

RED REAR SPRING - Call your local BRP dealership | XT Red Model

706002466

Unavailable

130c

Yellow Rear Spring | STD, XT Yellow Model

706000667

$104.99

130c

Black Rear Spring | XT Camo Model

706001045

$100.49

130d

Adjustment Ring

706000910

$16.49

130e

Protector Ring | STD, XT

706000911

$13.99

130f

Spring Stopper

706000567

$15.99

130g

REAR SHOCK ASS'Y - Call your local BRP dealership | Inclus 130g to 130i, X Model

706001360

Unavailable

130h

O-Ring Bushing

715900209

$14.75

130i

Interior Bushing | XTP

715900210

$15.82

130j

YELLOW REAR SPRING - Call your local BRP dealership | X

706000821

Unavailable

130j

BLACK REAR SPRING - Call your local BRP dealership | X Carbon/Black Model

706001317

Unavailable

135

Pop Rivet 3/16"

390406500

$0.88

140

Hex. Flange Screw M10 X 55

207605544

$3.38

150

Hex. Flange Elastic Nut M10

233201436

$2.11

160

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

190

Hex. Cap Screw M12 X 241

250001031

$3.81

195

Flat Washer M12

250200120

$2.61

200

Elastic Flange Nut M12

233221416

$2.85
