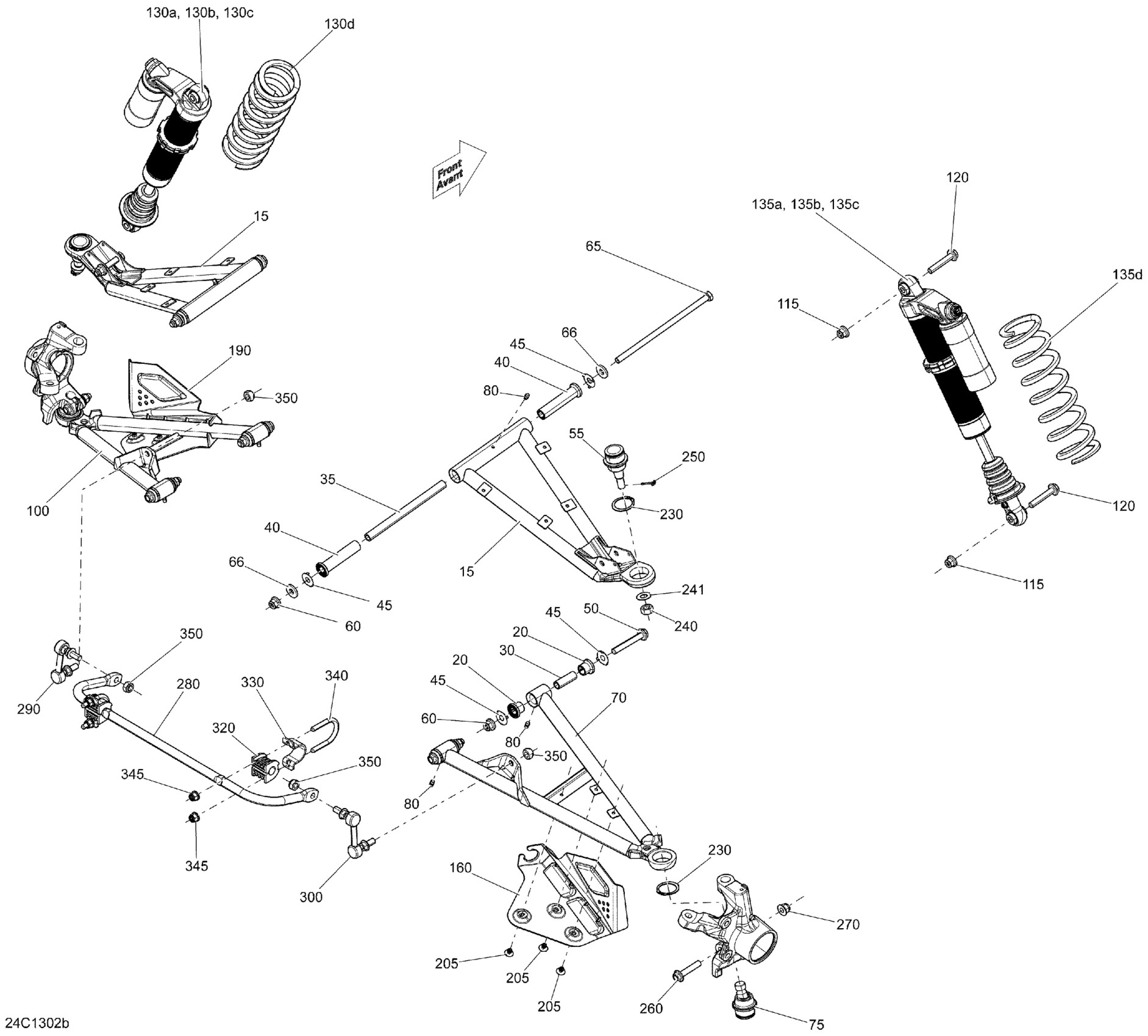

Can-Am Commander STD, DPS, XT, X 1000 EFI, 2013 07- Front Suspension X Diagram

#

Description
Price

15

Suspension Upper Arm

706200796

$190.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

35

Bushing

706202445

$14.30

40

Cushion

706201062

$2.30

45

Wear Plate

706201063

$0.95

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Hex. Cap Screw M10 X 225

250001032

$12.64

66

Washer

503190439

$5.93

70

RH Lower Suspension Arm

706200744

$190.99

75

Ball Joint

706202045

$35.99

80

Grease Fitting

408200700

$3.49

100

LH Lower Suspension Arm

706200742

$190.99

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605544

$3.38

130a

FRONT SHOCK ASS'Y - Call your local BRP dealership | Includes 130a to 130c

706201658

Unavailable

130b

O-Ring Bushing

715900209

$14.75

130c

Interior Bushing | XTP

715900210

$15.82

130d

Black, Front Spring | X Carbon/Black Model

706201617

$100.49

130d

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201124

Unavailable

135a

FRONT SHOCK ASS'Y - Call your local BRP dealership | Includes 130a to 130c

706201658

Unavailable

135b

O-Ring Bushing

715900209

$14.75

135c

Interior Bushing | XTP

715900210

$15.82

135d

Black, Front Spring | X Carbon/Black Model

706201617

$100.49

135d

YELLOW FRONT SPRING - Call your local BRP dealership | X

706201124

Unavailable

160

RH Protector

706201670

$17.54

190

LH Protector

706201669

$17.54

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605044

$5.29

270

Hex. Flange Elastic Nut M10

233201414

$1.58

280

Sway Bar Ass'y | X

706202560

$99.49

290

LH Sway Bar Link | X

706202536

$67.99

300

RH Sway Bar Link | X

706202537

$67.99

320

Stabilizer Bushing | X

706201086

$8.08

330

Clamp | X

706201087

$12.16

340

U-clamp | X

506060600

$17.80

345

Hex. Flange Elastic Nut M8

233281414

$1.47

350

Elastic Flange Nut M10

232501416

$1.48
