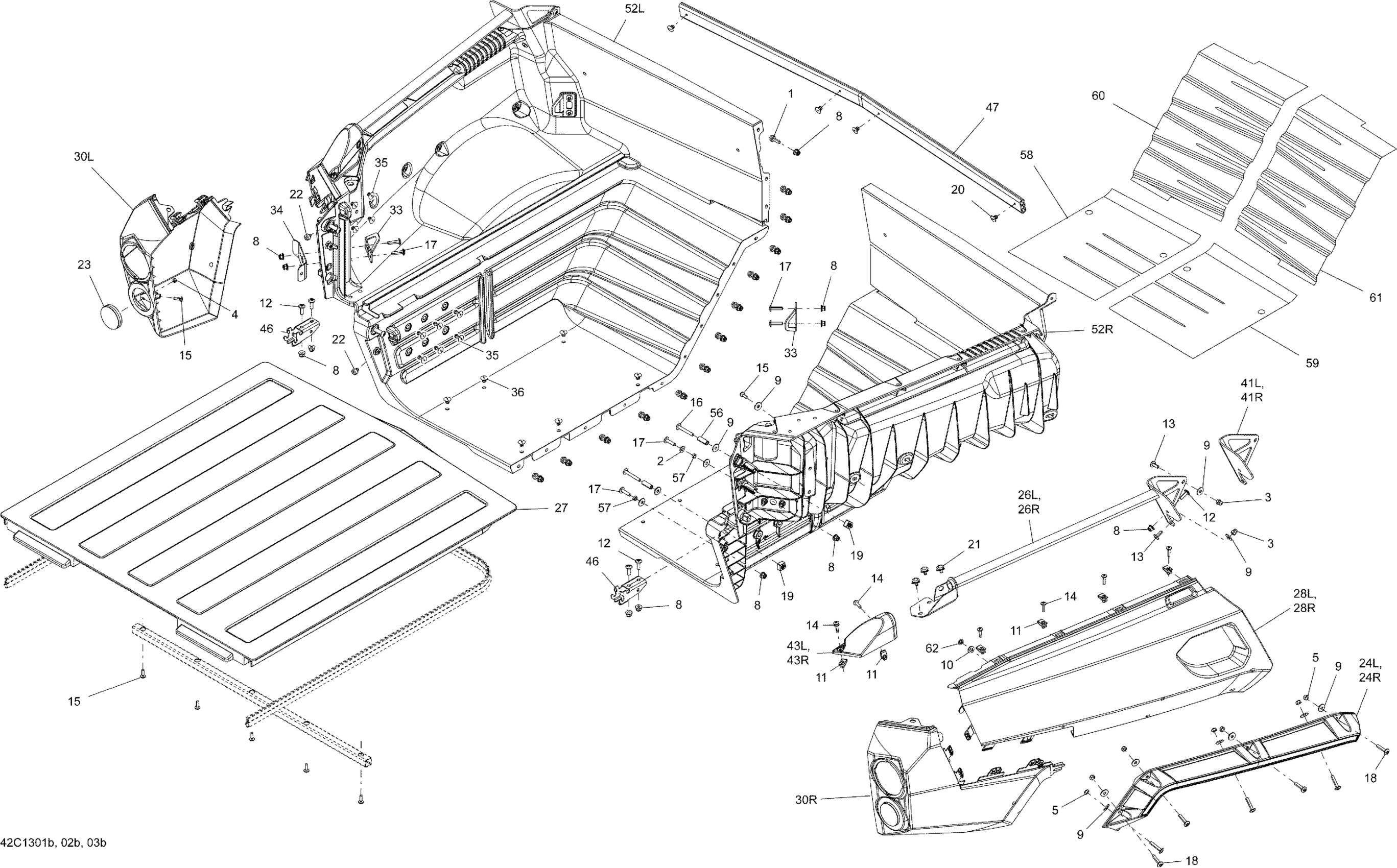

Can-Am Commander STD, DPS, XT, 800R EFI, 2013 09- Rear Cargo Box Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Flat Washer

224061121

$0.53

3

Domed Nut M6

232361493

$2.11

4

Elastic Stop Nut M5

232551414

$0.87

5

Elastic Stop Nut M6

232561434

$1.99

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Stainless Steel Flat Washer

234062670

$2.11

10

Flat Washer 8 mm, Nylon

234081100

$1.39

11

Panel Nut M5 X 0.8

250000958

$4.23

12

Torx Screw M6 X 20

250000722

$1.68

13

Torx Truss Screw M6 X 16

250000721

$1.69

14

Torx Screw M5 X 20

250000724

$1.69

15

Torx Screw K50 X 16

250000720

$1.69

16

Torx Screw M6 X 45

250000215

$1.90

17

Torx Screw M6 x 25

250000284

$2.11

18

Stainless, Torx Screw M6 X 30

250000842

$2.11

19

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

Pop Rivet 3/16 | XT

293150190

$5.89

22

Rubber Bumper

293830005

$8.09

23

Red Reflector

705011221

$14.49

24L

LH Upper Rear Mudguards | LTD

705008671

$34.99

24R

RH Upper Rear Mudguards | LTD

705008673

$34.99

26L

LH Welded Rail | XT

708300231

$74.99

26R

RH Welded Rail | XT

708300232

$74.99

27

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

28L

Yellow LH Rear Fender | STD

708301242

$139.99

28L

LH REAR FENDER, RED - Call your local BRP dealership | XT Red

708300226

Unavailable

28L

FENDER REAR L B-005 - Call your local BRP dealership | XT Camo

708300834

Unavailable

28L

FENDER REAR L B-321 - Call your local BRP dealership | LTD Model

708300838

Unavailable

28L

VIPER RED LH REAR FENDER - Call your local BRP dealership | STD

708301250

Unavailable

28L

REAR FENDER - Call your local BRP dealership | Black Carbon Fiber

708300842

Unavailable

28R

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

28R

Red RH Rear Fender | XT Red

708300827

$139.99

28R

FENDER REAR R B-005 - Call your local BRP dealership | XT Camo

708300835

Unavailable

28R

FENDER REAR R B-321 - Call your local BRP dealership | LTD Model

708300839

Unavailable

28R

Red RH Rear Fender | STD

708300823

$139.99

28R

REAR FENDER - Call your local BRP dealership | Black Carbon Fiber

708300843

Unavailable

30L

LH Rear Facia

708301383

$23.99

30R

RH Rear Facia

708301384

$23.99

33

Retaining Plate

708300183

$9.69

34

Retaining Plate Support

708300206

$5.19

35

Pop Rivet 3/16"

293150100

$1.09

36

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

41L

LH Painted Rail Cap | Except XT

708300333

$15.99

41R

RH Painted Rail Cap | Except XT

708300334

$16.99

43L

LH RAIL COVER - Call your local BRP dealership | XT

708300233

Unavailable

43R

RH RAIL COVER - Call your local BRP dealership | XT

708300234

Unavailable

46

Upper Pivot Support

708300345

$4.79

47

Front Support

708301633

$28.99

52L

Left Box Kit

715002361

$214.99

52R

RH Box Ass'y

715001257

$129.99

56

Spacer

708300736

$9.69

57

Bushing

708300737

$5.99

58

Heat Deflector Sheet

708300809

$10.99

59

Heat Deflector Sheet

708300810

$10.99

60

Heat Deflector Sheet

708300811

$9.69

61

Heat Deflector Sheet

708300812

$10.99

62

Push Nut

732610072

$2.19
