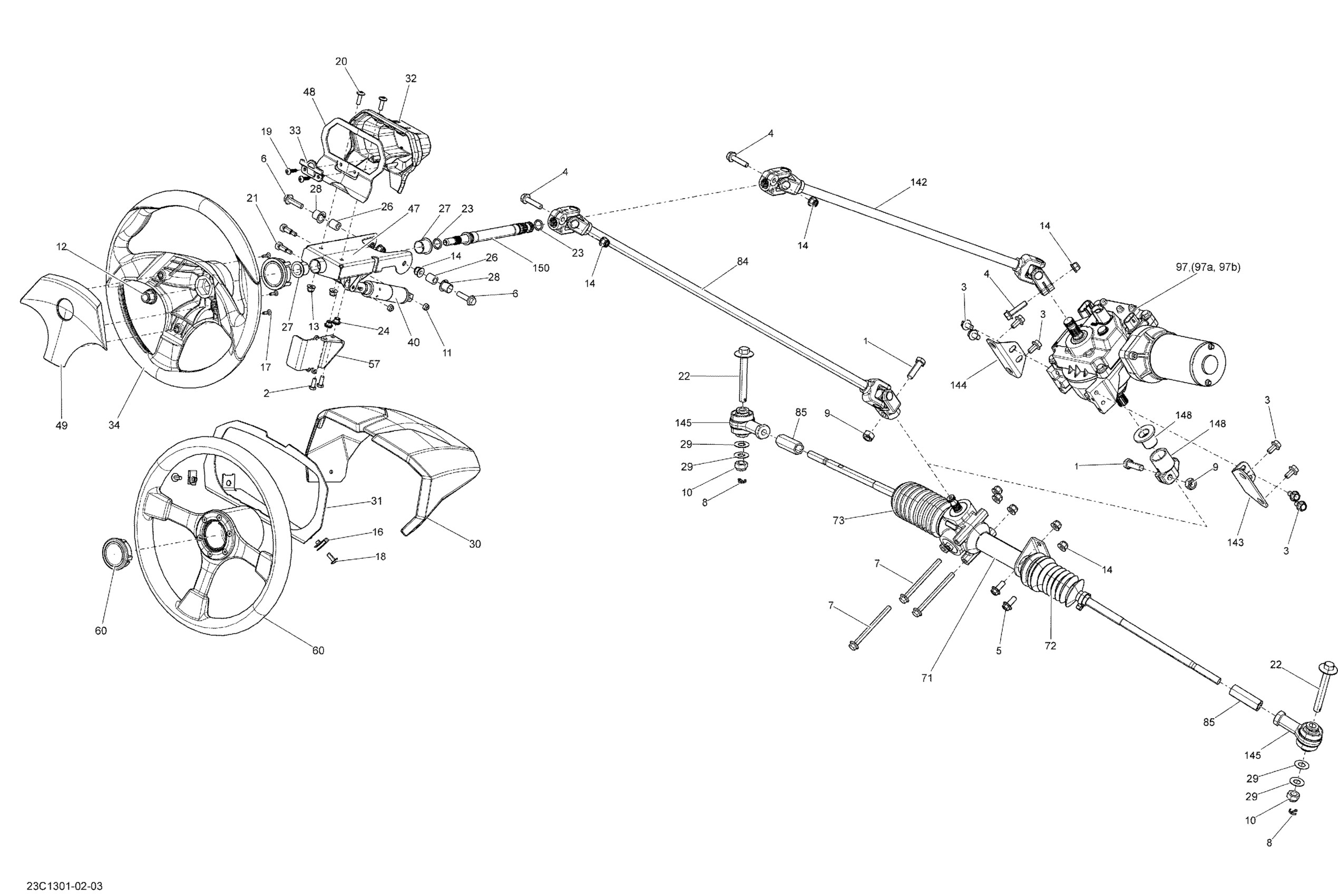

Can-Am Commander STD, DPS, XT, 800R EFI, 2013 07- Steering Diagram

#

Description
Price

1

Hex. Screw M10 X 35

207103586

$1.15

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

3

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

4

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

7

Hex. Flange Screw M8 X 95

207689534

$4.23

8

Cotter Pin

211400017

$0.33

9

Elastic Stop Nut M10

232500416

$1.90

10

Elastic Stop Nut M12

232521416

$1.69

11

Elastic Stop Nut M6

232561414

$0.55

12

Hex. Flange Elastic Nut M12

233221414

$7.69

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Phillips Screw K40 X 16

250000723

$0.98

18

Torx Truss Screw M6 X 16

250000721

$1.69

19

Truss Head Torx Screw K50 X 20

250000297

$2.11

20

Torx Truss Screw M6 X 20

250000350

$5.29

21

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

22

Hexagonal Screw M12 X 88

250000657

$6.77

23

O-Ring

293300144

$3.82

24

Threaded Insert M6 X 1.0

250100242

Unavailable

26

Bushing

293900106

$4.55

27

Steering Bushing

709402725

$3.28

28

Bushing

705600799

$3.72

29

Hardened Washer

706200281

$2.85

30

Upper Cluster Cover | X, XT

707900124

$16.49

31

Cluster Support | X, XT

707900013

$16.49

32

Speedometer Cover

709400514

$16.99

33

Latch Indicator Cover

709400573

$11.99

34

Steering Wheel | STD

709400650

$137.49

40

Adjustment Cylinder

709402506

$72.99

47

Painted Steering Wheel Support

709401391

$85.99

48

Cluster Support | STD

709400760

$21.99

49

Steering Center | STD

709400780

$13.49

57

Flasher Arm Support | Europe

709400810

$29.49

60

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

71

Steering Ass'y | Includes 29 to 31

709401185

$360.49

72

RH BOOT KIT - Call your local BRP dealership

715900078

Unavailable

73

LH BOOT KIT - Call your local BRP dealership

715900077

Unavailable

84

Steering Column

709401389

$199.99

85

NUT TIE ROD END - Call your local BRP dealership

715900150

Unavailable

97

Power Steering Ass'y

709401068

$1,955.99

142

STEERING SHAFT ASS'Y - Call your local BRP dealership

709401070

Unavailable

143

RH DPS SUPPORT - Call your local BRP dealership

709401128

Unavailable

144

LH DPS SUPPORT - Call your local BRP dealership

709401129

Unavailable

145

Ball Joint

709401134

$52.99

148

Coupling Ass'y

709401138

Unavailable

150

Steering Shaft

709401167

$48.99

97a

Not Available As Spare Part - Friction Washer

Unavailable

97b

Not Available As Spare Part - Friction Washer

Unavailable
