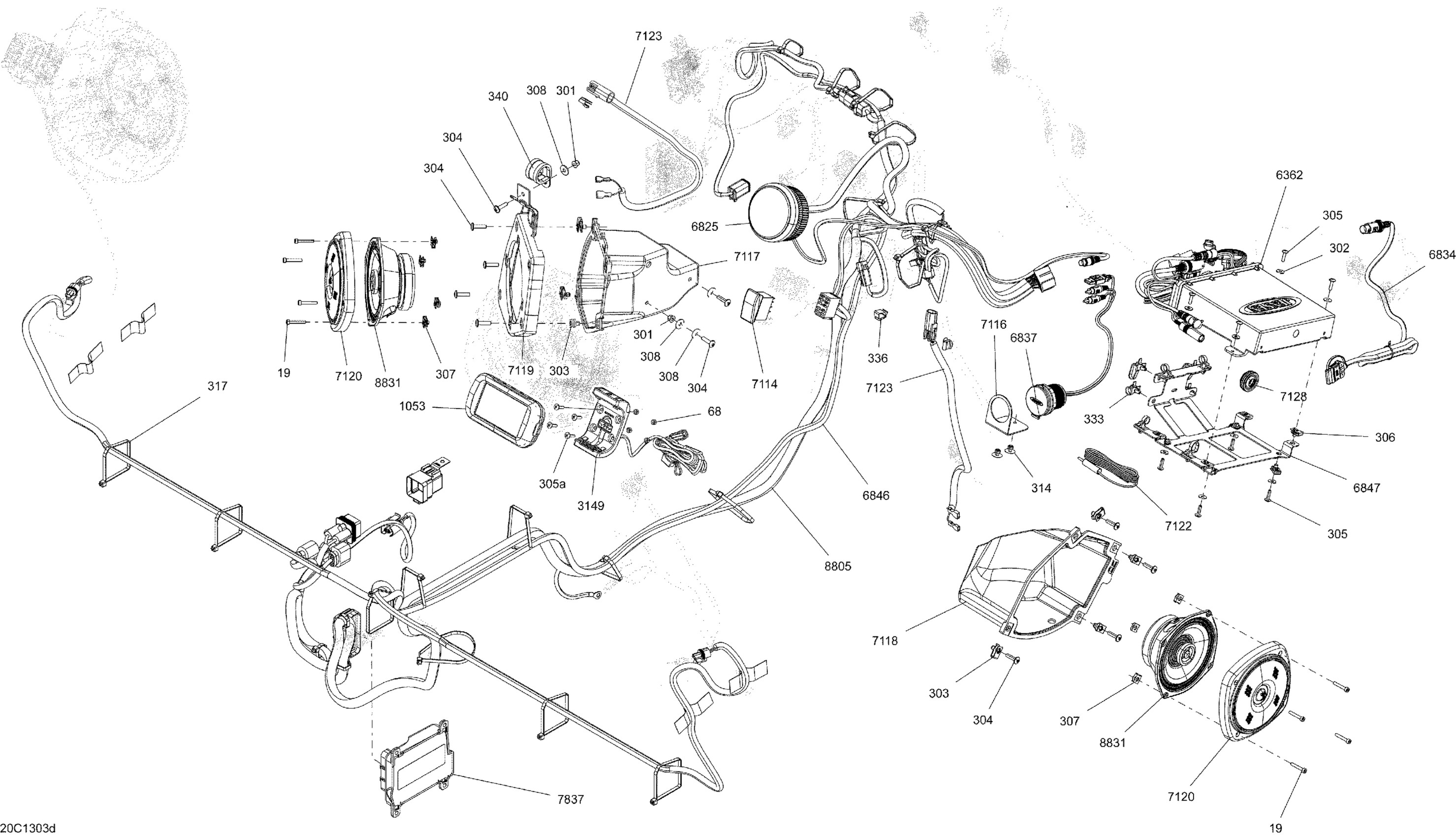

Can-Am Commander LTD 1000, 2013 10- Electrical System Diagram

Socket Head Screw M4 X 25

205042560

$2.22

Elastic Stop Nut M4

232541484

$0.74

Elastic Flange Nut M5

233251494

$2.11

Flat Washer 4 mm, Stainless

234042600

$1.15

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69

Torx Head Screw M4 X 16

250000797

$2.09

Torx Screw M4 X 16

250000750

$1.68

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Washer M5

250200025

$0.74

Pop Rivet 3/16"

293150103

$0.55

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Clip

414227300

$1.67

Hose Anchor

709200036

$11.12

GPS | LTD North America

710002544

Unavailable

Not Available As Spare Parts

XXX

Unavailable

GPS Support | LTD Model

710003210

$214.99

Amplifier

710005442

$462.49

Radio Interface

710002549

$391.99

IPOD EXTENSION - Call your local BRP dealership

710002550

Unavailable

USB Extension

710002551

$139.99

WIRING HARNESS_RADIO - Call your local BRP dealership | Includes 1 to RR

710004064

Unavailable

Amplifier Support

710002556

$114.99

SWITCHED ACCESSORY - Call your local BRP dealership

710002684

Unavailable

USB Extension Support

710002731

$18.49

LH FRONT SPEAKER - Call your local BRP dealership

710004300

Unavailable

RH Speaker HSG

705012293

$16.65

Speaker Box Plate

710002789

$15.36

Speaker Cover

710002790

$13.76

Antenna

710002810

$11.63

Speaker Harness | Includes 1 to S+

710004340

$24.49

Grommet Boot

710002926

$4.69

Calibrated Compressor Module

710002947

$499.99

COMPRESSOR HARNESS - Call your local BRP dealership | LTD

710003005

Unavailable

Front Speaker

710003233

$92.99
