Description

Price

10

RH Swing Arm

703500965

$190.99

20

LH Swing Arm

703500964

$190.99

25

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.91

30

Sway Bar Ass'y | STD, XT

706001500

$185.49

35

Bushing

706001529

$34.99

40

Ball Bearing

293350115

$12.11

50

Spacer

706001350

$10.49

55

Seal

293200094

$10.33

110

LH Joint Protector

706000630

$8.85

120

RH Joint Protector

706000814

$8.85

130a

Rear Shock Ass'y

706001039

$849.99

130b

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

130c

Interior Bushing | OUT XTP

715500361

$33.99

130d

BLACK REAR SPRING - Call your local BRP dealership

706001040

Unavailable

130e

Rear Hose Ass'y

706002299

$83.99

135

Pop Rivet 3/16"

390406500

$0.88

140

Hex. Flange Screw M10 X 55

207605544

$3.38

150

Hex. Flange Elastic Nut M10

233201436

$2.11

160

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

190

Hex. Cap Screw M12 X 241

250001031

$3.81

195

Flat Washer M12

250200120

$2.61

200

Elastic Flange Nut M12

233221416

$2.85

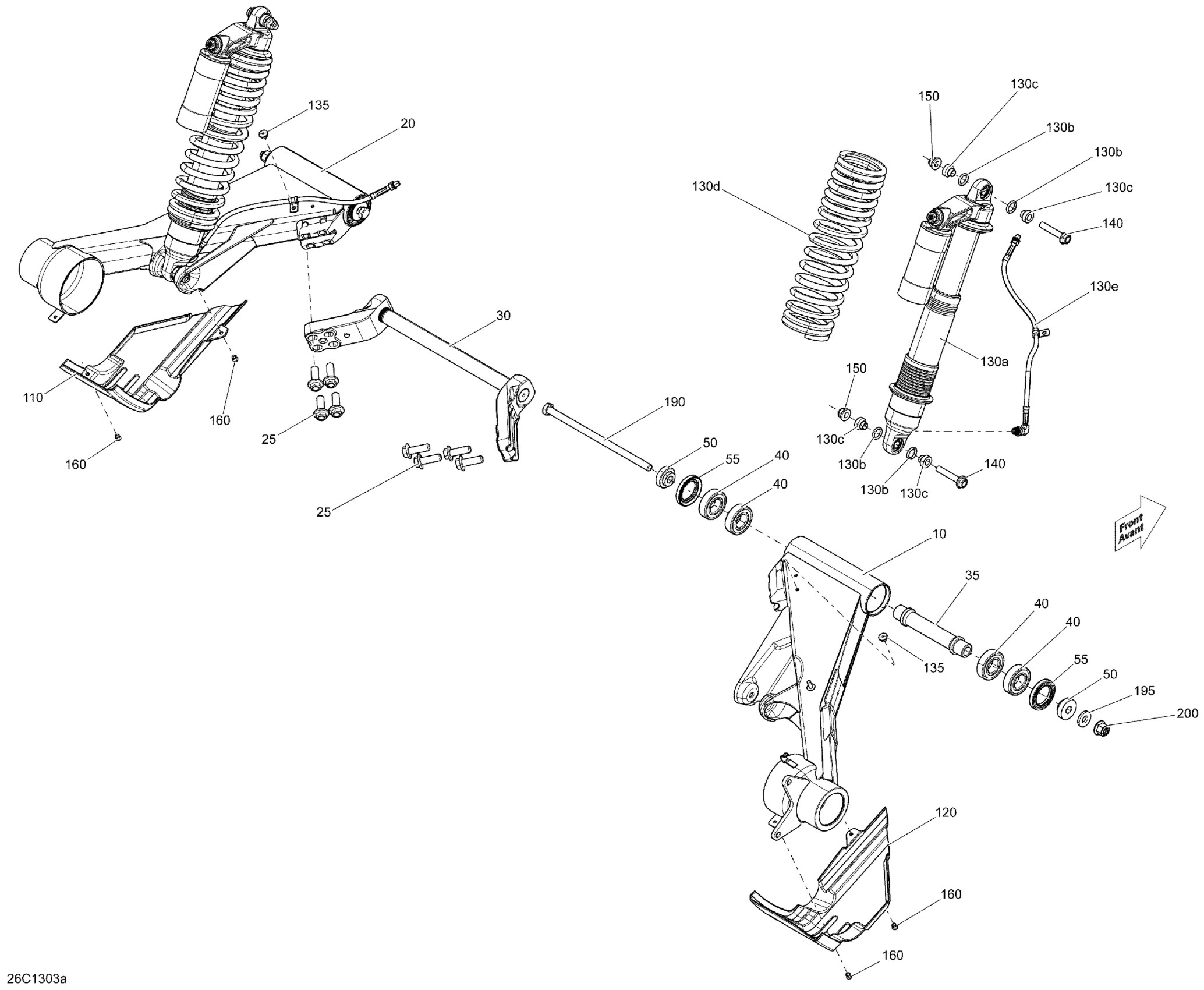

Can-Am Commander LTD 1000, 2013 08- Rear Suspension Diagram
