Description

Price

15

Suspension Upper Arm

706200796

$190.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

35

Bushing

706202445

$14.30

40

Cushion

706201062

$2.30

45

Wear Plate

706201063

$0.95

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Hex. Cap Screw M10 X 225

250001032

$12.64

66

Washer

503190439

$5.93

70

RH Lower Suspension Arm

706200744

$190.99

75

Ball Joint

706202045

$35.99

80

Grease Fitting

408200700

$3.49

100

LH Lower Suspension Arm

706200742

$190.99

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605544

$3.38

130a

Front Shock

706201364

$869.99

130b

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

130c

Interior Bushing | OUT XTP

715500361

$33.99

130d

BLACK SPRING - Call your local BRP dealership

706201473

Unavailable

130e

Front Hose Ass'y

706202444

$83.99

130f

Clamp

293650256

$5.49

160

RH Protector

706201670

$17.54

190

LH Protector

706201669

$17.54

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605044

$5.29

270

Hex. Flange Elastic Nut M10

233201414

$1.58

400a

LH Hose Ass'y

706201997

$174.99

400b

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

410a

RH Hose Ass'y

706201999

$174.99

410b

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

420

Tie Wrap 142 mm

293750002

$1.25

430

Hex. Forming Screw M5 X 16

210251650

$1.15

435

Elastic Flange Nut M5

233251494

$2.11

450

Tie-Rap 180 mm

414115200

$0.11

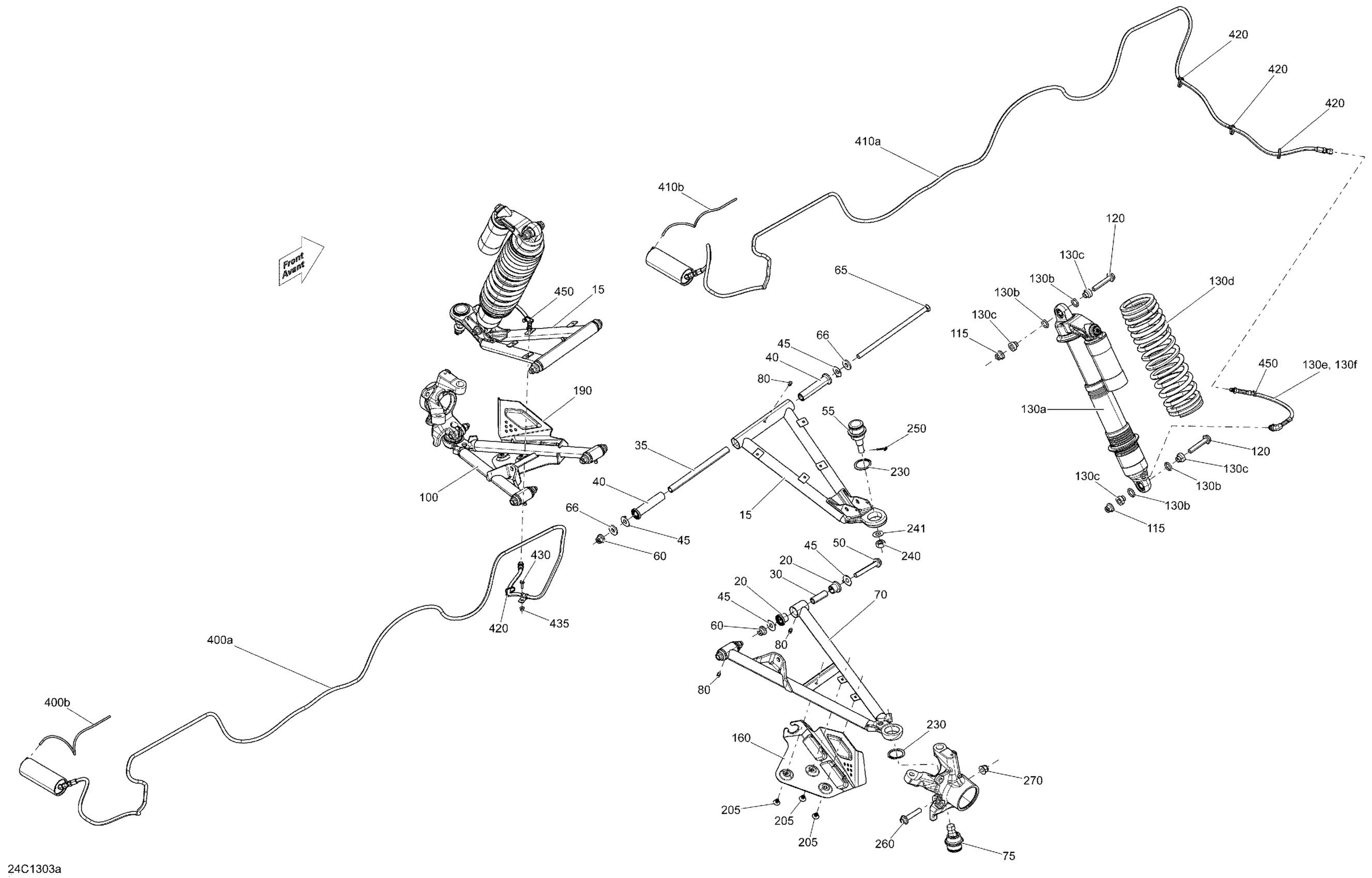

Can-Am Commander LTD 1000, 2013 07- Front Suspension Except Europe Diagram

Suspension Upper Arm

Suspension Arm Bushing Kit | Includes 4

Suspension Arm Bushing Kit | Includes 4

Bushing

Cushion

Wear Plate

Hex. Flange Screw M10 X 70

Ball Joint

Hex. Flange Elastic Nut M10

Hex. Cap Screw M10 X 225

Washer

RH Lower Suspension Arm

Ball Joint

Grease Fitting

LH Lower Suspension Arm

Hex. Flange Elastic Nut M10

Hex. Flange Screw M10 X 55

Front Shock

O-RING BUSHING - Call your local BRP dealership | OUT XTP

Interior Bushing | OUT XTP

BLACK SPRING - Call your local BRP dealership

Front Hose Ass'y

Clamp

RH Protector

LH Protector

Pop Rivet 3/16" | DS 650 X

Circlip

Nut M12

Hardened Washer

Cotter Pin

Hex. Flange Screw M10 X 50

Hex. Flange Elastic Nut M10

LH Hose Ass'y

HOSE 4.0MM - Call your local BRP dealership

RH Hose Ass'y

HOSE 4.0MM - Call your local BRP dealership

Tie Wrap 142 mm

Hex. Forming Screw M5 X 16

Elastic Flange Nut M5

Tie-Rap 180 mm
