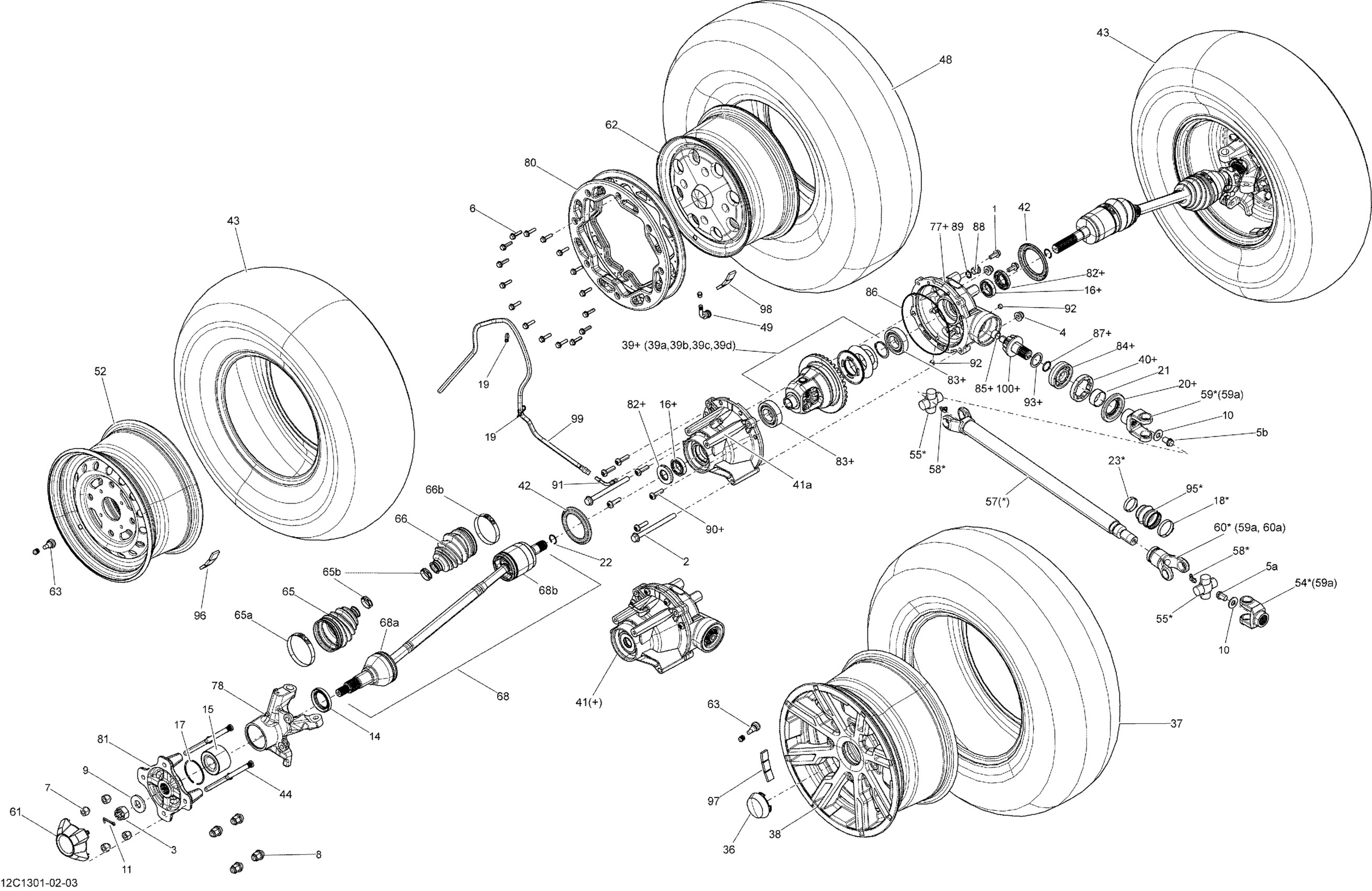

Can-Am Commander LTD 1000, 2013 07- Drive System, Front Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2

Hex. Flange Screw M10 X 125

230602546

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5a

Hex Flange Screw M12 X 16

250001039

$2.11

5b

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

6

Hex. Flange Screw M6 X 25

250000787

$2.22

7

Not Available As Spare Parts

XXX

Unavailable

8

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

9

Conical Spring Washer M18

250200171

$7.65

10

Flat Washer M12

250200102

$2.11

11

Cotter Pin

250400036

$2.11

14

O-Ring

293250246

$7.51

15

Ball Bearing

293350150

$52.99

16

Ball Bearing | 4X4

293350044

$31.99

17

Circlip

293370019

$4.68

18

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

19

Tie Wrap 142 mm

293750002

$1.25

20

Oil Seal | 4X4

705401481

$19.49

21

Wear Ring | 4X4

705400036

$26.49

22

Circlip Joint | Not shown

705401349

$6.50

23

Oetiker Gear Clamp 36.1MM

509000045

$8.29

36

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

37

Front Tire

705402168

$248.99

37

Front Tire | XT Europe

705400961

$248.99

38

RIM_14 INCH X 7 - Call your local BRP dealership

705401380

Unavailable

39

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

39a

Pinion Gear Shim 1.67 mm

705502061

$18.99

39b

Pinion Gear Shim .022"

705500075

Unavailable

39c

Shim | 4X4

705401604

$57.99

39d

Shim | 4X4

705401604

$57.99

40

Nut | 4X4

705401603

$35.99

41

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

41a

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

42

Wear Sleeve

705400780

$7.90

43

Not Available As Spare Parts

XXX

Unavailable

44

Wheel Stud

705401964

$11.06

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

54

COUPLING YOKE - Call your local BRP dealership

715900121

Unavailable

55

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

57

Axle Drive Ass'y | Includes 1 to 7

705400915

$307.49

58

Grease Fitting

715900184

$5.24

59

Fixed Yoke Joint

715900116

$59.49

59a

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

60

SPLINE YOKE - Call your local BRP dealership

715900120

Unavailable

60a

Not Available As Spare Part - Friction Washer

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable

63

Rim Valve With Cap

705400193

$8.69

65

Boot Kit, Wheel Side

705401354

$42.49

65a

Oetiker Clamp, Large

715900260

$10.33

65b

Oetiker Clamp, Small

715900261

$5.29

66b

Oetiker Clamp, Large

715900262

$10.33

66

Boot Kit, Différential Side

705401355

$42.49

68

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$243.99

68

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$243.99

68a

JOINT_CV EXT - Call your local BRP dealership

705401353

Unavailable

68b

LH Plunging CV Joint

715900396

$259.49

68b

RH Plunging CV Joint

715900395

$259.49

77

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

78

LH Front Knuckle

705401548

$132.49

78

RH Front Knuckle

705401549

$104.99

80

Not Available As Spare Parts

XXX

Unavailable

81

Wheel Hub

705401314

$132.49

82

Gasket | 4X4

705401618

$18.49

83

Ball Bearing | 4X4

705401606

$51.99

84

Ball Bearing | 4X4

705500260

$31.99

85

Needle Bearing | 4X4

705500261

$19.99

86

Seal | 4X4

705500265

$18.76

87

O-Ring | 4X4

705500267

$7.65

88

Fill Level Plug | 4X4

705500504

$10.01

89

Copper Washer | 4X4

705500506

$0.45

90

Screw | 4X4

705401601

$10.49

91

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

92

Drain Plug | 4X4

705500894

$11.49

93

Pinion Gear Shim

705501162

$16.49

95

Rubber Boot

715900118

$14.30

96

1/2 Oz Weight

219704465

$3.89

97

1/2 Oz Weight

219704465

$3.89

98

1/2 Oz Weight

219704465

$3.89

99

Polyurethane Hose 10000Mm Long

219704410

$56.99

100

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable
