Description

Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

3

Hex. Flange Screw M8 X 35

207683544

$1.69

4

Hex. Flange Nut M8

233081416

$1.15

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Panel Nut M6 X 1.0

250100198

$2.11

9

Flat Washer

250200082

$0.42

10

Bushing

293900106

$4.55

11

Spring

415107100

$6.35

12

Spring

415107100

$6.35

14

Washer

503032900

$3.28

16

Bushing

707000882

$4.29

17

Gasket

707600317

$11.60

22

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 12 to 16

707600545

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Rubber Bumper

707600638

$15.81

31

Deflector

707600675

$43.99

32

Vibration Damper

707603323

$11.65

33

Anti-Vibration Rubber

707600702

$8.57

41

Front Head Pipe

707601013

$269.99

45

Link Head Pipe

707601020

$269.99

47

Exhaust Gasket

707601033

$13.77

49

Rear Head Pipe

707601016

$264.99

51

Grommet

709200285

$9.69

22a

Spark Arrestor

707601803

$49.99

22b

Gasket

715900090

$13.69

22c

Muffler Outlet End Piece

715900091

$35.99

22d

Socket Head Screw M6 X 20

205062060

$2.32

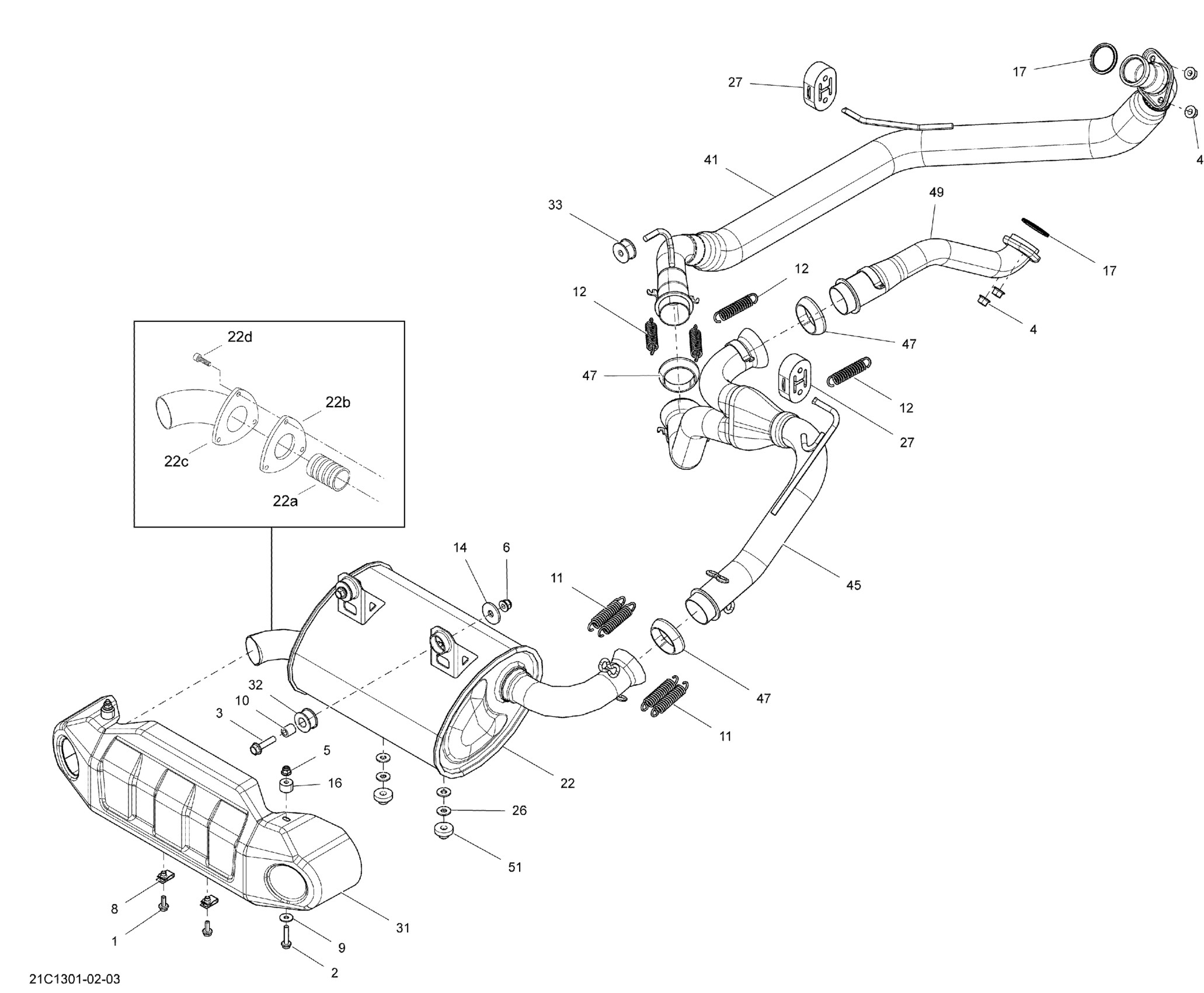

Can-Am Commander LTD 1000, 2013 01- Exhaust System Diagram

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Screw M8 X 35

Hex. Flange Nut M8

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M8

Panel Nut M6 X 1.0

Flat Washer

Bushing

Spring

Spring

Washer

Bushing

Gasket

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 12 to 16

Not Available As Spare Part - Friction Washer

Rubber Bumper

Deflector

Vibration Damper

Anti-Vibration Rubber

Front Head Pipe

Link Head Pipe

Exhaust Gasket

Rear Head Pipe

Grommet

Spark Arrestor

Gasket

Muffler Outlet End Piece

Socket Head Screw M6 X 20
