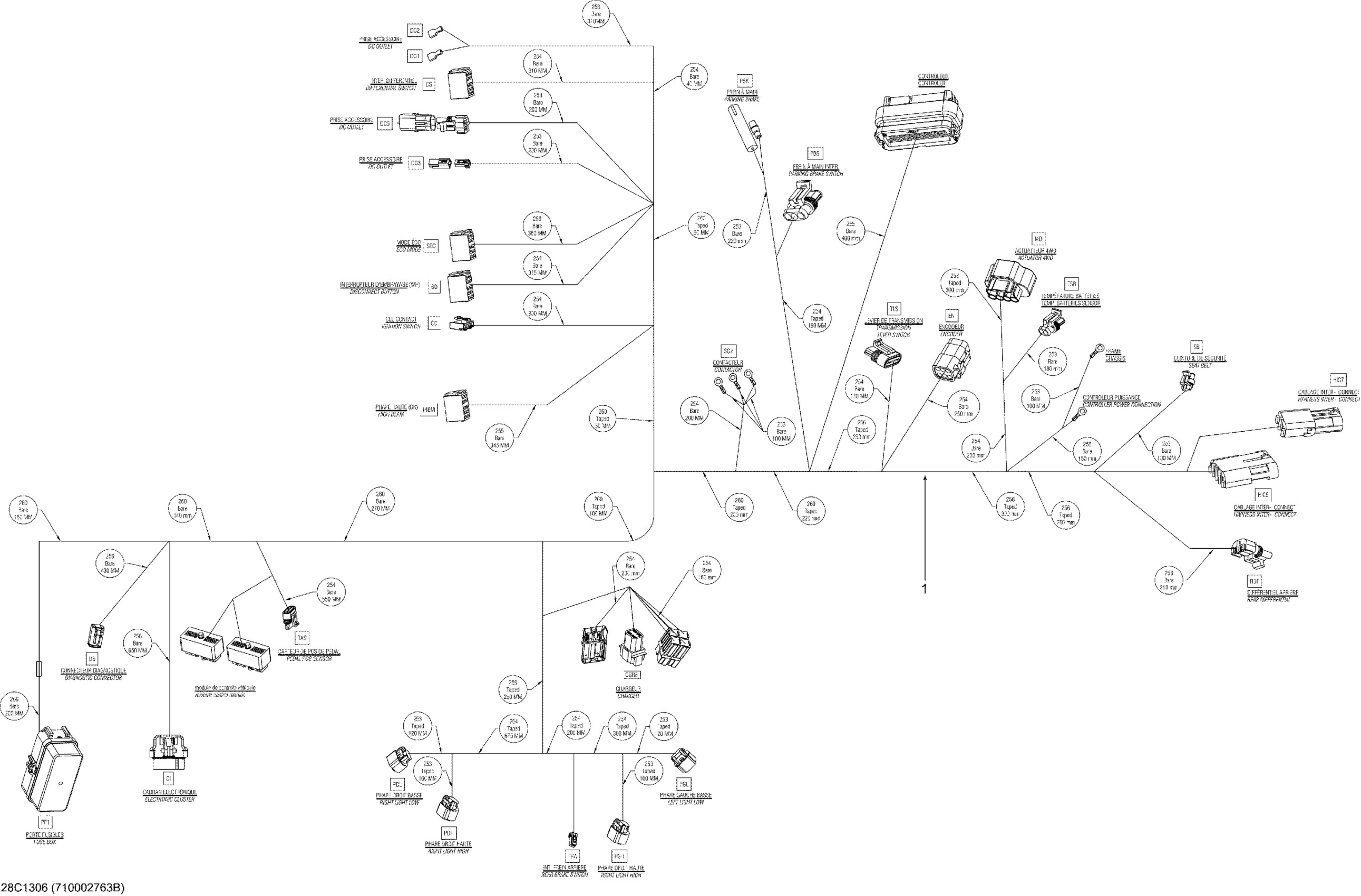

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 10- Main Harness Diagram

#

Description
Price

1

WIRING HARNESS ASSY - Call your local BRP dealership

710003770

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

258

Tubing 10 MM 1000MM Long

219704407

$2.79

260

Was 515175319 Tubing 22 mm

219704423

$14.99

BD

Terminal

710001931

$2.09

BD

Housing Connector

710002001

$13.71

CC

Female Terminal

710000274

$9.59

CC

Lock

710000848

$3.19

CC

Male Housing, 6 Circuits

710000849

$9.69

CC

Female Terminal

710000918

$7.69

CI

Plug

515175812

$2.19

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

Wire Seal

515175803

$2.99

CI

Female Housing

710000399

$16.49

CI

Female Terminal

710001131

$8.89

CGR8

Male Terminal

278000631

$4.39

CGR8

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

CGR8

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

CGR8

Sealing Cap

293000052

$3.19

DB

Male Housing, 6 Circuits

515175673

$15.49

DB

Male Wedge, 6 Circuits

515175678

$5.39

DB

Female Terminal

278001665

$4.55

DC1

Female Terminal

409010700

$5.39

DC1

Female Terminal

409010800

$0.99

DC2

Female Terminal

409010800

$0.99

DC3

Female Terminal

515175231

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Male Housing, 2 Circuits

710000667

$8.32

DC6

Female Terminal

409007300

$0.45

DC6

Female Housing, 2 Circuits

278000217

$9.59

DC6

Male Connector, 2 Circuits

278000220

$15.49

DC6

Wire Seal

278000218

$4.39

DC6

Wire Seal

278000216

$3.19

DC6

Clip

710000992

$4.29

DS

Female Terminal

409010700

$5.39

DS

Terminal

710001931

$2.09

DS

Housing

710002000

$7.90

EN

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

EN

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

EN

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

FRA

Female Terminal

515175231

$4.39

FRA

Female Housing, 2 Circuits

515175658

$16.18

HIBM

Terminal

710001931

$2.09

HIBM

Housing

710002000

$7.90

HIC5

Male Terminal | XT Models

278000222

$3.19

HIC5

Wire Seal

278001065

$7.69

HIC5

Clip

710000992

$4.29

HIC7

Male Terminal

409004300

$5.61

HIC7

Female Housing, 2 Circuits

278000217

$9.59

HIC7

Wire Seal

278000218

$4.39

HIC7

Clip

710000992

$4.29

MD

Cap

710000080

$8.29

MD

Male Housing, 4 Circuits

710000329

$15.36

MD

Female Terminal

710000335

$2.29

MD

Wire Seal

710000402

$4.55

PBK

Male Terminal

278000230

$4.39

PBK

Female Terminal | DS 650 X

278001009

$3.19

PBK

Insulated Sheath

278001008

$3.28

PBK

Insulated Sheath

278001007

$3.58

PBS

Female Terminal

278001014

$3.28

PBS

Female Housing, 3 Circuits

409209600

$35.99

PBS

Wire Seal

278001013

$3.28

PBS

Wire Seal

515176621

$7.49

PDH

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PDH

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PDH

Wire Seal

710001427

$2.09

PDL

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PDL

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PDL

Wire Seal

710001427

$2.09

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Little Fuse, 5 Amperes

710000742

$8.79

PF1

Little Fuse, 7.5 Amperes

710000743

$8.49

PF1

Little Fuse, 10 Amperes

710000744

$8.79

PF1

Little Fuse, 15 Ampere

710000745

$8.49

PF1

Little Fuse, 30 Amperes

710000747

$8.49

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Fuse Puller

710000781

$8.09

PF1

Female Terminal

710000836

$5.61

PF1

Female Terminal

710000837

$5.39

PF1

Cap

710000840

$5.89

PF1

FEMALE TERMINAL - Call your local BRP dealership

278002164

Unavailable

PF1

Fuse Cover

710001026

$21.99

PF1

Foam

278002172

$5.89

PF1

Relay, 30 AMP

515176774

$21.99

PF1

Relay

715900824

$21.99

PF1

Fuse, 25 Amps

710002590

$19.49

PGH

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PGH

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PGH

Wire Seal

710001427

$2.09

PGL

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

PGL

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

PGL

Wire Seal

710001427

$2.09

RDF

Female Terminal

409007300

$0.45

RDF

Male Connector, 2 Circuits

278000220

$15.49

RDF

Wire Seal

278000218

$4.39

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SC2

Open Barrel

278000992

$2.21

SEC

Terminal

710001931

$2.09

SEC

Housing

710002000

$7.90

TAS

Female Terminal

710001119

$5.39

TAS

Female Terminal Housing 6 Circuits

278002299

$9.10

TLS

Female Terminal

710001119

$5.39

TLS

Female Terminal Housing 6 Circuits

278002299

$9.10

TSB

Female Terminal

278001014

$3.28

TSB

Female Housing, 2 Circuits

409209500

$15.27

TSB

Wire Seal

278001013

$3.28
