Description

Price

61

Hex. Flange Elastic Nut M8

233281414

$1.47

62

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

170

REAR DIFFERENTIAL SUPPORT - Call your local BRP dealership

705202876

Unavailable

172

Hex. Flange Elastic Nut M8

233281414

$1.47

174

Inferior Differential Support

705203273

Unavailable

175

RH Inferior Differential Support

705203274

Unavailable

176

LH Inferior Differential Support

705203275

Unavailable

177

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

178

Flat Washer 10 mm

234001410

$1.26

180

Hex. Flange Elastic Nut M10

233201436

$2.11

230

Hemlock Rivet, 6.5 mm

293150096

$3.27

2000

Battery Tray Bracket

705202883

$15.99

2010

Front Support, Battery

705203127

$71.99

2020

LH Tray, Battery

705202871

$98.99

2030

RH Tray, Battery

705202874

$98.99

2035

Rear Tray, Battery

705202882

$63.99

2040

LH Rear Bracket

705202880

$19.99

2045

RH Rear Bracket

705202881

$19.99

2050

Rear Bracket

705202878

$27.99

2060

Front Bracket

705202875

$18.49

2070

Insert

293450275

$12.99

2090

Support

705202867

$55.99

2100

Slider Shoe, Battery

705202925

Unavailable

2110

PAD - Call your local BRP dealership

293830152

Unavailable

2120

Threaded Insert M6 X 1.0

250100242

Unavailable

2130

Torx Truss Screw M6 X 16

250000348

$2.11

2140

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2150

Hex. Flange Screw M6 X 16

207661644

$0.74

2160

Socket Screw M6 X 16

205061660

$1.48

2170

Flat Washer

224061201

$1.37

2180

Hex. Flange Screw M6 X 20

207662044

$2.00

2190

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2200

Pop Rivet 3/16"

390406500

$0.88

2220

RH Side Angle

705203280

$20.99

2230

LH Side Angle

705202840

$20.99

2240

Base Plate

705203356

Unavailable

2250

Support

705202885

$38.99

2260

Support

705202890

$38.99

2280

SUPPORT - Call your local BRP dealership

705203948

Unavailable

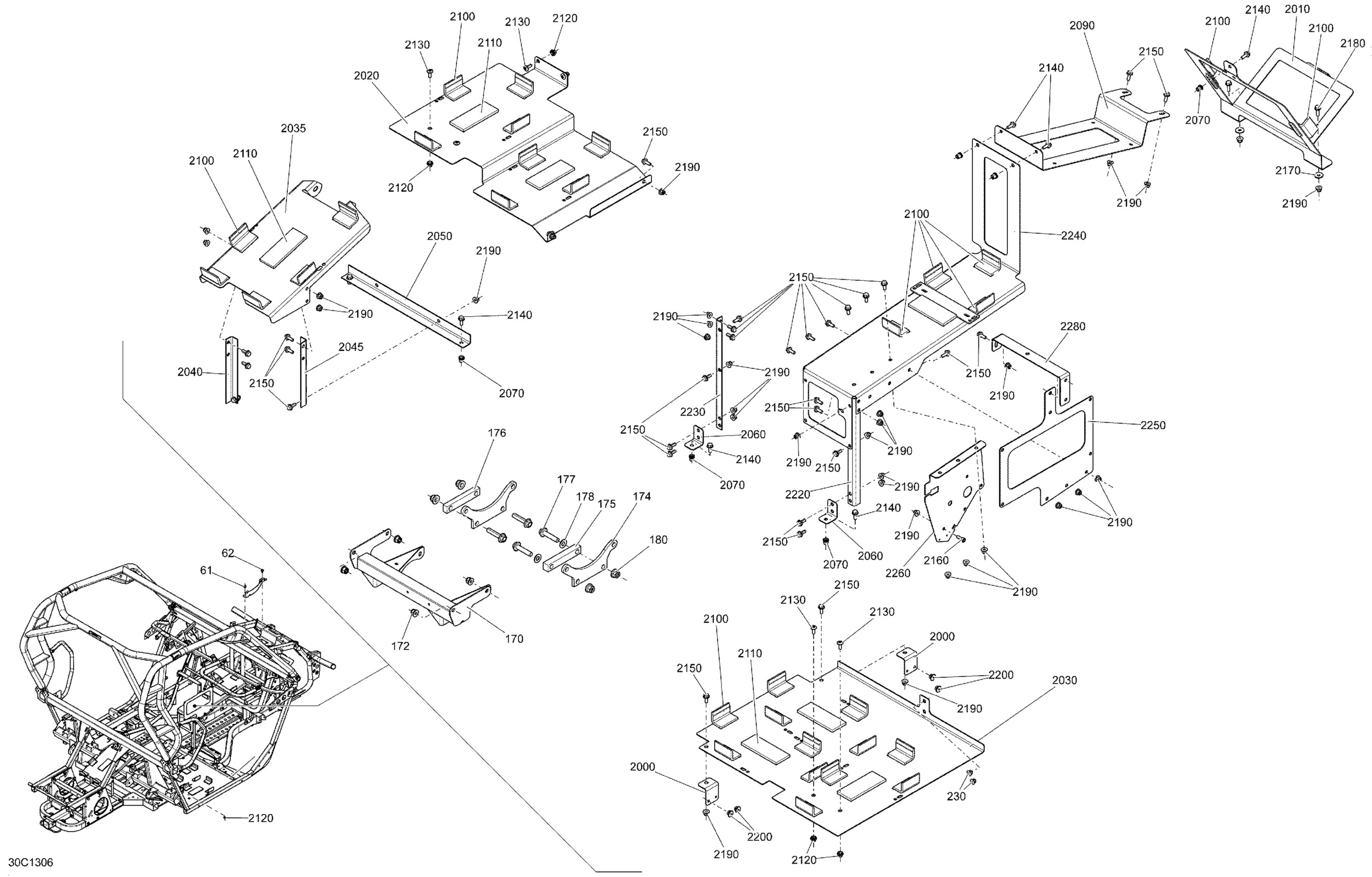

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 09- Frame Diagram

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 16, Scotch Grip

REAR DIFFERENTIAL SUPPORT - Call your local BRP dealership

Hex. Flange Elastic Nut M8

Inferior Differential Support

RH Inferior Differential Support

LH Inferior Differential Support

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

Flat Washer 10 mm

Hex. Flange Elastic Nut M10

Hemlock Rivet, 6.5 mm

Battery Tray Bracket

Front Support, Battery

LH Tray, Battery

RH Tray, Battery

Rear Tray, Battery

LH Rear Bracket

RH Rear Bracket

Rear Bracket

Front Bracket

Insert

Support

Slider Shoe, Battery

PAD - Call your local BRP dealership

Threaded Insert M6 X 1.0

Torx Truss Screw M6 X 16

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 16

Socket Screw M6 X 16

Flat Washer

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Pop Rivet 3/16"

RH Side Angle

LH Side Angle

Base Plate

Support

Support

SUPPORT - Call your local BRP dealership
