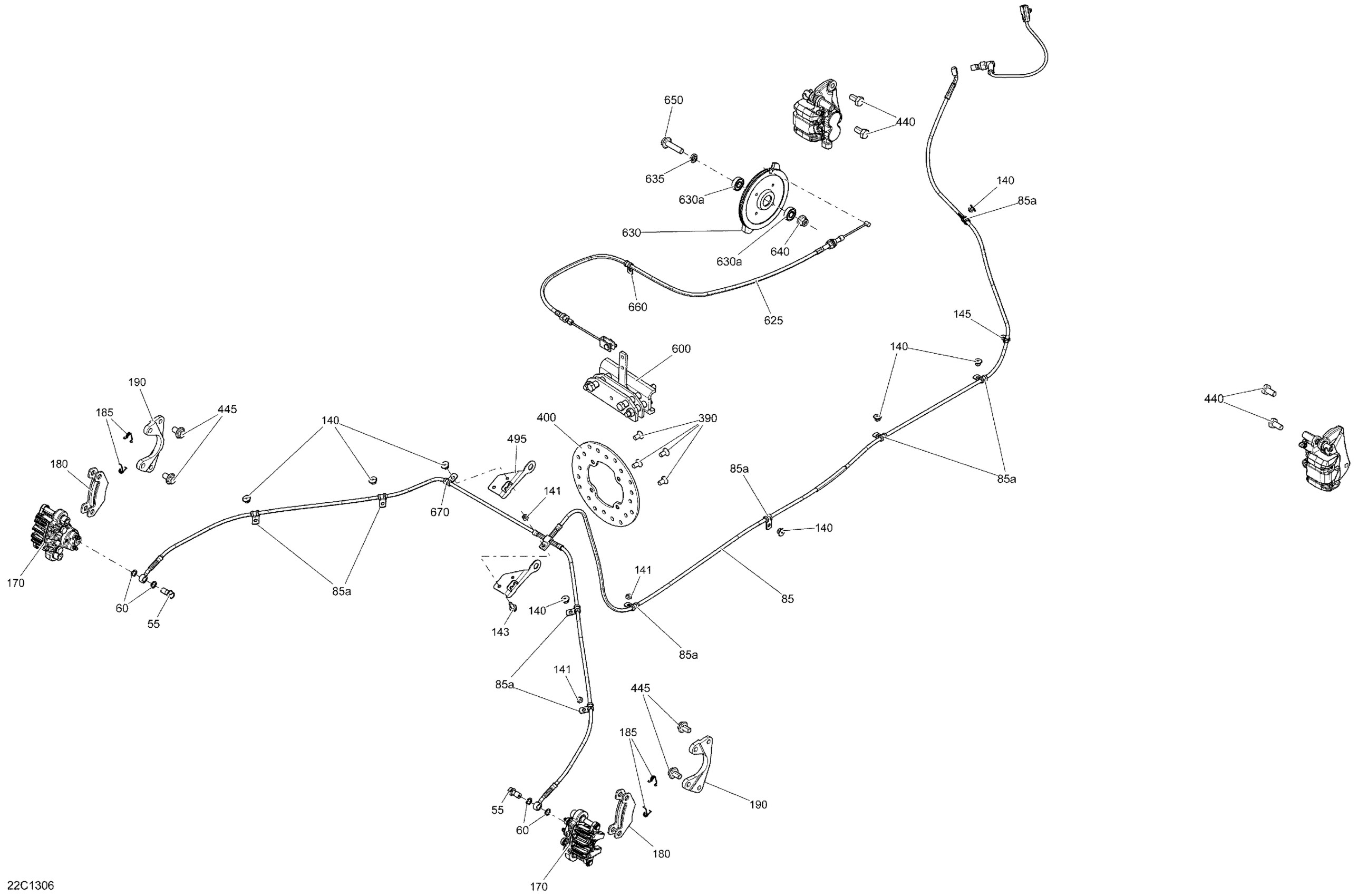

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 06- Brakes Diagram

Description

Price

Banjo Bolt

705600628

$11.63

Copper Washer

705601628

$4.44

FLEXIBLE HOSE - Call your local BRP dealership | Includes 85 to 85a

705601488

Unavailable

85a

Clamp

293650256

$5.49

140

Pop Rivet 3/16"

390406500

$0.88

141

Elastic Stop Nut M6

232561414

$0.55

143

Hex. Flange Screw M6 X 16

207661644

$0.74

145

Tie-Rap 180 mm

414115200

$0.11

170

REAR CALIPER - Call your local BRP dealership

705601056

Unavailable

180

Brake Pad Kit

705600711

$50.99

185

SPRING - Call your local BRP dealership

705601167

Unavailable

190

Rear Caliper Support

705601057

$164.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Disk Brake

705600604

$50.99

440

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.29

445

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

495

Bracket

705601111

Unavailable

600

CALIPER - Call your local BRP dealership

705601112

Unavailable

625

BRAKE CABLE - Call your local BRP dealership

705601071

$18.49

630

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$89.99

630a

Bearing

705600458

$19.99

635

Bushing

293900087

$7.90

640

Hex. Flange Elastic Nut M10

233201436

$2.11

650

Hex. Flange Screw M10 X 40

207604044

$2.11

660

Clamp

293650256

$5.49

670

Clamp

293650256

$5.49
