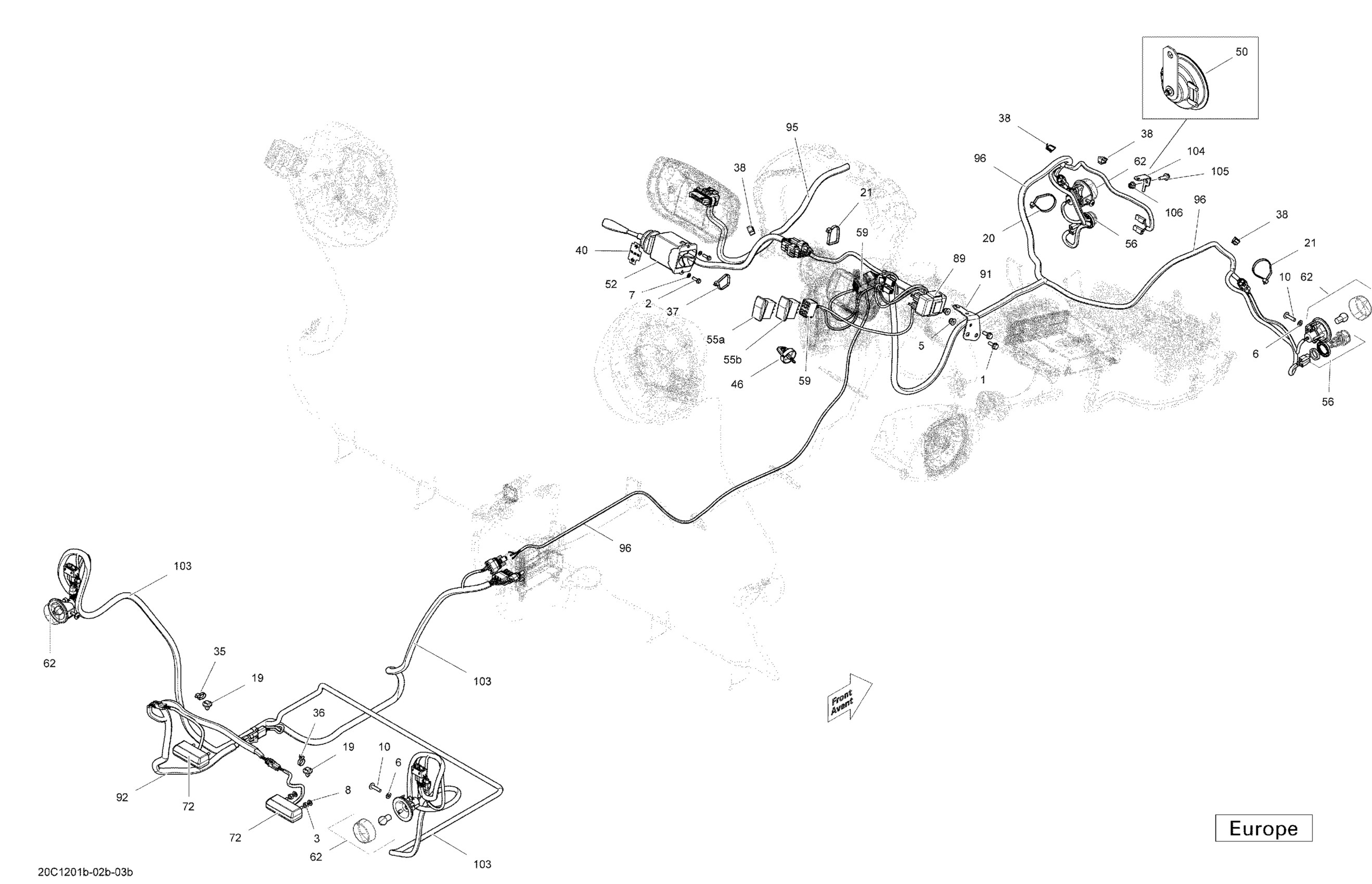

Can-Am Commander STD, XT, X, 1000 EFI, 2012 10- Electrical System Europe Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Forming Screw M5 X 16

210251650

$1.15

3

Hex. Nut M6

232061600

$1.15

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Flat Washer 6 mm

234061410

$1.36

7

Lock Washer 5 mm | Europe

234151401

$0.55

8

Lock Washer Helical M6

234161601

$1.15

10

Torx Screw M6 x 25

250000284

$2.11

19

Mount Dart

293730040

$1.04

20

Tie Wrap 368 mm

293750008

$1.04

21

Tie Wrap 368 mm

293750008

$1.04

35

Tie-Rap 180 mm

414115200

$0.11

36

Tie-Rap 180 mm

414115200

$0.11

37

Tie-Rap 180 mm

414115200

$0.11

38

Clip

414227300

$1.67

40

Flasher Decal | Europe

704902614

$19.99

46

Black, Electronic Key

710000817

$63.49

50

Horn

710004791

$38.99

52

Turn Signal | Europe

710001721

$209.99

56

Day Light | Europe

710001726

$35.99

59

Wiring Harness Ass'y

710002625

$1,079.99

62

Flasher | Europe

710002047

$32.99

72

License Light

710002055

$58.49

89

Flasher Unit

710003239

$78.49

91

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

92

Tail Gate Harness Ass'y

710002220

Unavailable

95

Wiring Harness Ass'y

710002625

$1,079.99

96

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable

103

Rear Harness | Except Europe

710003219

$159.99

103

Rear Harness

710003220

$229.99

104

SUPPORT - Call your local BRP dealership

709200284

Unavailable

105

Hex. Flange Screw M6 X 20

207662044

$2.00

106

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55a

Hi/Low Switch | Except Europe

710001725

$21.49

55b

Switch Hazard | Europe

710002076

$19.49
