Description

Price

1

Hex. Screw M4 X 25

207142544

$2.00

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Nut M6

232061600

$1.15

7

Elastic Stop Nut M4

232541414

$0.58

8

Elastic Stop Nut M6

232561414

$0.55

9

Hex. Flange Nut M6

233061414

$1.68

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Flat Washer M5

234051410

$0.53

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer Helical M6

234161601

$1.15

14

External Serrated Lock Washer 6 mm

234461608

$1.15

15

Hex. Screw K50 X 45

241154540

$2.11

16

Phillips Screw K40 X 16

250000723

$0.98

17

Torx Screw M6 X 16

250000223

$2.11

18

Lock Washer Serrated M6

250200041

$1.15

19

Clip

270000141

$11.49

20

GROUND CABLE - Call your local BRP dealership

710002147

Unavailable

24

Diagnostic Connector

278002704

$19.49

28

Pop Rivet 3/16"

293150103

$0.55

31

Tie Wrap 368 mm

293750008

$1.04

31

Tie-Rap 180 mm

414115200

$0.11

31

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Tie-Rap 173 mm

293750009

$1.04

49

Pop Rivet 3/16"

390402400

$0.35

70

Clip

414227300

$1.67

84

Grey, Electronic Key

710002183

$63.49

85

Black, Electronic Key

710000817

$63.49

91

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

96

RH Low Front Housing

710001081

$19.99

96

LH Low Front Housing

710001083

$19.99

97

RH Low Rear Housing

710001082

$12.99

97

LH Low Rear Housing

710001084

$12.99

100

RH High Front Housing

710001085

$19.99

100

LH High Front Housing

710001087

$19.99

101

RH High Rear Housing

710001086

$12.99

101

LH High Rear Housing

710001088

$12.99

104

RH Low Light Support

710001094

$9.09

104

LH Low Light Support

710001037

$9.09

105

RH High Light Support

710001115

$5.29

105

LH High Light Support

710001036

$5.29

112

Setting Screw

710001147

$12.71

114

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

116

DC Outlet

710001248

$37.99

119

Starter Relay

710007777

$48.49

290

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

377

Bulb

520000758

$9.10

380

Battery Support

710003129

$48.99

381

Battery Holder

710001916

$21.99

382

Fuse Holder

710003335

$10.11

386

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

390

Positive Cable

710004383

$42.99

411

Ignition Switch

710008400

$78.49

580

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

581

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

3249

Engine Start Button

710002594

$60.49

388a

Switch, Over ride

710002053

$19.49

388b

4X4 Switch

710001737

$31.99

388c

PPS Sport Switch

710002199

$19.49

580a

Halogen Bulb

415129249

$41.49

581a

Halogen Bulb

415129249

$41.49

91a

Battery Bolt Kit

250000282

$7.29

A

Wiring Harness Ass'y

710002625

$1,079.99

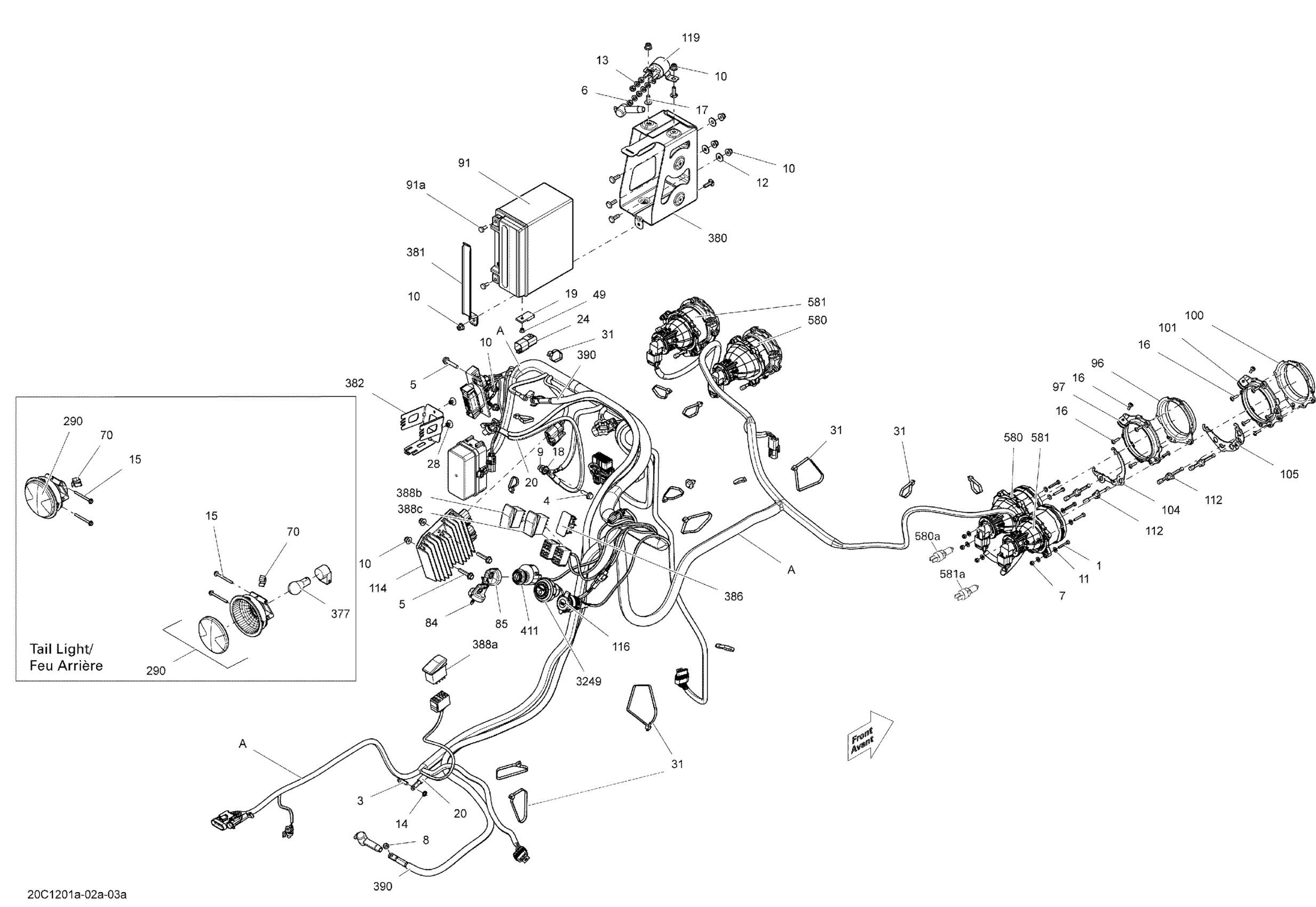

Can-Am Commander STD, XT, X, 1000 EFI, 2012 10- Electrical System Diagram

Hex. Screw M4 X 25

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Nut M6

Elastic Stop Nut M4

Elastic Stop Nut M6

Hex. Flange Nut M6

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer M5

Flat Washer 6 mm

Lock Washer Helical M6

External Serrated Lock Washer 6 mm

Hex. Screw K50 X 45

Phillips Screw K40 X 16

Torx Screw M6 X 16

Lock Washer Serrated M6

Clip

GROUND CABLE - Call your local BRP dealership

Diagnostic Connector

Pop Rivet 3/16"

Tie Wrap 368 mm

Tie-Rap 180 mm

Tie Wrap 94 mm | 4X4

Tie-Rap 173 mm

Pop Rivet 3/16"

Clip

Grey, Electronic Key

Black, Electronic Key

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

RH Low Front Housing

LH Low Front Housing

RH Low Rear Housing

LH Low Rear Housing

RH High Front Housing

LH High Front Housing

RH High Rear Housing

LH High Rear Housing

RH Low Light Support

LH Low Light Support

RH High Light Support

LH High Light Support

Setting Screw

Voltage Regulator | XT, XTP, LTD

DC Outlet

Starter Relay

Tail Light Ass'y | Includes 32 to 33

Bulb

Battery Support

Battery Holder

Fuse Holder

Plug Carling | Australia, Brazil, Europe, Japan

Positive Cable

Ignition Switch

Low Beam Ass'y | Includes 1 to 2

High Beam Ass'y | Includes 11 to 12

Engine Start Button

Switch, Over ride

4X4 Switch

PPS Sport Switch

Halogen Bulb

Halogen Bulb

Battery Bolt Kit

Wiring Harness Ass'y
