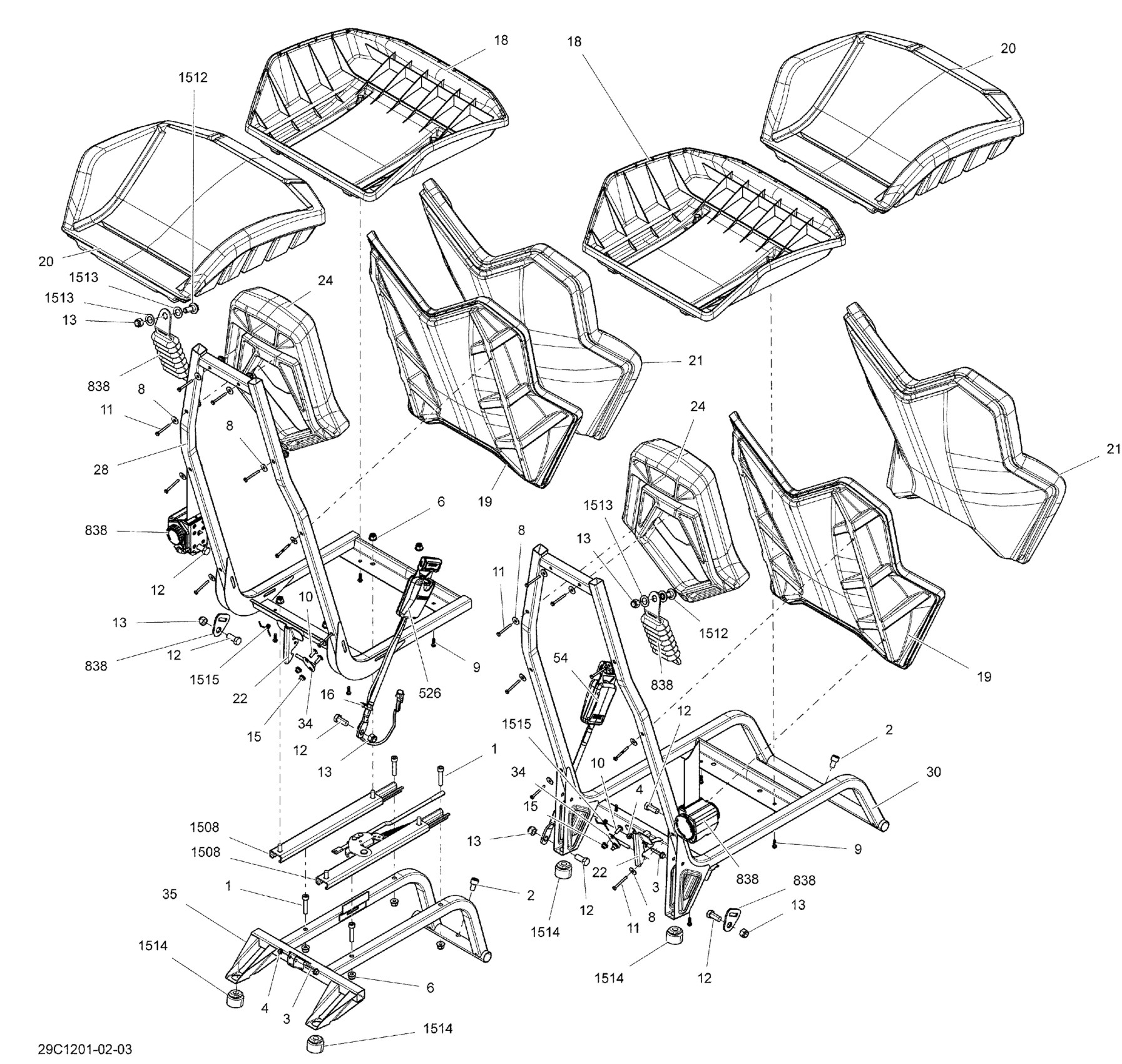

Can-Am Commander STD, XT, X, 1000 EFI, 2012 09- Seat Diagram

#

Description
Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

2

Socket Screw M10 X 16

205501644

$4.29

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

4

Hex. Elastic Stop Nut M6

232561600

$1.15

6

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Stainless Steel Flat Washer

234062670

$2.11

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Torx Screw M6 X 16

250000223

$2.11

11

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

12

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

13

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

15

Threaded Insert M6 X 1.0

250100242

Unavailable

16

Tie Wrap 368 mm

293750008

$1.04

18

KIT CUSHION ASS'Y, MODEL X - Call your local BRP dealership | Includes 4 to 5, X model

703500942

Unavailable

18

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

19

Backrest Ass'y X | Includes 2 to 3, X Model

708000864

Unavailable

19

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20

Seat Cover | X Model

708000868

Unavailable

20

Seat Cover

708001103

$117.99

21

BACKREST COVER - Call your local BRP dealership | X Model

708000865

Unavailable

21

Backrest Cover

708000675

$97.99

22

Seat Latch

708001355

$2.59

24

HEAD REST - Call your local BRP dealership

708000711

Unavailable

28

Driver Seat Frame

708000739

Unavailable

30

Passenger Seat Frame

708000690

Unavailable

34

RETAINING ROD - Call your local BRP dealership

708001238

$11.99

35

Seat Member

708000667

$56.99

54

Passenger Buckle Side

708000844

$53.99

54

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

526

Driver Buckle Side | Europe

708000856

$123.49

526

Driver Buckle Side

708002061

$70.99

838

SAFETY BELT - Call your local BRP dealership

708001108

$209.99

838

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

1508

LH Rail

708000848

$53.99

1508

RH RAIL - Call your local BRP dealership

708000846

Unavailable

1512

Safety Belt Screw

708000890

$3.79

1512

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

1513

Position Washer

708000891

$1.29

1514

Rubber Bumper

708001671

$2.89

1515

Spring

708000921

$1.29
