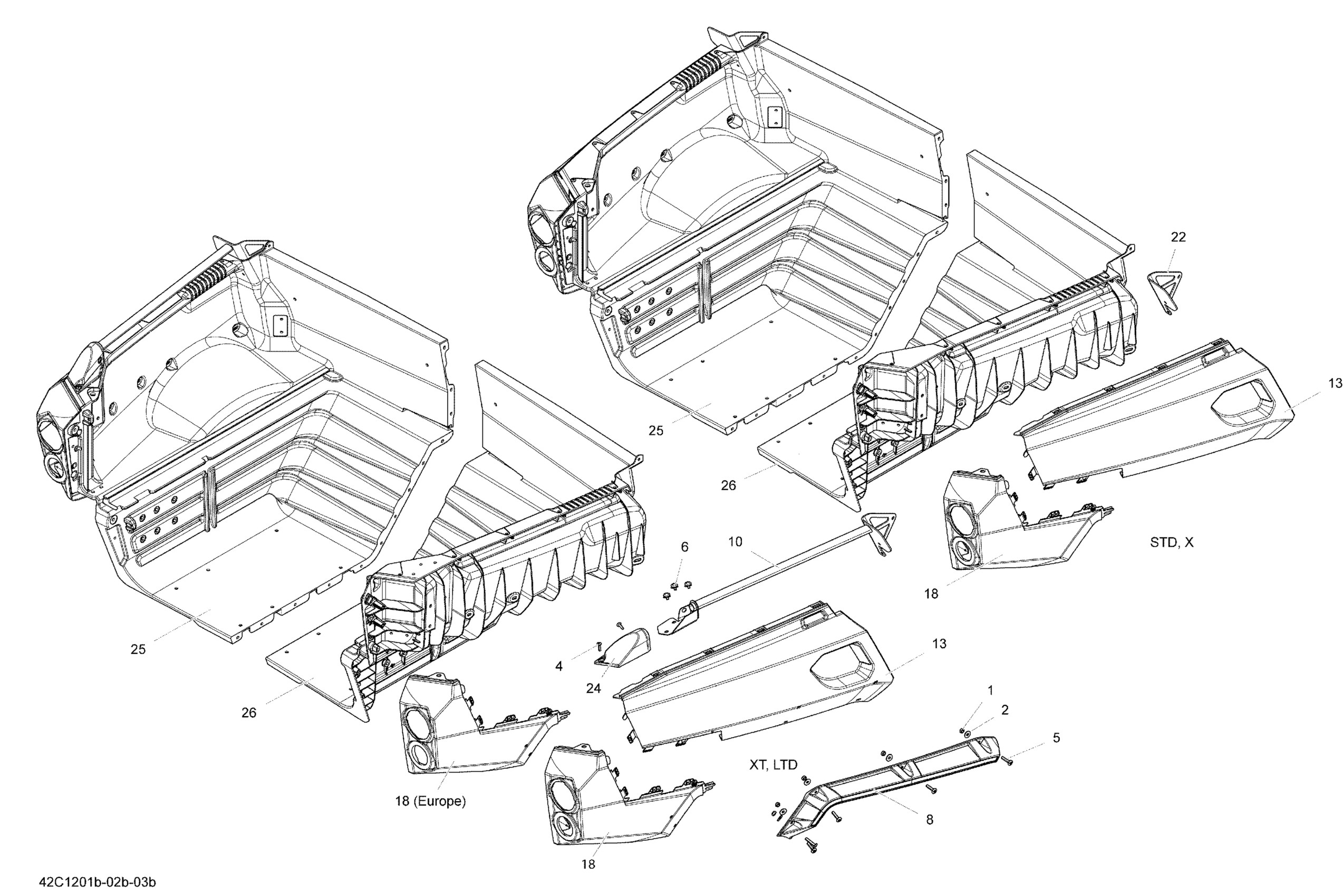

Can-Am Commander STD, XT, X, 1000 EFI, 2012 09- Rear Cargo Box Body Diagram

#

Description
Price

1

Elastic Stop Nut M6

232561434

$1.99

2

Stainless Steel Flat Washer

234062670

$2.11

4

Torx Screw M5 X 20

250000724

$1.69

5

Torx Truss Screw M6 X 30

250000843

$2.11

6

Pop Rivet 3/16 | XT

293150190

$5.89

8

FENDER EXTENSION KIT - Call your local BRP dealership | Includes 80 to 87

715002451

Unavailable

10

LH Welded Rail | XT

708300231

$74.99

10

RH Welded Rail | XT

708300232

$74.99

13

LH REAR FENDER, RED - Call your local BRP dealership | XT Red

708300226

Unavailable

13

FENDER REAR L B-005 - Call your local BRP dealership | XT Camo

708300834

Unavailable

13

Rear Fender | X

708300828

$139.99

13

FENDER REAR L B-321 - Call your local BRP dealership | LTD Model

708300838

Unavailable

13

Yellow LH Rear Fender | STD

708301242

$139.99

13

Red RH Rear Fender | XT Red

708300827

$139.99

13

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

13

FENDER REAR R B-005 - Call your local BRP dealership | XT Camo

708300835

Unavailable

13

AILE ARRIERE *REAR FENDER - Call your local BRP dealership | X

708300829

Unavailable

13

FENDER REAR R B-321 - Call your local BRP dealership | LTD Model

708300839

Unavailable

18

LH Rear Facia

708301383

$23.99

18

RH Rear Facia

708301384

$23.99

22

LH Painted Rail Cap | Except XT

708300333

$15.99

22

RH Painted Rail Cap | Except XT

708300334

$16.99

24

LH RAIL COVER - Call your local BRP dealership | XT

708300233

Unavailable

24

RH RAIL COVER - Call your local BRP dealership | XT

708300234

Unavailable

25

Left Box Kit

715002361

$214.99

26

RH Box Ass'y

715001257

$129.99
