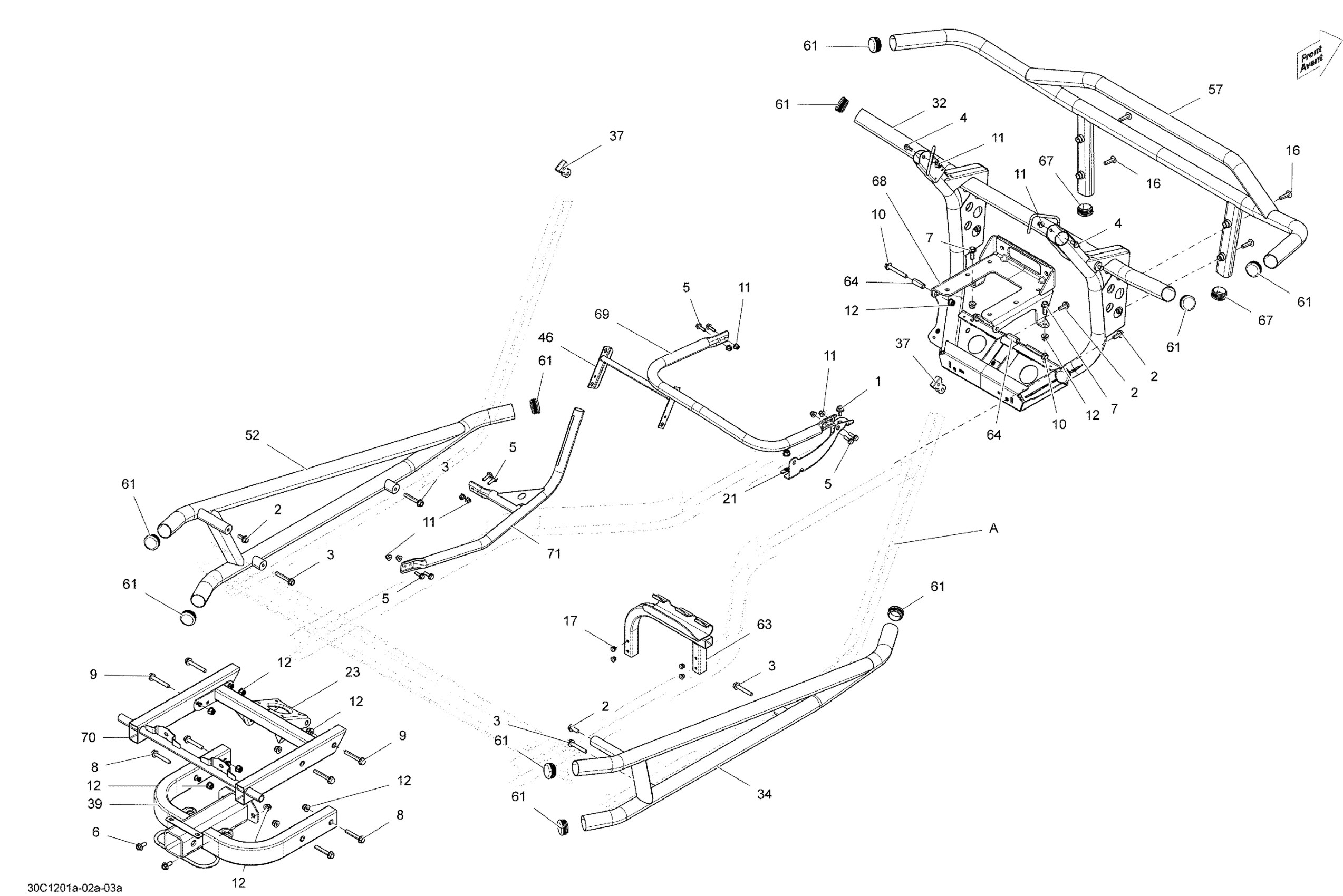

Can-Am Commander STD, XT, X, 1000 EFI, 2012 09- Frame Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

2

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

3

Hex. Flange Screw M8 X 50 | X

207585044

$3.91

4

Hex. Flange Screw M6 X 16

207661644

$0.74

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M8 X 20

207682044

$1.15

7

Hex. Flange Screw M8 X 25

207682544

$1.35

8

Hex. Flange Screw M8 X 50

207685044

$1.69

9

Hex. Flange Screw M8 X 55

207685544

$5.39

10

Hex. Flange Screw M8 x 60

207686044

$3.07

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Hex Torx Truss M8 X30

250000745

$3.17

17

Hemlock Rivet, 6.5 mm

293150096

$3.27

21

Front Differential Support

705201721

$19.49

23

SUPPORT - Call your local BRP dealership

705203317

Unavailable

32

Black Front Bumper

705202995

$404.49

34

BLACK RH LOWER PROTECTOR - Call your local BRP dealership | X

705203329

Unavailable

37

Binding Block

705203415

$18.49

39

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

46

Reinforcement Panel

705203330

$154.99

52

BLACK LH LOWER PROTECTOR - Call your local BRP dealership | X

705203327

Unavailable

57

Black Front Bumper | XT, X

715000958

$308.49

61

Cap

705202455

$5.69

63

FRAME - Call your local BRP dealership

715001986

Unavailable

64

Bushing

705202499

$6.67

67

Tube Cap | Europe

705202631

$20.99

68

Winch Plate | XT

715000704

$122.49

69

Black Handle

705203332

$132.49

70

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

71

HANDLE - Call your local BRP dealership

705203828

Unavailable

A

FRAME - Call your local BRP dealership

715001986

Unavailable
