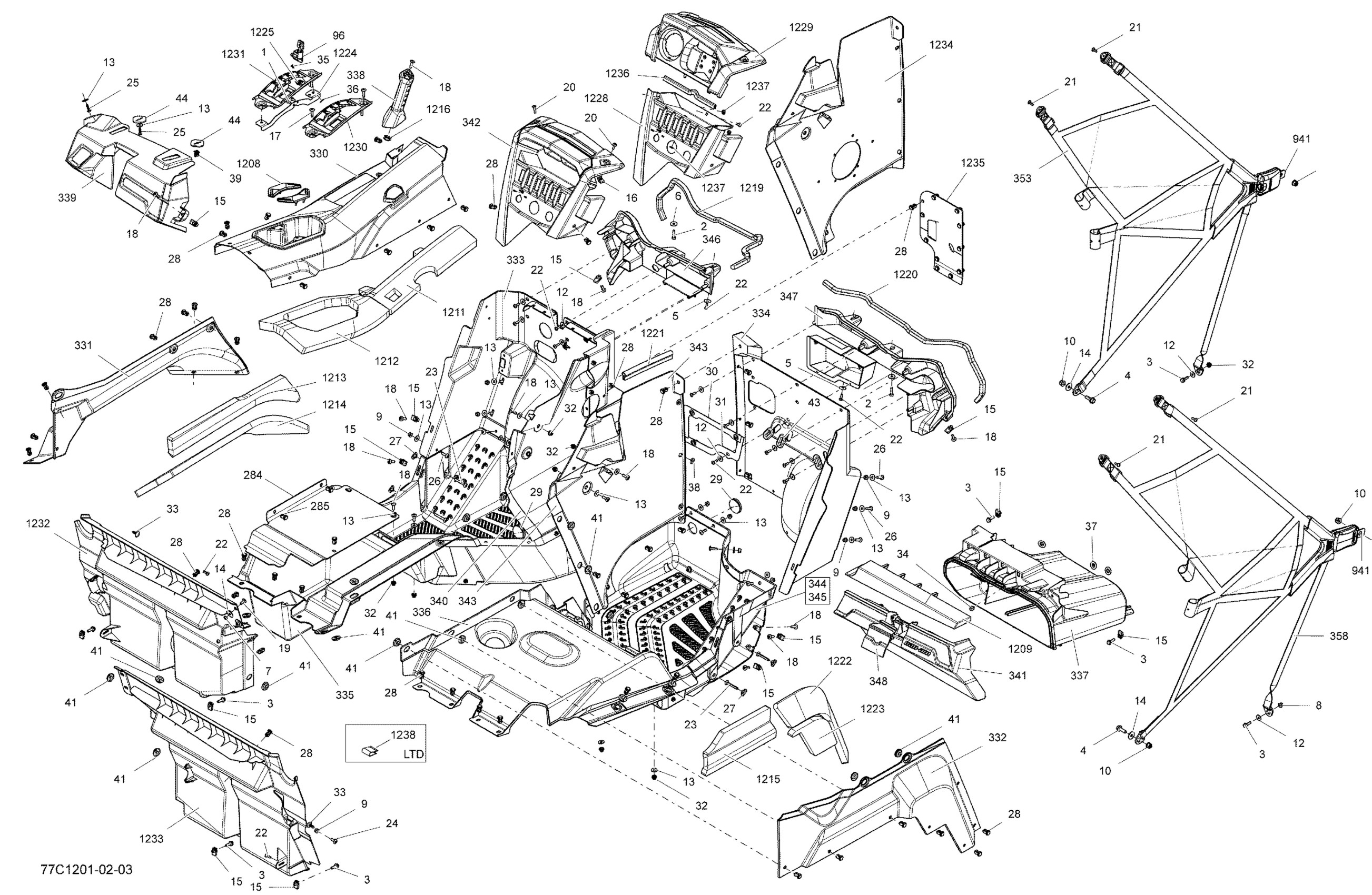

Can-Am Commander STD, XT, X, 1000 EFI, 2012 09- Cab Interior Diagram

Socket Head Screw M5 X 10

205951046

$2.43

Hex. Screw M6 X 25

207162544

$1.15

Hex. Flange Screw M6 X 20

207662034

$2.11

Hex. Flange Screw M8 X 25

207682544

$1.35

Flat Washer

224060201

$1.26

Flat Washer

224061201

$1.37

Hex. Nut M6

232061600

$1.15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M6

233261494

$1.58

Hex. Flange Elastic Nut M8

233281414

$1.47

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Flat Washer 8 mm

234082410

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M6 X 25 | XT Models

250000728

$4.44

Torx Screw M6 X 20

250000722

$1.68

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw M5 X 20

250000724

$1.69

Torx Screw M5 X 14

250000742

$1.47

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 45

250000215

$1.90

Torx Screw M6 X 16

250000755

$0.87

Truss Head Torx Screw K50 X 20

250000297

$2.11

Hex. Socket Screw M6 X 20

250000770

$2.09

Nut Welded, M6

293100003

$9.12

Tuflok Plastic Rivet

293150230

$1.47

Rubber Cover

293250242

$6.99

Upper Seal

293250252

$2.59

Bottom Seal

293250253

$2.79

Threaded Insert M6 X 1.0

250100242

Unavailable

Black, Dart

293730011

$0.99

Rubber Bumper

293830005

$8.09

Rivet

390401400

$0.53

WASHER - Call your local BRP dealership

391301000

$0.70

CAP - Call your local BRP dealership

414859400

Unavailable

Washer

506151252

$3.17

Edge Clip

517302785

$0.88

Grommet

705003264

$4.09

Oblong Grommet

705003668

$5.79

Support Plate

705003841

$0.99

Padlock with Key

707000666

$25.99

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Central Console Ass'y

715001247

$239.99

CENTRAL CONSOLE ASS'Y - Call your local BRP dealership | Europe

715001249

Unavailable

LH Side Console

707900001

$44.99

RH Side Console

707900002

$36.99

LH Front Floor

707900181

$83.99

RH Front Floor

707900004

$83.99

LH Under Seat Plate Kit

715002356

$149.99

RH Under Seat Plate

707900006

$114.99

Storage Bin

707900009

$114.99

Storage Bin | XT

707900046

$104.99

Passenger Handle

707900011

$13.75

Dashboard Ass'y

715001250

$79.99

Front Side Dash Panel

707900193

$69.99

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

Central Dashboard Ass'y

715001265

$60.99

Lower Central Dashboard Ass'y | Europe

707900019

$40.99

RH Fixe Side Console

707900021

$76.99

LH Lower Floor

707900022

$269.99

RH Lower Floor

707900023

$194.99

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$12.99

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

Latch

707900031

$8.49

LH Lateral Net | Upper Link 707900049

707900127

$209.99

RH Lateral Net | Upper Link 707900049

707900128

$209.99

Buckle

707900035

$53.99

Cup Retainer

707900036

$6.89

Trim Glove Box

707900062

$18.49

Front Central Console Foam

707900619

$18.99

REAR CENTRAL CONSOLE FOAM - Call your local BRP dealership

707900042

Unavailable

Left Upper Lateral Console Foam

707900620

$16.49

LH Lower Lateral Console Foam

707900621

$23.99

RH Lateral Console Foam

707900622

$16.49

Connector Tube

707900048

$6.19

Was 293200017 Neoprene Seal

219704365

$149.99

Was 293200017 Neoprene Seal

219704365

$149.99

Was 293250240 Neoprene Seal

219704451

$60.49

RH Lateral Console Foam

707900623

$16.49

RH Lateral Console Foam

707900624

$16.49

LOCK SUPPORT - Call your local BRP dealership | Europe

707900303

Unavailable

CAP - Call your local BRP dealership | Europe

707900060

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Lever Indicator

707900070

$15.49

Lever Indicator | Europe

707900071

$18.49

LH Rear Deflector

707900164

$97.99

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Deflector

707900108

$17.49

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable
