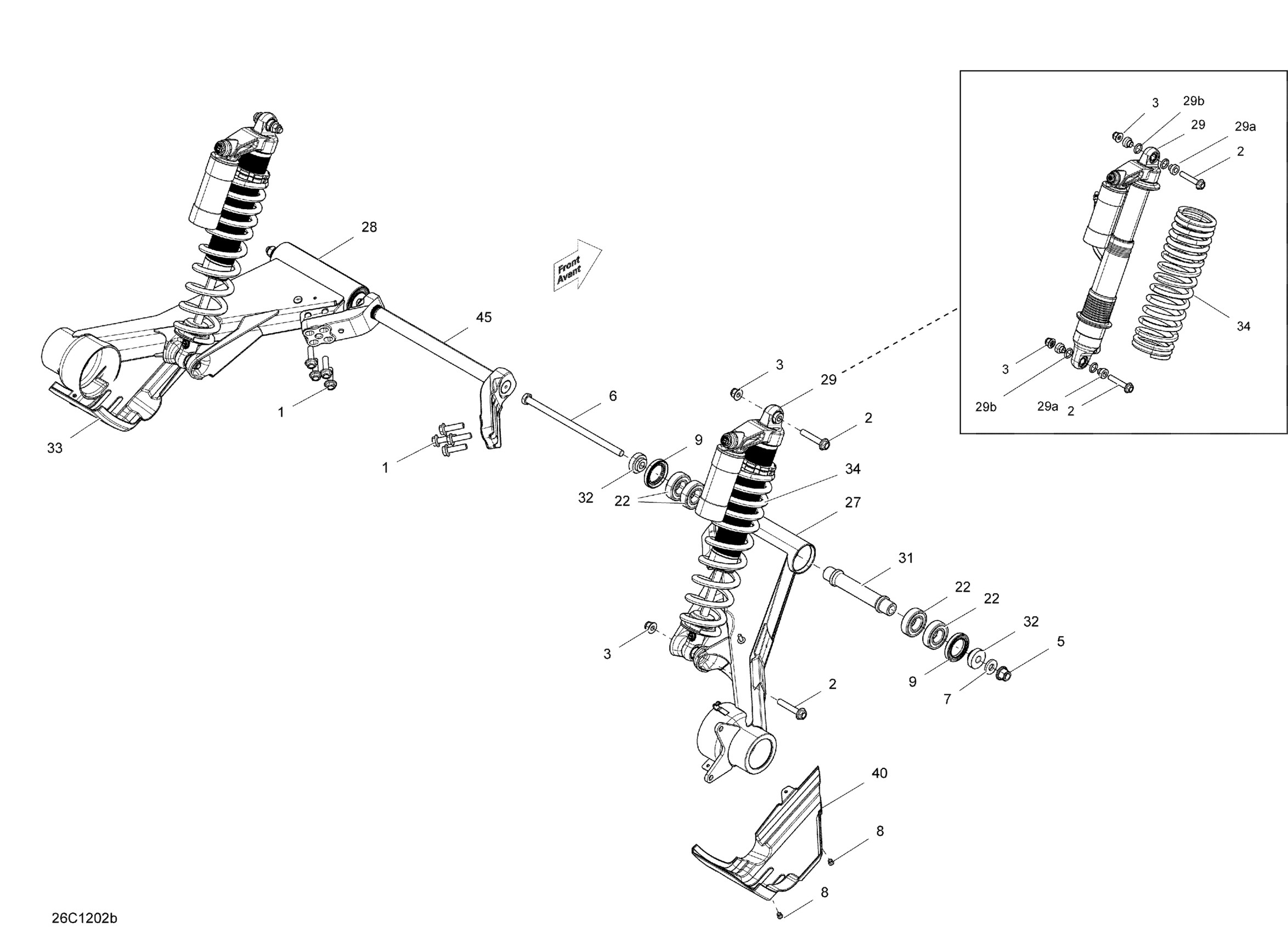

Can-Am Commander STD, XT, X, 1000 EFI, 2012 08- Rear Suspension X Model Diagram

Hex. Flange Screw M10 X 35

207503544

$7.31

Hex. Flange Screw M10 X 55

207605544

$3.38

Hex. Flange Elastic Nut M10

233201436

$2.11

Elastic Flange Nut M12

233221416

$2.85

Hex. Cap Screw M12 X 241

250001031

$3.81

Flat Washer M12

250200120

$2.61

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Seal

293200094

$10.33

Ball Bearing

293350115

$12.11

RH Swing Arm

703500965

$190.99

LH Swing Arm

706001177

$190.99

REAR SHOCK - Call your local BRP dealership

706001117

Unavailable

Bushing

706001529

$34.99

Spacer

706001350

$10.49

LH Joint Protector

706000630

$8.85

YELLOW REAR SPRING - Call your local BRP dealership | X

706000821

Unavailable

RH Joint Protector

706000814

$8.85

SWAY BAR ASS'Y - Call your local BRP dealership | X

706001014

Unavailable

Interior Bushing | OUT XTP

715500361

$33.99

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99
