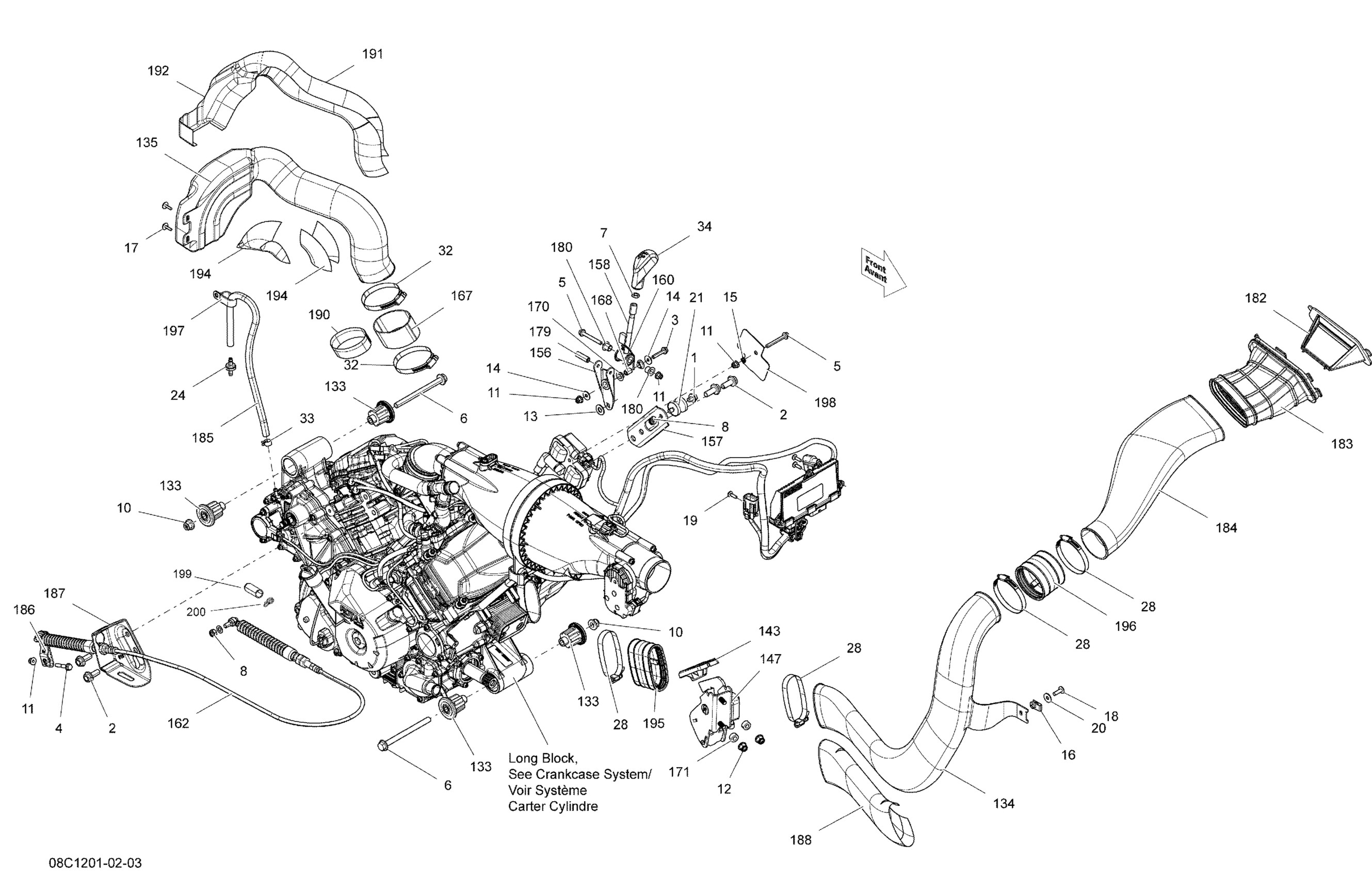

Can-Am Commander STD, XT, X, 1000 EFI, 2012 01- Engine Diagram

#

Description
Price

1

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

2

Hex. Flange Screw M10 X 25

207602544

$1.69

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

4

Hex. Flange Screw M6 X 35

207663544

$0.90

5

Hex. Flange Screw M6 X 50

207665044

$4.12

6

Hex. Flange Screw M10 X 125

230602546

$7.41

7

Hex. Jam Nut M8

232180491

$7.51

8

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Hex. Flange Elastic Nut M10

233201436

$2.11

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Flat Washer 10 mm

234001410

$1.26

14

Flat Washer 6 mm

234062410

$0.77

15

External Serrated Lock Washer 6 mm

234461608

$1.15

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Screw M4 X 16

250000725

$3.49

18

Torx Screw M6 X 20

250000722

$1.68

19

Torx Screw K50 X 16

250000720

$1.69

20

Flat Washer

250200082

$0.42

21

Rubber Isolator

707000949

$11.49

24

Check Valve

275500398

$10.99

28

Norma Clamp

293650091

$11.12

32

Norma Gear Clamp

293650118

$13.16

33

Spring Clamp

414415200

$0.88

34

Lever Handle

707000284

$19.99

133

Vibration Damper

707001169

$42.99

134

Air Inlet

707000639

$19.99

135

CVT Air Outlet

707000640

$24.49

143

Accelerator Pedal Pad

715900110

Unavailable

147

Accelerator Pedal

707001166

$274.99

156

Lower Lever Arm

707000828

$19.99

157

Upper Engine Bracket

707000707

$8.79

158

Upper Lever Arm

707000711

$39.99

158

UPPER LEVER ARM - Call your local BRP dealership | Europe

707000978

Unavailable

160

Lever Arm Spring

707000750

$2.68

162

Shifting Cable

707000775

$66.99

167

Adaptor

707000789

$12.12

168

Bushing

707000801

$2.68

170

Flanged Bushing

707000847

$1.25

171

Bushing

707000848

$1.35

179

Bushing

707001376

$5.24

180

Flanged Bushing

707000869

$2.89

182

CVT Filter

707001344

$15.49

183

Adaptor

707000908

$35.99

184

Primary Air Intake

707000909

$22.49

185

Hose

219704549

$50.99

186

Lever

707000911

$20.49

187

Cable Support | Engine 1000

707000919

$16.87

188

Reflective Sheet

707000924

$33.99

190

Reflector

707000988

$4.14

191

Reflective Sheet

707000989

$25.99

192

Reflective Sheet

707000990

$16.99

194

Reflective Sheet

707000991

$10.49

195

Flexibale Adaptor

707002585

$10.99

196

Flexibale Adaptor

707002585

$10.99

197

Open Clamp

709000057

$5.39

198

Insulator Pad

710000073

$11.12

199

Plug

707001185

$1.15

200

Retainer Clip

707800506

$12.63
