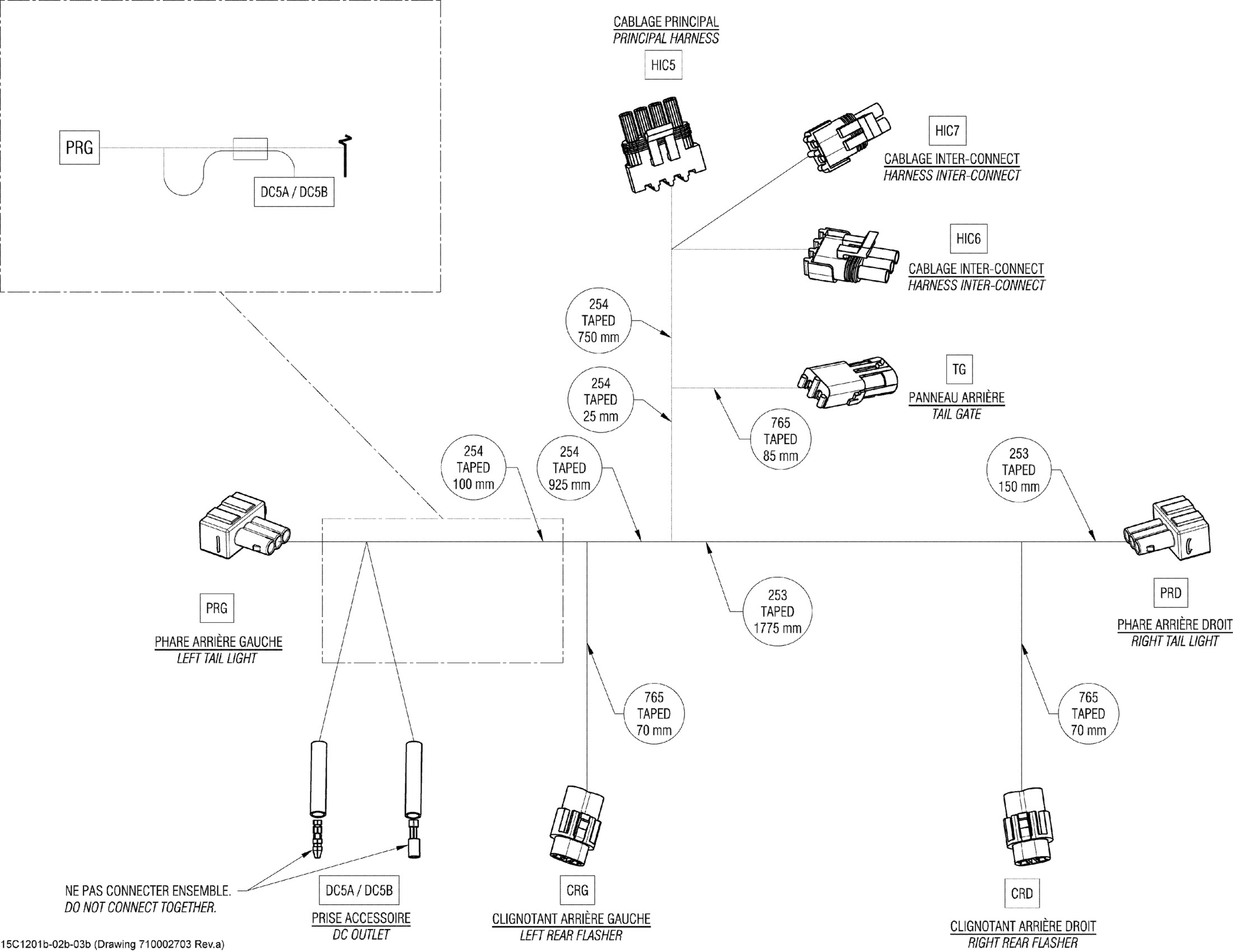

Can-Am Commander STD, XT, 800R EFI, 2012 10- Electrical Harness Rear Europe Diagram

#

Description
Price

1

Rear Harness

710003220

$229.99

32

Female Terminal

278000998

$4.39

226

Male Terminal | XT Models

278000222

$3.19

228

Female Terminal

409007300

$0.45

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

237

Male Connector, 2 Circuits

278000220

$15.49

238

Male Housing, 3 Circuits

278000273

$9.59

239

Male Housing, 4 Circuits

278000395

$15.99

242

Wire Seal

278000218

$4.39

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

280

Female Terminal

409012100

$4.55

283

Female Terminal Housing, 2 Circuits

409209200

Unavailable

284

Seal

409012300

$4.54

295

Insulated Sheath

278001008

$3.28

297

Insulated Sheath

278001007

$3.58

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

484

Seal

415128501

$1.89

504

Wire Seal

278001065

$7.69

506

Female Terminal

710000421

$6.11

765

Adhesive Tape

293740027

Unavailable

918

Female Terminal

278002261

$7.55

1160

Housing

710002104

Unavailable

1176

CLIP - Call your local BRP dealership

710002249

Unavailable

1302

Shrink Tubing

710002711

Unavailable

CRD

Female Terminal Housing, 2 Circuits

409209200

Unavailable

CRD

Seal

409012300

$4.54

CRD

Female Terminal

409012100

$4.55

CRG

Female Terminal Housing, 2 Circuits

409209200

Unavailable

CRG

Seal

409012300

$4.54

CRG

Female Terminal

409012100

$4.55

DC5A

Insulated Sheath

278001008

$3.28

DC5A

Female Terminal

278002261

$7.55

DC5B

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DC5B

Insulated Sheath

278001007

$3.58

DC5B

Female Terminal

710000421

$6.11

HIC5

Male Housing, 4 Circuits

278000395

$15.99

HIC5

Wire Seal

278001065

$7.69

HIC5

Female Terminal

278000223

$3.19

HIC6

Male Housing, 3 Circuits

278000273

$9.59

HIC6

Wire Seal

278001065

$7.69

HIC6

Female Terminal

278000223

$3.19

HIC7

Male Connector, 2 Circuits

278000220

$15.49

HIC7

Wire Seal

278000218

$4.39

HIC7

Female Terminal

409007300

$0.45

PRD

Housing

710002104

Unavailable

PRD

Seal

415128501

$1.89

PRD

Female Terminal

278000998

$4.39

PRG

Housing

710002104

Unavailable

PRG

Seal

415128501

$1.89

PRG

Female Terminal

278000998

$4.39

TG

CLIP - Call your local BRP dealership

710002249

Unavailable

TG

Female Housing, 2 Circuits

278000217

$9.59

TG

Wire Seal

278001065

$7.69

TG

Male Terminal | XT Models

278000222

$3.19
