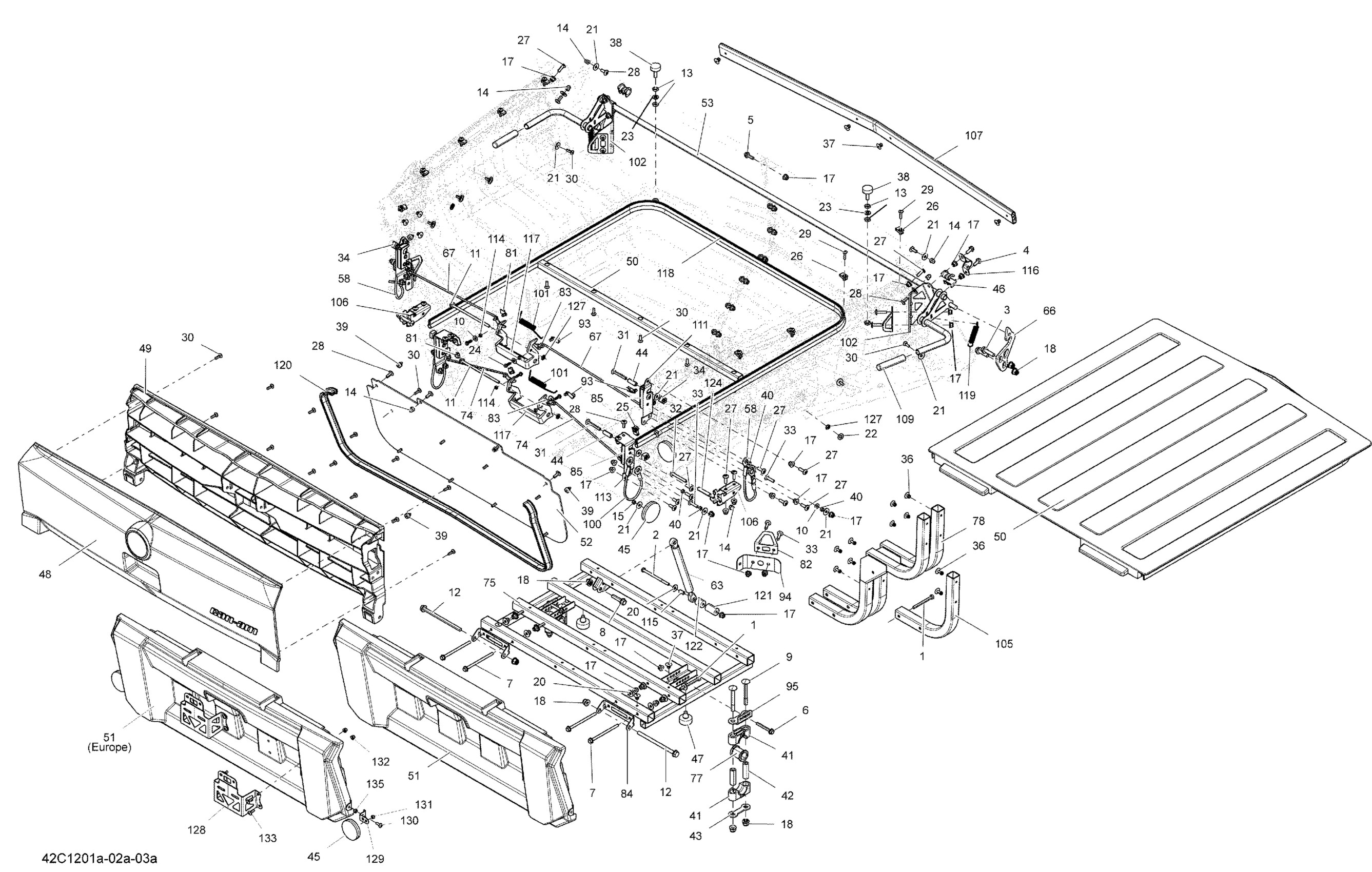

Can-Am Commander STD, XT, 800R EFI, 2012 09- Rear Cargo Box 1 Common Parts Diagram

#

Description
Price

1

Hex. Screw M6 X 65

207066544

$0.46

2

Hex. Screw M6 X 90

207069044

$4.87

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

4

Hex. Flange Screw M6 X 16

207661644

$0.74

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M6 X 50

207665044

$4.12

7

Hex. Flange Screw M6 X 95

207669584

$3.38

8

Hex. Flange Screw M8 X 35

207683544

$1.69

9

Carriage Bolt M8 X 70

207787044

$1.37

10

Flat Washer

224061121

$0.53

11

Hex. Flange Screw M6 X 130

230663084

$3.38

12

Hex. Flange Screw M8 X 130

230683034

$7.51

13

Hex. Jam Nut M8

232180600

$0.67

14

Domed Nut M6

232361493

$2.11

15

Elastic Stop Nut M5

232551414

$0.87

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Flat Washer 6 mm

234062410

$0.77

21

Stainless Steel Flat Washer

234062670

$2.11

22

Flat Washer 8 mm, Nylon

234081100

$1.39

23

Lock Washer 8 mm

234181401

$0.92

24

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Panel Nut M5 X 0.8

250000958

$4.23

27

Torx Screw M6 X 20

250000722

$1.68

28

Torx Truss Screw M6 X 16

250000721

$1.69

29

Torx Screw M5 X 20

250000724

$1.69

30

Torx Screw K50 X 16

250000720

$1.69

31

Torx Screw M6 X 45

250000215

$1.90

32

Torx Truss Screw M6 X 50

250000749

$3.17

33

Torx Screw M6 x 25

250000284

$2.11

34

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

36

Pop Rivet 3/16"

293150100

$1.09

37

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

38

Frame Rubber Bumper

293720091

$9.39

39

Rubber Bumper

293830005

$8.09

40

Bushing

293900101

$7.87

41

Housing Half

506150400

$7.62

42

Housing Bushing

506150500

$7.99

43

Stopper Plate

506150600

$4.39

44

SPACER - Call your local BRP dealership

517304852

Unavailable

45

Red Reflector

705011221

$14.49

46

Half Ring

705500033

$8.29

47

Rubber Stopper

708000884

$6.89

48

Yellow Outside Top Pannel | X, Yellow

708301256

$164.99

48

CAMO OUTSIDE TOP PANNEL - Call your local BRP dealership | XT Camo

708300442

Unavailable

48

MAGNESIUM OUTSIDE TOP PANNEL - Call your local BRP dealership

708300552

Unavailable

49

Inside Top Pannel

708300053

$139.99

50

Separator Pannel Ass'y | Includes 16 to 17

708300131

$279.99

51

Outside Bottom Pannel Ass'y

715002365

$154.99

52

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

53

Latch Handle Cargo Ass'y

708300600

Unavailable

58

Upper Retainer Cable

708300763

$33.99

63

Shock Kit

703500966

$34.99

66

Box Retainer

708300136

$8.69

67

Top Rod

708300160

$3.39

74

Lower Bottom Rod

708300164

$3.39

75

Black Box Support

708300875

$309.99

77

Pivot Bushing

708300172

$4.79

78

Black Welded Lateral Support

708300879

$49.99

81

LH Tie Rod Clip

708300182

$2.89

82

Retaining Plate

708300183

$9.69

83

Activator

708300184

$9.29

84

Bracket Pivot

708300185

$4.79

85

LH Latch

708300162

$23.99

85

RH Latch

708300201

$23.99

93

RH Tie Rod Clip

708300202

$2.89

94

Retaining Plate Support

708300206

$5.19

95

Adjustable Stopper Plate

708300210

$4.79

100

Lower Retainer Cable

708300762

$16.99

101

Spring

708300219

$4.79

102

LH Latch Lever Support

708300278

$9.69

102

RH Latch Lever Support

708300351

$9.69

105

Black Lateral Support

708300877

$184.99

106

Upper Pivot Support

708300345

$4.79

107

Front Support

708301633

$28.99

109

Cap Latch Lever

708300358

$6.59

111

LH Upper Support

708300359

$10.49

111

RH Upper Support

708300360

$9.49

113

LH Lower Support

708300361

$10.99

113

RH Lower Support

708300362

$9.69

114

Bushing

708300365

$5.89

115

Bushing

708300366

$5.89

116

Clamp Reatiner

708300392

$2.68

117

Handle

708300398

$13.99

118

Was 293250240 Neoprene Seal

219704451

$60.49

119

Spring

708300454

$4.79

120

Was 293250240 Neoprene Seal

219704451

$60.49

121

Spacer

708300470

$7.73

122

SPACER - Call your local BRP dealership

708300471

Unavailable

124

BUSHING - Call your local BRP dealership

708300513

Unavailable

127

Push Nut

732610072

$2.19

128

Plate Support | Europe

708300349

$43.99

129

REFLECTOR SUPPORT - Call your local BRP dealership | Europe

708300367

Unavailable

130

Torx Screw M5 X 14

250000742

$1.47

131

Elastic Stop Nut M5

232551414

$0.87

132

Hex. Flange Elastic Nut M5

233251414

$1.04

133

Torx Screw M5 X 14

250000742

$1.47

135

Elastic Stop Nut M5

232551414

$0.87
