Description

Price

1

Hex. Flange Screw M10 X 35

207503544

$7.31

2

Hex. Flange Screw M10 X 55

207605544

$3.38

3

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Elastic Flange Nut M12

233221416

$2.85

6

Hex. Cap Screw M12 X 241

250001031

$3.81

7

Flat Washer M12

250200120

$2.61

8

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

9

Seal

293200094

$10.33

22

Ball Bearing

293350115

$12.11

26

Spring Stopper

706000567

$15.99

27

RH Swing Arm

703500965

$190.99

28

LH Swing Arm

706001177

$190.99

29

Rear Shock | STD, XT

706000615

$195.99

29a

Bushing

715900122

$11.06

31

Bushing

706001529

$34.99

32

Spacer

706001350

$10.49

33

LH Joint Protector

706000630

$8.85

34

Yellow Rear Spring | STD, XT Yellow Model

706000667

$104.99

34

RED REAR SPRING - Call your local BRP dealership | XT Red Model

706002466

Unavailable

34

Black Rear Spring | XT Camo Model

706001045

$100.49

40

RH Joint Protector

706000814

$8.85

45

Sway Bar Ass'y | STD, XT

706001500

$185.49

46

Adjustment Ring

706000910

$16.49

47

Protector Ring | STD, XT

706000911

$13.99

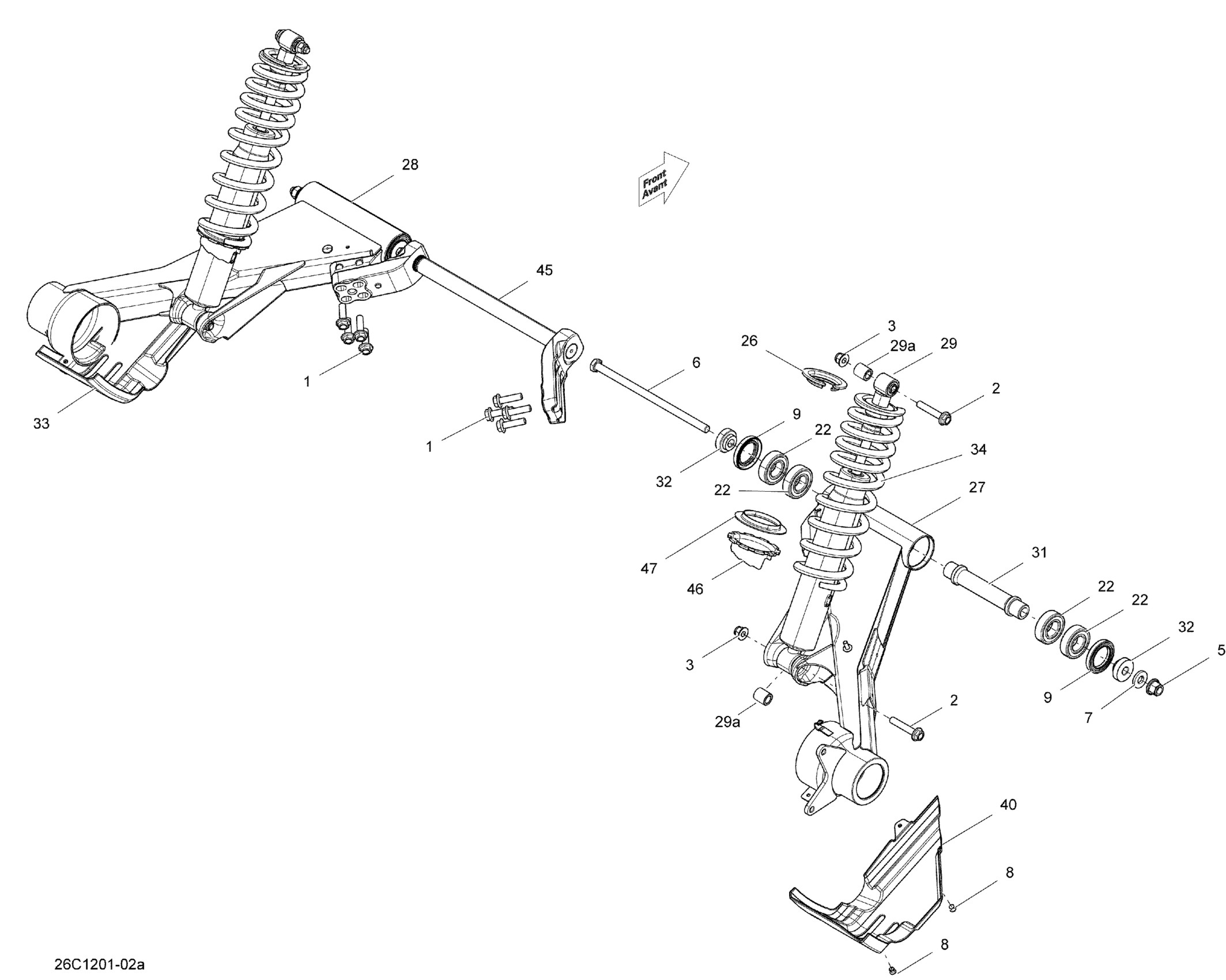

Can-Am Commander STD, XT, 800R EFI, 2012 08- Rear Suspension Diagram

Hex. Flange Screw M10 X 35

Hex. Flange Screw M10 X 55

Hex. Flange Elastic Nut M10

Elastic Flange Nut M12

Hex. Cap Screw M12 X 241

Flat Washer M12

Pop Rivet 3/16" | DS 650 X

Seal

Ball Bearing

Spring Stopper

RH Swing Arm

LH Swing Arm

Rear Shock | STD, XT

Bushing

Bushing

Spacer

LH Joint Protector

Yellow Rear Spring | STD, XT Yellow Model

RED REAR SPRING - Call your local BRP dealership | XT Red Model

Black Rear Spring | XT Camo Model

RH Joint Protector

Sway Bar Ass'y | STD, XT

Adjustment Ring

Protector Ring | STD, XT
