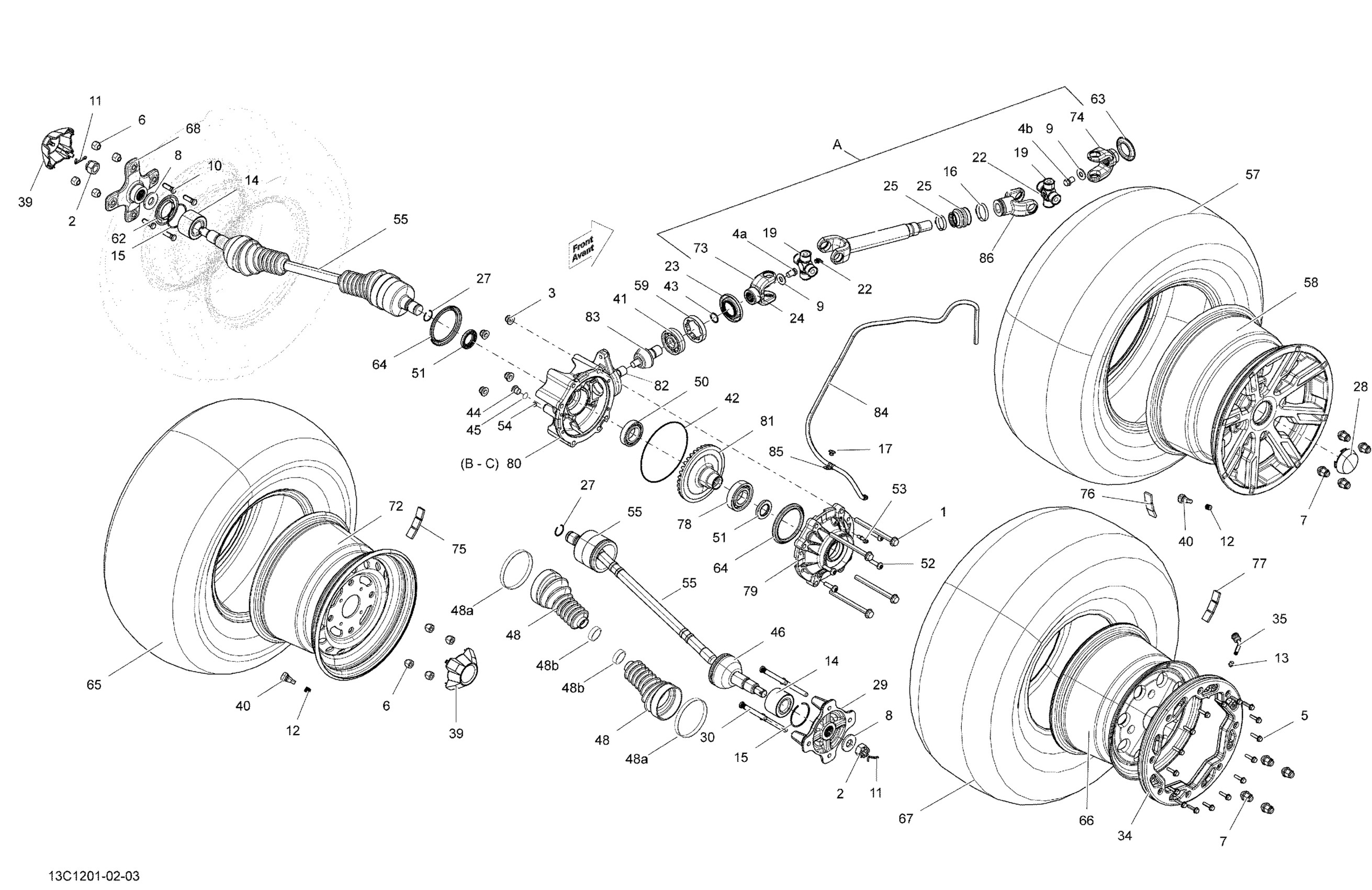

Can-Am Commander STD, XT, 800R EFI, 2012 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 125

230602546

$7.41

2

Hex. Flange Castellated Nut M18

232291413

$7.98

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4a

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

4b

Hex Flange Screw M12 X 16

250001039

$2.11

5

Hex. Flange Screw M6 X 25

250000787

$2.22

6

Steel Wheel Nut

250100042

$3.98

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

7

Black, Wheel Nut M10 X 1.25

250100184

$4.51

8

Conical Spring Washer M18

250200171

$7.65

9

Flat Washer M12

250200102

$2.11

10

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

11

Cotter Pin

250400036

$2.11

12

Valve Cap

293000110

$1.59

13

Not Available As Spare Parts

XXX

Unavailable

14

Ball Bearing

293350150

$52.99

15

Circlip

293370019

$4.68

16

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

17

Pop Rivet 3/16"

390406500

$0.88

19

Universal Joint

715900326

$68.99

22

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

23

Oil Seal | 4X4

705401481

$19.49

24

Wear Ring | 4X4

705400036

$26.49

25

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

27

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

28

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

28

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

29

Wheel Hub

705401314

$132.49

30

Wheel Stud

705401964

$11.06

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

39

Wheel Cap | STD

705400921

$5.89

40

Rim Valve With Cap

705400193

$8.69

41

Ball Bearing | 4X4

705500260

$31.99

42

Seal | 4X4

705500265

$18.76

43

Pinion Gear Shim 1.67 mm

705502061

$18.99

43

Pinion Gear Shim

705501162

$16.49

43

O-Ring | 4X4

705500267

$7.65

44

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

46

CV JOINT - Call your local BRP dealership

705500980

Unavailable

48

Boot Kit

705500870

$42.49

48a

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

48b

Oetiker Clamp (27,5mm)

293650203

$9.96

50

Ball Bearing

705502737

$48.49

51

Oil Seal

705501996

$21.99

52

Screw | 4X4

705401601

$10.49

53

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

54

Drain Plug | 4X4

705500894

$11.49

55

Joint Assemble *Half Shaft | Includes 63 to 68

705502359

$243.99

57

27X11R14 Rear Tire

705502665

$259.49

57

Rear Tire | XT Europe

705501295

$259.49

58

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

58

Rear Rim | XT Camo

705501814

$239.49

59

Nut

705502059

$32.99

62

Wear Sleeve | 4X4

705501121

$7.90

63

Protector

705501123

$7.55

64

Wear Ring

705501124

$7.90

65

Rear Tire | STD

705501129

$149.99

65

Rear Tire | STD Model Europe

705501434

$153.49

66

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

72

RIM_12 INCH X 8 - Call your local BRP dealership | STD

705501249

Unavailable

73

Fixe Yoke

715900101

$29.49

74

Fixed Joint

715900129

$24.99

75

1/2 Oz Weight

219704465

$3.89

76

1/2 Oz Weight

219704465

$3.89

77

Not Available As Spare Parts

XXX

Unavailable

78

Ball Bearing

705502738

$59.49

79

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

80

PINION REAR COVER - Call your local BRP dealership

705501395

Unavailable

81

Gear, 36 Tooth

705501397

$449.99

82

Needle Bearing

705501408

$69.99

83

PINION 10 TOOTH - Call your local BRP dealership

705501571

$234.99

84

Polyurethane Hose 10000Mm Long

219704410

$56.99

85

Clamp

293650256

$5.49

86

SLIDING JOINT - Call your local BRP dealership

705501072

Unavailable

A

Rear Propeller Shaft Kit | Includes 1 to 8

703500805

$391.99

B

Rear Differential Ass'y

705501896

Unavailable

C

Differential Shim 0.02 mm

705502060

$13.76
