Description

Price

1

Hex. Flange Screw M10 X 55

207605544

$3.38

2

Hex. Flange Screw M6 X 10

210261040

$1.48

3

Hex. Nut M8

232081414

$0.72

4

Elastic Stop Nut M6

232561414

$0.55

6

Hex. Flange Elastic Nut M10

233201414

$1.58

8

Elastic Flange Nut M5

233251494

$2.11

9

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.29

10

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

11

Torx Screw M5 X 14

250000742

$1.47

12

Pin

250400062

$4.54

13

O-Ring

293300144

$3.82

14

Pop Rivet 3/16"

390406500

$0.88

15

Tie-Rap 180 mm

414115200

$0.11

17

Tie-Rap 180 mm

414115200

$0.11

18

Yoke

705600100

Unavailable

19

Clamp

293650256

$5.49

25

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

27

RH Brake Pad Kit

715500336

$51.99

30

Spring Boot Bolt Kit

715500383

$17.59

33

Sliding Pin Kit

715500337

$20.49

34

Bleeding Screw

705600080

$16.87

35

Bleeding Screw

705600080

$16.87

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Spring Boot Bolt Kit

715500383

$17.59

38

LH Brake Pad Kit

715500335

$51.99

42

Diaphragm Cap Kit

715500332

$29.49

48

LH Front Hose | Includes 15 to 16

705600943

$79.49

51

Brake Disc

705600684

$43.49

52

RH Front Hose | Includes 17 to 18

705601265

$86.99

56

Brake Pedal

705600724

$57.99

58

Brake Pedal Spring

705600792

$9.10

59

Inner Spacer

705600815

$11.60

61

Brake Switch

705601250

$59.49

64

LH Front Deflector

705600917

$7.90

65

Bracket

705601337

$2.69

66

Rear Flexible Hose | Includes 23 to 24

705600945

$148.49

68

Rubber Stopper

708000759

$4.19

70

Hex. Flange Screw M8 X 25

207682544

$1.35

71

Hex. Elastic Stop Nut M8

232581414

$0.56

72

Copper Washer

705601628

$4.44

77

Master Cylinder Rod

705600833

$20.49

78

Banjo Bolt

705600958

$6.35

79

Cotter Pin

371800700

$1.01

A

LH Caliper | Includes 6 to 10

705600679

$317.99

B

RH Caliper | Includes 1 to 5

705600678

$317.99

C

Rear Caliper | Includes 36 to 40

705600872

$291.49

D

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

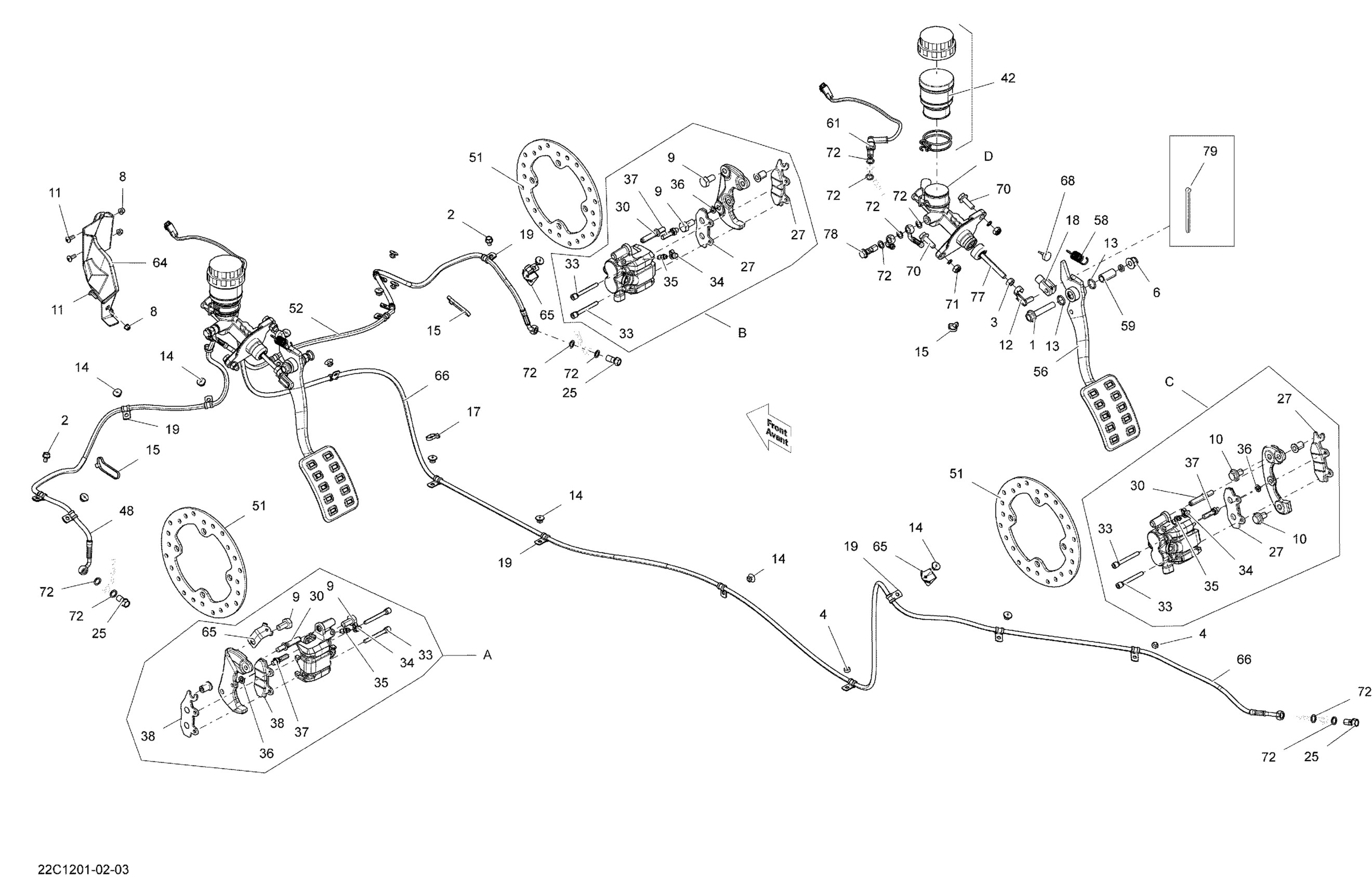

Can-Am Commander STD, XT, 800R EFI, 2012 06- Brakes Diagram

Hex. Flange Screw M10 X 55

Hex. Flange Screw M6 X 10

Hex. Nut M8

Elastic Stop Nut M6

Hex. Flange Elastic Nut M10

Elastic Flange Nut M5

Hex. Screw M10 X 20, Scotch Grip

Flange Screw M10 X 16, Scotch Grip | 4X4

Torx Screw M5 X 14

Pin

O-Ring

Pop Rivet 3/16"

Tie-Rap 180 mm

Tie-Rap 180 mm

Yoke

Clamp

Banjo Bolt (M10 x 1.25 thread)

RH Brake Pad Kit

Spring Boot Bolt Kit

Sliding Pin Kit

Bleeding Screw

Bleeding Screw

Not Available As Spare Part - Friction Washer

Spring Boot Bolt Kit

LH Brake Pad Kit

Diaphragm Cap Kit

LH Front Hose | Includes 15 to 16

Brake Disc

RH Front Hose | Includes 17 to 18

Brake Pedal

Brake Pedal Spring

Inner Spacer

Brake Switch

LH Front Deflector

Bracket

Rear Flexible Hose | Includes 23 to 24

Rubber Stopper

Hex. Flange Screw M8 X 25

Hex. Elastic Stop Nut M8

Copper Washer

Master Cylinder Rod

Banjo Bolt

Cotter Pin

LH Caliper | Includes 6 to 10

RH Caliper | Includes 1 to 5

Rear Caliper | Includes 36 to 40

Master Cylinder Ass'y | Includes 11 to 13
