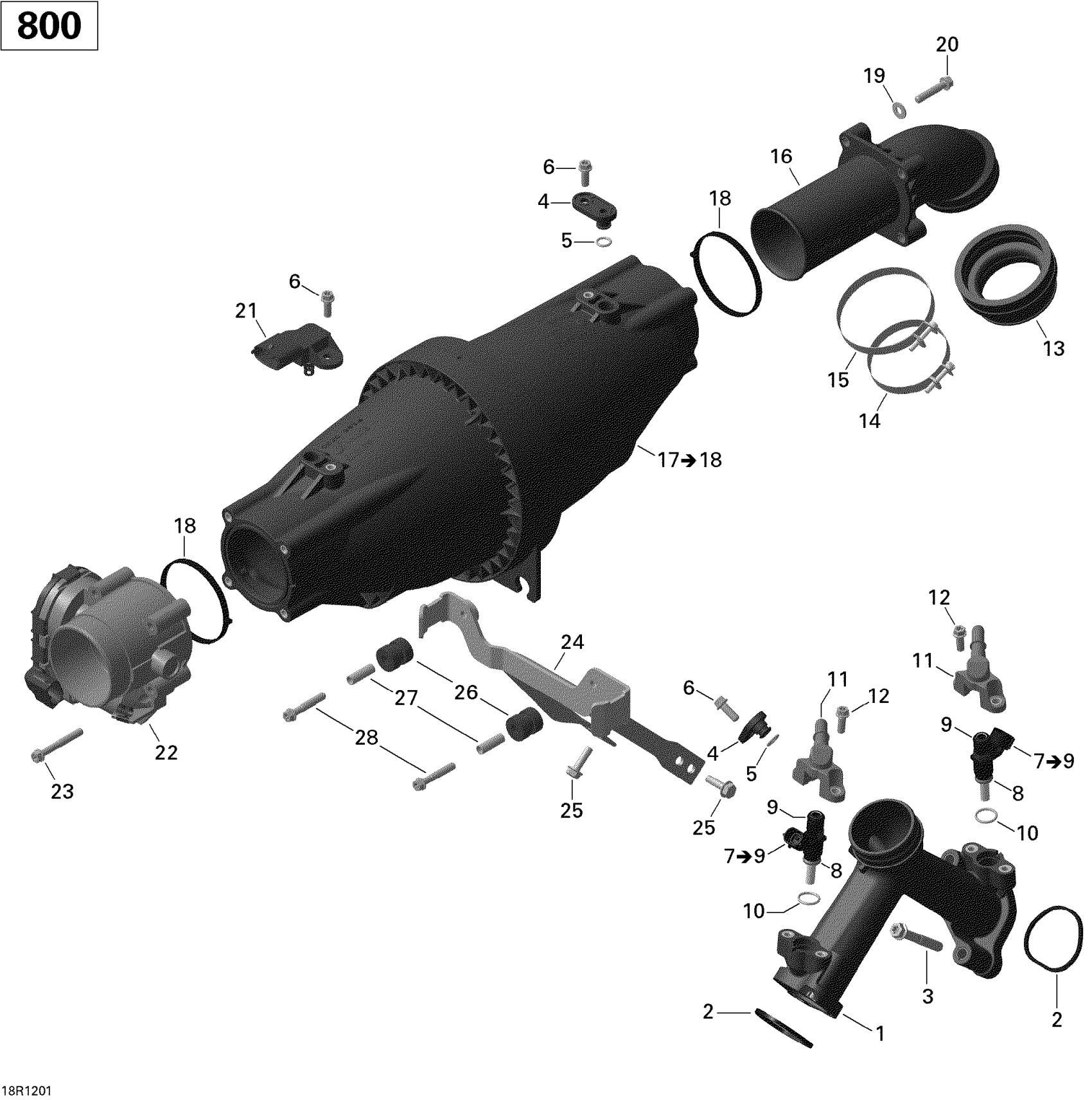

Can-Am Commander STD, XT, 800R EFI, 2012 02- Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$139.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Cover

420460980

$2.68

5

O-Ring

420230461

$2.29

6

Hex. Flange Screw M6 X 12

420440147

$2.00

7

Injection Valve Ass'y | Includes 17 to 19

420874889

$153.49

8

O-Ring

420431890

$7.49

9

O-Ring

420631220

$14.28

10

O-Ring

420631296

$0.76

11

Fuel Rail

420874901

$24.49

12

Torx Flange Screw M6 X 16

420641048

$2.96

13

Intake Neck

420267045

$12.12

14

Clamp

420251480

$14.28

15

Clamp

420251209

$8.57

16

Air Inlet Manifold

420667522

$31.99

17

Air Inlet Manifold Ass'y | Includes 16 to 17

420667526

$184.99

18

Gasket | Included in gasket kit

420431900

$5.40

19

Flat Washer

224061121

$0.53

20

Torx Flange Screw M6 X 30

420440647

$2.00

21

Pressure And Temperature Sensor

707000995

$88.99

22

Throttle Body Socket Ass'y

420892596

$466.49

23

Torx Flange Screw M6 X 45

420641198

$4.12

24

Support

420651521

$81.99

25

Hex.Screw M6 X 20

420441311

$5.18

26

Rubber Bracket

420660090

$4.12

27

Spacer

420847971

$7.41

28

Hex. Screw M6 X 35

420441457

$3.91
