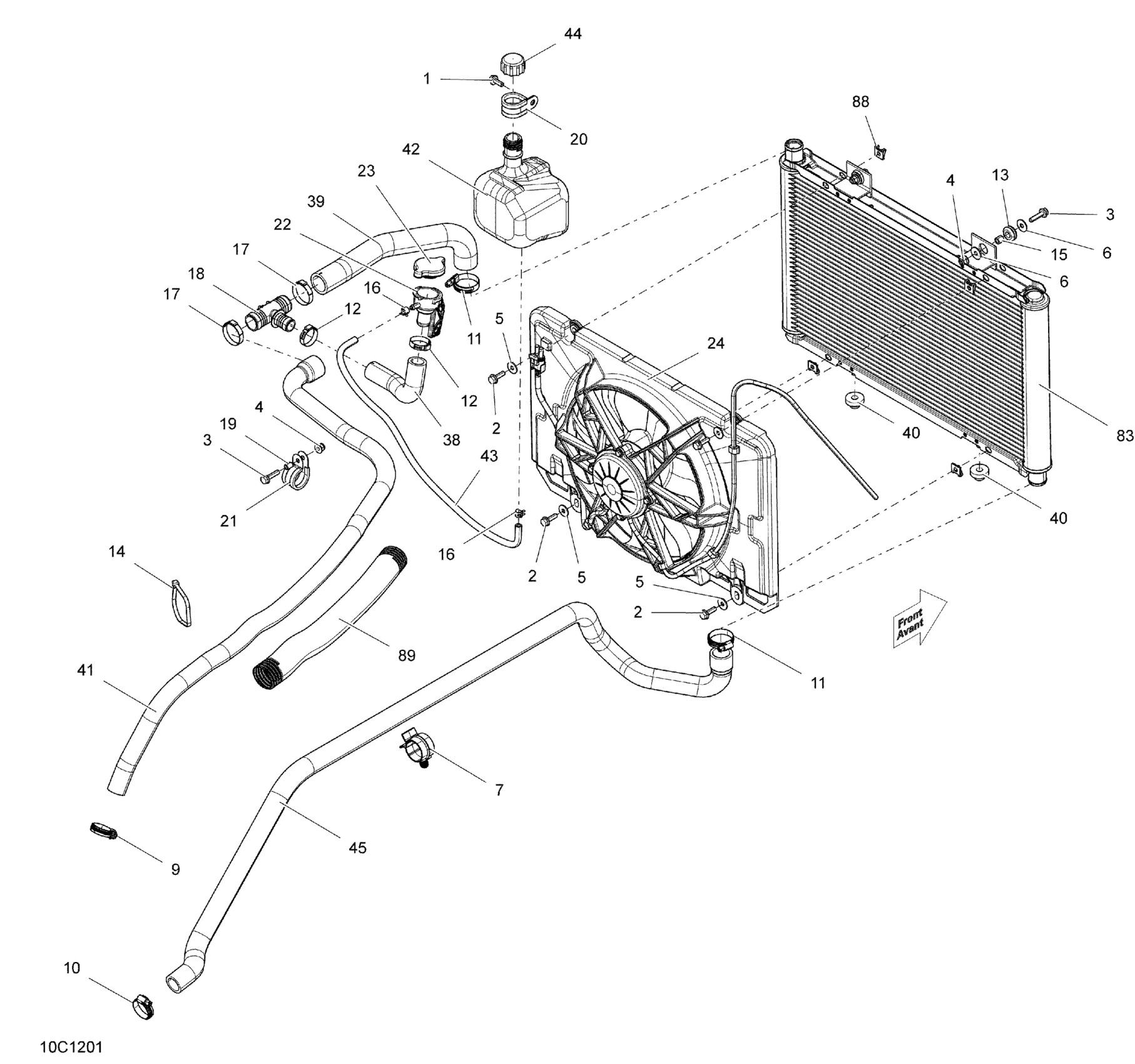

Can-Am Commander STD, XT, 800R EFI, 2012 01- Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Flange Elastic Nut M6

233261434

$4.44

5

Flat Washer 6 mm

234062410

$0.77

6

Flat Washer

250200082

$0.42

7

Retainer

275500590

$9.69

9

Norma Gear Clamp

293650098

$4.44

10

Norma Gear Clamp

293650098

$4.44

11

Norma Gear Clamp

293650098

$4.44

12

Crimp Clamp

293650099

$4.29

13

Grommet

709000582

$4.69

14

Tie Wrap 368 mm

293750008

$1.04

15

Bushing

293900105

$7.65

16

Spring Clamp

414554800

$0.88

17

Gear Clamp

509000162

$7.29

18

T-Fitting

509000372

$10.33

19

Spacer

707000065

$6.67

20

Hose Anchor

709200036

$11.12

21

Hose Anchor

709200036

$11.12

22

Filler Neck

709200179

$18.49

23

Radiator Pressure Cap

709200207

$25.49

24

Fan Ass'y

709200566

$279.99

38

Filler Neck Hose

709200264

$11.07

39

Radiator Outlet Hose

709200265

$12.63

40

Grommet

709200285

$9.69

41

Intermediate Hose

709200295

$41.49

42

Coolant Tank Ass'y

709200624

$27.99

43

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

44

Tank Cap

709200587

$5.40

45

Radiator Inlet Hose

709200355

$65.49

83

Radiator

709200395

$370.99

88

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

89

Tubing 35 MM 1000MM Long

219704428

$10.99
