Description

Price

1

Socket Head Screw M4 X 25

205042560

$2.22

2

Elastic Stop Nut M4

232541484

$0.74

3

Elastic Flange Nut M5

233251494

$2.11

4

Flat Washer 4 mm, Stainless

234042600

$1.15

5

Panel Nut M5 X 0.8

250000958

$4.23

6

Torx Screw M5 X 20

250000724

$1.69

7

Torx Screw K50 X 16

250000720

$1.69

8

Torx Screw M4 X 16

250000750

$1.68

9

Extruded Panel Nut M4 X 0.7

250100143

$8.49

10

Extruded Panel Nut M4 X 0.7

250100143

$8.49

11

Washer M5

250200025

$0.74

18

Pop Rivet 3/16"

293150103

$0.55

31

Tie Wrap 368 mm

293750008

$1.04

42

Grommet

414036300

$2.79

43

Clip

414227300

$1.67

47

Fastners Kit

705005826

Unavailable

49

Retainer Velcro Perforated

705013420

$43.99

56

Hose Anchor

709200036

$11.12

106

FRONT SPEAKER - Call your local BRP dealership | RTS , RT Audio/Techno

710001403

Unavailable

398

EUROPE MAP FOR G.P.S. - Call your local BRP dealership | LTD, 800R Europe

710001806

Unavailable

402

AIR COMPRESSOR HARNESS - Call your local BRP dealership | Includes 1 to T1

710002542

Unavailable

1890

GPS | LTD North America

710002544

Unavailable

3402

GPS Support | LTD Model

710003210

$214.99

5496

Calibrated Compressor Module

710002947

$499.99

8079

Amplifier

710005442

$462.49

8564

Radio Interface

710002549

$391.99

8572

USB Extension

710002551

$139.99

8573

IPOD EXTENSION - Call your local BRP dealership

710002550

Unavailable

8583

WIRING HARNESS_RADIO - Call your local BRP dealership | Includes 1 to RR

710004064

Unavailable

8586

Amplifier Support

710002556

$114.99

8589

Wiring Harness Ass'y

710002625

$1,079.99

8856

SWITCHED ACCESSORY - Call your local BRP dealership

710002684

Unavailable

8858

USB Extension Support

710002731

$18.49

8859

LH FRONT SPEAKER - Call your local BRP dealership

710004300

Unavailable

8860

RH Speaker HSG

705012293

$16.65

8861

Speaker Box Plate

710002789

$15.36

8862

Speaker Cover

710002790

$13.76

8864

Antenna

710002810

$11.63

8865

SPEAKER HARNESS - Call your local BRP dealership | Includes 1 to S+

710002811

Unavailable

8867

Speaker Harness | Includes 1 to S+

710004340

$24.49

8869

Not Available As Spare Part - Friction Washer

Unavailable

8871

Speaker

710002838

$169.49

8876

Not Available As Spare Part - Friction Washer

Unavailable

8877

Speaker Harness

710004341

$104.99

8905

Grommet Boot

710002926

$4.69

8906

M5 Support Plate

710002946

$7.99

8586a

Extruded Panel Nut M4 X 0.7

250100143

$8.49

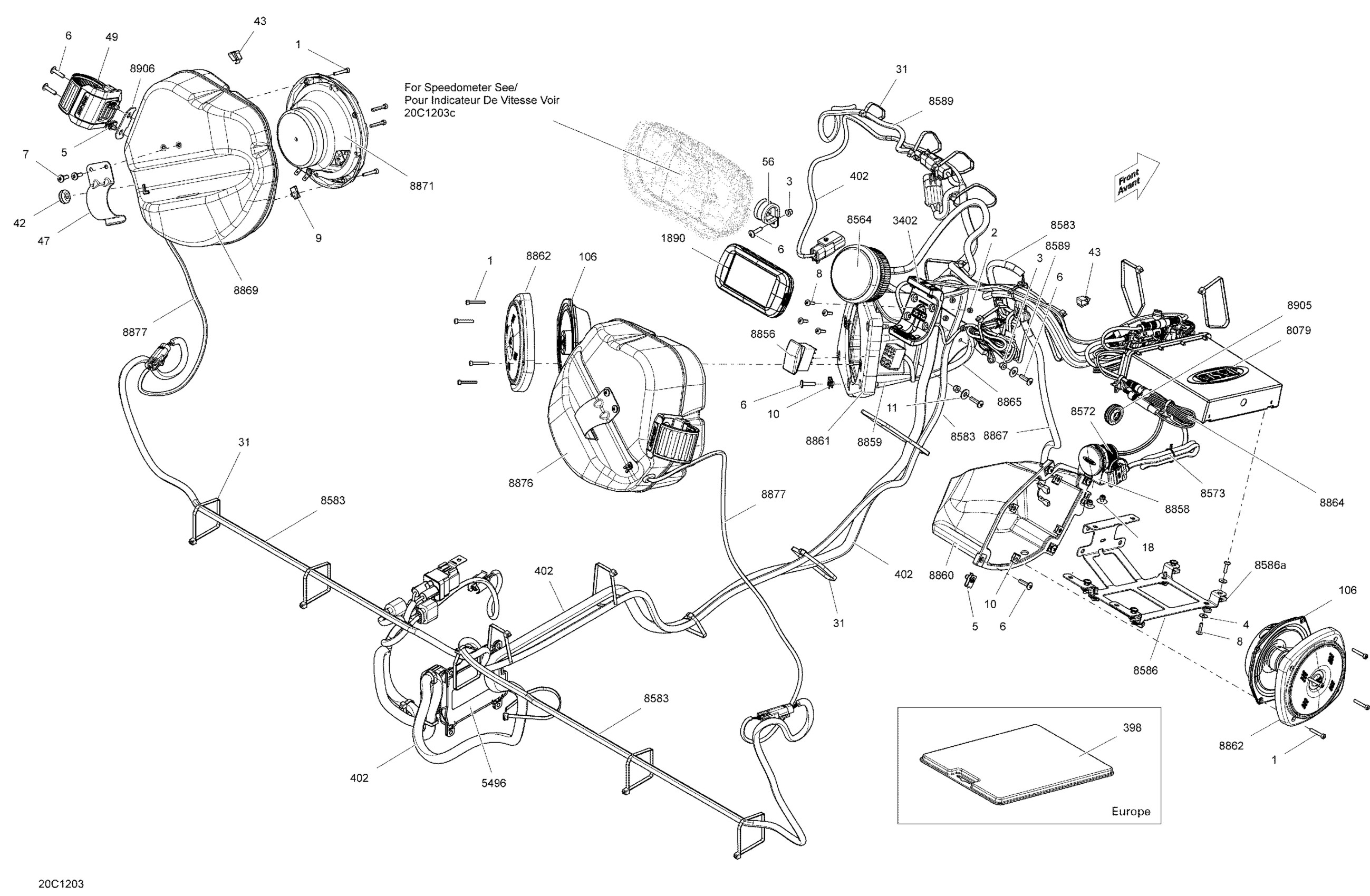

Can-Am Commander LTD, 1000 EFI, 2012 10- Electrical System North America Diagram

Socket Head Screw M4 X 25

Elastic Stop Nut M4

Elastic Flange Nut M5

Flat Washer 4 mm, Stainless

Panel Nut M5 X 0.8

Torx Screw M5 X 20

Torx Screw K50 X 16

Torx Screw M4 X 16

Extruded Panel Nut M4 X 0.7

Extruded Panel Nut M4 X 0.7

Washer M5

Pop Rivet 3/16"

Tie Wrap 368 mm

Grommet

Clip

Fastners Kit

Retainer Velcro Perforated

Hose Anchor

FRONT SPEAKER - Call your local BRP dealership | RTS , RT Audio/Techno

EUROPE MAP FOR G.P.S. - Call your local BRP dealership | LTD, 800R Europe

AIR COMPRESSOR HARNESS - Call your local BRP dealership | Includes 1 to T1

GPS | LTD North America

GPS Support | LTD Model

Calibrated Compressor Module

Amplifier

Radio Interface

USB Extension

IPOD EXTENSION - Call your local BRP dealership

WIRING HARNESS_RADIO - Call your local BRP dealership | Includes 1 to RR

Amplifier Support

Wiring Harness Ass'y

SWITCHED ACCESSORY - Call your local BRP dealership

USB Extension Support

LH FRONT SPEAKER - Call your local BRP dealership

RH Speaker HSG

Speaker Box Plate

Speaker Cover

Antenna

SPEAKER HARNESS - Call your local BRP dealership | Includes 1 to S+

Speaker Harness | Includes 1 to S+

Not Available As Spare Part - Friction Washer

Speaker

Not Available As Spare Part - Friction Washer

Speaker Harness

Grommet Boot

M5 Support Plate

Extruded Panel Nut M4 X 0.7
