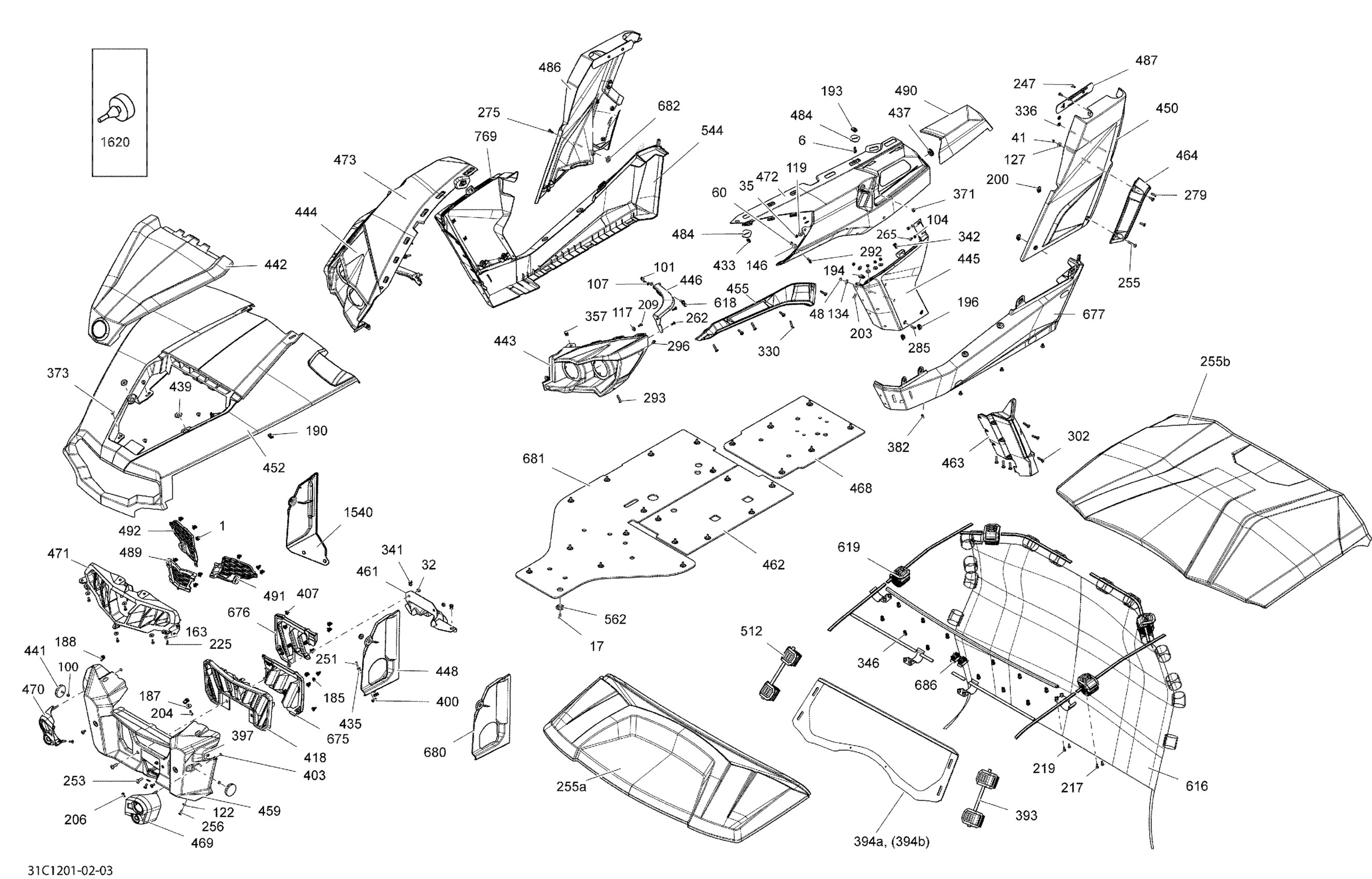

Can-Am Commander LTD, 1000 EFI, 2012 09- Body And Accessories Diagram

#

Description
Price

1

Edge Clip

517302785

$0.88

6

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Hexagonal Head Screw

210262050

$2.11

32

Not Available As Spare Parts

XXX

Unavailable

35

Elastic Stop Nut M6

232561434

$1.99

41

Elastic Stop Nut M6

232561434

$1.99

48

Elastic Stop Nut M6

232561434

$1.99

60

Elastic Stop Nut M6

232561434

$1.99

100

Hex. Flange Elastic Nut M5

233251414

$1.04

101

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

104

Flat Washer M5

234051410

$0.53

107

Stainless Flat Washer M6

234061600

$0.33

117

Stainless Steel Flat Washer

234062670

$2.11

119

Stainless Steel Flat Washer

234062670

$2.11

122

Stainless Steel Flat Washer

234062670

$2.11

127

Stainless Steel Flat Washer

234062670

$2.11

134

Stainless Steel Flat Washer

234062670

$2.11

146

Stainless Steel Flat Washer

234062670

$2.11

163

Stainless Steel Flat Washer

234062670

$2.11

185

Not Available As Spare Parts

XXX

Unavailable

187

Flat Washer 8 mm

234082410

$1.47

188

Panel Nut M6 X 1.0

250100198

$2.11

190

Panel Nut M6 X 1.0

250100198

$2.11

193

Panel Nut M6 X 1.0

250100198

$2.11

194

Panel Nut M6 X 1.0

250100198

$2.11

196

Panel Nut M6 X 1.0

250100198

$2.11

200

Panel Nut M6 X 1.0

250100198

$2.11

203

Torx Screw M6 X 20

250000722

$1.68

204

Torx Screw M6 X 20

250000722

$1.68

206

Torx Screw K50 X 16

250000720

$1.69

209

Torx Screw K50 X 16

250000720

$1.69

217

Torx Screw K50 X 16

250000720

$1.69

219

Torx Screw K50 X 16

250000720

$1.69

225

Torx Screw K50 X 16

250000720

$1.69

247

Torx Screw K50 X 16

250000720

$1.69

251

Torx Screw K50 X 16

250000720

$1.69

253

Not Available As Spare Parts

XXX

Unavailable

255

Torx Screw M6 X 45

250000215

$1.90

256

Torx Screw M6 X 16

250000755

$0.87

262

Truss Head Torx Screw K50 X 20

250000297

$2.11

265

Truss Head Torx Screw K50 X 20

250000297

$2.11

275

Torx Truss Screw M6 X 20

250000488

$2.11

279

Torx Truss Screw M6 X 20

250000488

$2.11

285

Torx Truss Screw M6 X 20

250000350

$5.29

293

Torx Truss Screw M6 X 30

250000843

$2.11

296

Torx Truss Screw M6 X 30

250000843

$2.11

302

Stainless, Torx Screw M6 X 30

250000842

$2.11

330

Stainless, Torx Screw M6 X 30

250000842

$2.11

336

PUSH NUT - Call your local BRP dealership

250100129

Unavailable

341

Not Available As Spare Parts

XXX

Unavailable

342

Tuflok Plastic Rivet

293150230

$1.47

346

Tuflok Plastic Rivet

293150230

$1.47

357

Tuflok Plastic Rivet

293150230

$1.47

371

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

373

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

382

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

393

Gasket, Neoprene 2000Mm Long

219704476

$15.36

397

Threaded Insert M6 X 1.0

250100242

Unavailable

400

Grommet

709000582

$4.69

403

Push Nut

389804300

$0.53

407

Edge Clip

517302785

$0.88

418

Lower Front Facia Protector

705004755

$18.49

433

Edge Clip

517302785

$0.88

435

Knob

517303439

$4.55

437

Grommet

517303756

$4.09

439

Oval Washer

705005156

$4.97

441

Amber Reflector | Except Europe Model

705011222

$14.49

442

REMOVABLE HOOD, BLUE - Call your local BRP dealership

705005290

Unavailable

442

MAGNESIUM REMOVABLE HOOD - Call your local BRP dealership

705007076

Unavailable

443

LH Front Facia

705002885

$74.99

444

RH Front Facia

705002886

$74.99

445

LH. PANEL - Call your local BRP dealership

705006380

Unavailable

445

LEFT PANEL - Call your local BRP dealership

705009306

Unavailable

446

Facia Front Support

705002891

$38.99

448

Not Available As Spare Parts

XXX

Unavailable

450

LH REAR LATERAL PANNEL, BLUE - Call your local BRP dealership

705005296

Unavailable

450

MAGNESIUM LH REAR LATERAL PANNEL - Call your local BRP dealership

705006126

Unavailable

452

Fixed Hood, Blue

705005288

Unavailable

452

HOOD - Call your local BRP dealership

705009304

Unavailable

455

FENDER EXTENSION KIT - Call your local BRP dealership | Includes 80 to 87

715002451

Unavailable

459

Black Front Facia

705008689

$104.99

461

Not Available As Spare Parts

XXX

Unavailable

462

LH PROTECTOR PLATE - Call your local BRP dealership

705007883

Unavailable

463

FENDER EXTENSION KIT - Call your local BRP dealership | Includes 80 to 87

715002451

Unavailable

464

FENDER EXTENSION KIT - Call your local BRP dealership | Includes 80 to 87

715002451

Unavailable

468

Rear Protector Plate

705007227

$31.99

469

LH FLASHER CAP - Call your local BRP dealership | Europe

705008676

Unavailable

470

RH Flasher Cap | Europe

705003628

$12.69

471

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

472

FRONT FENDER - Call your local BRP dealership

705006770

Unavailable

472

FRONT FENDER - Call your local BRP dealership

705009299

Unavailable

473

RH. FR. FENDER - Call your local BRP dealership

705006771

Unavailable

473

FRONT FENDER - Call your local BRP dealership

705009301

Unavailable

484

Support Plate

705003841

$0.99

486

SIDE PANEL - Call your local BRP dealership

705006125

Unavailable

486

Panel_Body Rear R B-321

705011700

$539.99

487

Support Plate

705004261

$13.49

489

Center Upper Facia Protector

705004336

$4.09

490

CVT INLET COVER, BLUE - Call your local BRP dealership

705005286

Unavailable

490

CVT INLET COVE - Call your local BRP dealership

705009302

Unavailable

491

LH Upper Facia Protector

705004350

$4.09

492

RH Upper Facia Protector

705004351

$4.09

512

Retainer Velcro Perforated

705013420

$43.99

544

RH Middle Side Pannel | XT

705006994

$73.99

562

Cup | Package Hunter

705007171

$7.89

616

Rear Net Wind Deflector Ass'y

715001193

$95.49

618

Hex. Flange Screw M6 X 16

207661644

$0.74

619

Retainer Velcro Perforated

705013420

$43.99

675

LH Lower Rear Facia Protector

705004819

$18.49

676

RH Lower Rear Facia Protector

705004820

$18.49

677

LH Middle Side Pannel | XT

705006993

$73.99

680

LH Deflector | XT

705005113

$16.99

681

RH PROTECTOR PLATE - Call your local BRP dealership

705006075

Unavailable

682

Hardened Washer

706200281

$2.85

686

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

769

RH. PANEL - Call your local BRP dealership

705006381

Unavailable

769

MAGNESIUM RH FRONT LATERAL PANNEL - Call your local BRP dealership

705006383

Unavailable

1540

RH Deflector

705002894

$19.99

1620

Rubber Stopper

708000759

$4.19

255a

ROOF VISOR ASS. - Call your local BRP dealership

705005669

Unavailable

255b

MID ROOF KIT - Call your local BRP dealership

705005670

Unavailable

394a

Windshield Half Ass'y

703501024

$399.99

394b

Fastner Kit, LTD

705005657

Unavailable
