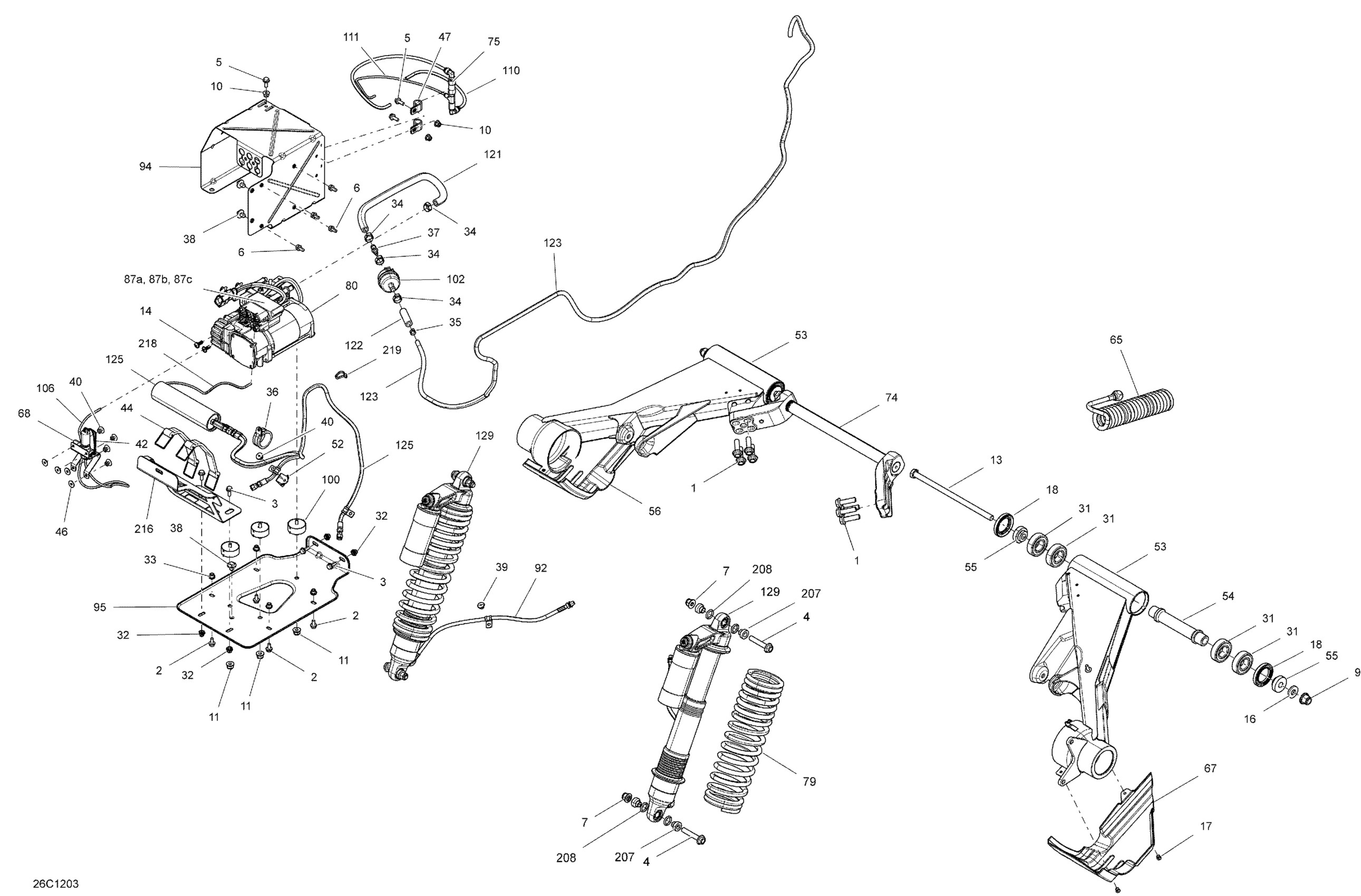

Can-Am Commander LTD, 1000 EFI, 2012 08- Rear Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 35

207503544

$7.31

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

4

Hex. Flange Screw M10 X 55

207605544

$3.38

5

Hex. Flange Screw M6 X 16

207661644

$0.74

6

Hex. Flange Screw M6 X 12

210261250

$1.90

7

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Elastic Flange Nut M12

233221416

$2.85

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Hex. Cap Screw M12 X 241

250001031

$3.81

14

Oval Head Torx Screw K60 X 16

250000546

$2.11

16

Flat Washer M12

250200120

$2.61

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

Seal

293200094

$10.33

31

Ball Bearing

293350115

$12.11

32

Threaded Insert M6 X 1.0

250100242

Unavailable

33

Threaded Insert M6 X 1.0

250100242

Unavailable

34

Crimp Clamp

293650053

$3.09

35

Clamp, Oetiker

293650195

$1.09

36

Hose Retainer

293650218

$9.39

37

Straight Fitting

293710035

$8.89

38

Mount Dart

293730040

$1.04

39

Pop Rivet 3/16"

390406500

$0.88

40

Pop Rivet 3/16"

390406500

$0.88

42

O-Ring

414811400

$7.06

44

Battery Strap

515176044

$18.49

46

Washer

517124300

$0.19

47

Open Clamp

705600040

$13.24

52

Bracket

705601337

$2.69

53

RH Swing Arm

703500965

$190.99

53

LH Swing Arm

706001177

$190.99

54

Bushing

706001529

$34.99

55

Spacer

706001350

$10.49

56

LH Joint Protector

706000630

$8.85

65

Auxiliary Hose

706000808

$104.99

67

RH Joint Protector

706000814

$8.85

68

BRACKET ASS'Y - Call your local BRP dealership

706001873

Unavailable

74

Sway Bar Ass'y | STD, XT

706001500

$185.49

75

PRESSURE DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001144

Unavailable

79

BLACK REAR SPRING - Call your local BRP dealership

706001040

Unavailable

80

COMPRESSOR - Call your local BRP dealership

706001100

Unavailable

92

Rear Hose Ass'y

706002299

$83.99

94

UPPER SUPPORT - Call your local BRP dealership

706001120

Unavailable

95

LOWER SUPPORT - Call your local BRP dealership

706001121

Unavailable

100

RUBBER MOUNT - Call your local BRP dealership

706001127

Unavailable

102

Air Filter

706001141

$33.99

106

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

110

HOSE, POLYURETHANE 6 MM - Call your local BRP dealership

706001145

$11.49

111

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

121

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

122

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

123

Polyurethane Hose 10000Mm Long

219704410

$56.99

125

Rear Shock Distributor

706001751

$299.99

129

Rear Shock Ass'y

706001039

$849.99

207

Interior Bushing | OUT XTP

715500361

$33.99

208

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

216

TANK BRACKET - Call your local BRP dealership

706201524

Unavailable

218

HOSE 4.0MM - Call your local BRP dealership

706001874

$11.49

219

Tie Wrap 142 mm

293750002

$1.25

87a

Solenoid Valve

706001104

$963.99

87b

Pressure Connector 4mm

715900198

$11.00

87c

PRESSURE CONNECTOR 6MM - Call your local BRP dealership

715900199

Unavailable
