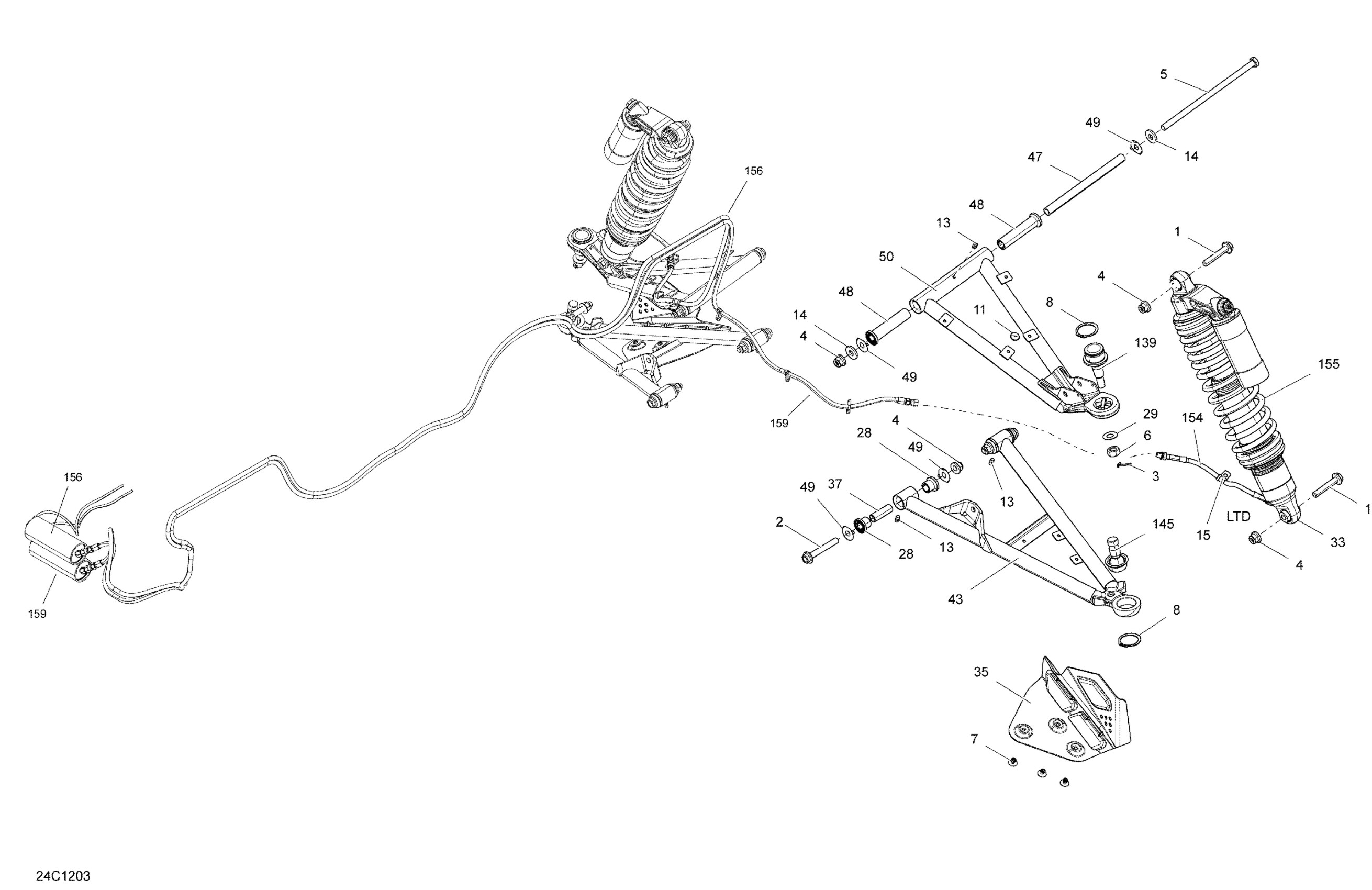

Can-Am Commander LTD, 1000 EFI, 2012 07- Front Suspension Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605544

$3.38

2

Hex. Flange Screw M10 X 70

207607046

$2.96

3

Cotter Pin

211400017

$0.33

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Cap Screw M10 X 225

250001032

$12.64

6

Nut M12

250100099

$2.09

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Circlip

293370035

$2.64

9

Tie Wrap 142 mm

293750002

$1.25

11

Pop Rivet 3/16"

390406500

$0.88

13

Grease Fitting

408200700

$3.49

14

Washer

503190439

$5.93

15

Clamp

293650256

$5.49

28

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

29

Hardened Washer

706200281

$2.85

33

Front Shock

706201364

$869.99

35

RH Protector

706201670

$17.54

35

LH Protector

706201669

$17.54

37

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

43

RH Lower Suspension Arm

706200744

$190.99

43

LH Lower Suspension Arm

706200742

$190.99

47

Bushing

706202445

$14.30

48

Cushion

706201062

$2.30

49

Wear Plate

706201063

$0.95

50

Suspension Upper Arm

706200796

$190.99

139

Ball Joint

706202044

$35.99

145

Ball Joint

706202507

$61.99

154

Front Hose Ass'y

706202444

$83.99

154

RH FRONT HOSE ASSEMBLY - Call your local BRP dealership

706201470

Unavailable

155

BLACK SPRING - Call your local BRP dealership

706201473

Unavailable

156

LH Hose Ass'y

706201997

$174.99

159

RH Hose Ass'y

706201999

$174.99
